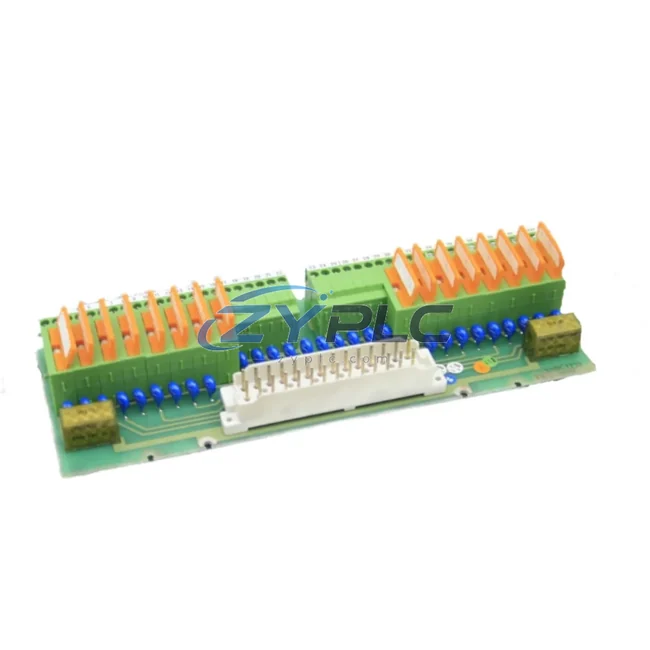

ABB DSTD131 57160001-HU Connection Unit for Advant OCS Systems

ABB DSTD131 57160001-HU: Industrial Data Link for Advant OCS Smart Factory Connectivity

The ABB DSTD131 57160001-HU is a high-performance Connection Unit engineered for the ABB Advant OCS Distributed Control System platform. Designed to serve as a critical node in the industrial data chain, this module bridges field-level devices — including sensors, actuators, and remote I/O stations — with upper-level control and supervisory systems. In modern smart factory environments where data continuity, protocol consistency, and network uptime are non-negotiable, the DSTD131 57160001-HU delivers the reliable communication backbone that production lines depend on.

From signal acquisition at the field layer to real-time data transmission across the plant network, this connection unit ensures that every data packet — whether originating from a pressure transmitter, a flow sensor, or a motor drive — reaches the PLC controller and SCADA system with minimal latency and zero data loss. Its architecture supports seamless integration within the Advant OCS ecosystem, making it an indispensable component for facilities running ABB’s distributed automation infrastructure.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated Advant OCS architecture, the DSTD131 57160001-HU operates at the heart of the communication hierarchy. At the field level, process signals are collected by distributed I/O modules such as the ABB DSDI110A digital input module and the ABB DSDO110A digital output module, which feed real-time status data upward through the system bus. The DSTD131 57160001-HU acts as the communication gateway that aggregates these signals and routes them to the ABB AC450 Controller — the central processing unit responsible for executing control logic and issuing command outputs back to field devices.

For analog process variables — such as temperature, pressure, and flow — the ABB DSAI130A analog input module captures 4–20 mA signals from field transmitters and forwards them through the backplane bus managed by the DSTD131 57160001-HU. This ensures that the ABB Advant Station 500 Series HMI receives accurate, time-stamped process values for operator visualization and alarm management. When a process deviation is detected, the alarm signal propagates from the field device through the connection unit to the SCADA layer within milliseconds, enabling rapid operator response and minimizing unplanned downtime.

At the network layer, the DSTD131 57160001-HU interfaces with the ABB Masterbus 300 communication backbone, which interconnects multiple controller nodes across the plant. This bus architecture allows the ABB MOD 300 SCADA Gateway to poll real-time data from all connected controllers simultaneously, supporting plant-wide process transparency and centralized data logging. For facilities integrating third-party systems, the connection unit’s serial communication port can be configured to interface with Modbus RTU or PROFIBUS DP protocol converters, enabling cross-platform data exchange without requiring hardware replacement.

Drive-level integration is equally seamless. Variable frequency drives such as the ABB ACS800 Series can be networked into the Advant OCS architecture via the DSTD131 57160001-HU, allowing the SCADA system to monitor motor speed, torque, and fault status in real time. This level of drive visibility is essential for predictive maintenance programs, where early detection of motor anomalies can prevent costly production stoppages. The connection unit’s cyclic data exchange capability ensures that drive parameters are continuously updated in the controller database, supporting both closed-loop control and remote diagnostic functions.

For remote site monitoring, the DSTD131 57160001-HU supports integration with edge gateway devices that aggregate plant data and transmit it to cloud-based or enterprise MES/ERP platforms. This positions the module as a foundational component in Industrial IoT (IIoT) architectures, where legacy DCS systems must coexist with modern data infrastructure without compromising real-time control performance.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A plant running ABB Advant OCS controllers alongside newer PROFIBUS or Ethernet-based devices faces the risk of data silos — where critical process information is trapped within isolated subsystems and cannot be accessed by the central SCADA or MES platform. The DSTD131 57160001-HU directly addresses this challenge by providing a standardized communication interface that bridges the Advant OCS backplane with external network segments.

Protocol unification is achieved through the module’s support for ABB’s proprietary Masterbus 300 and Advant Fieldbus 100 communication standards, which are fully compatible with the broader ABB Advant ecosystem. For sites requiring integration with non-ABB systems, the serial communication port enables connection to protocol converters that translate between Advant OCS and open standards such as Modbus TCP, PROFIBUS DP, or OPC DA/UA. This eliminates the need for costly system replacements and allows existing DCS infrastructure to be extended incrementally as production requirements evolve.

Remote monitoring and diagnostics are further enhanced by the DSTD131 57160001-HU’s ability to maintain continuous communication with the SCADA layer even during partial network disruptions. The module’s fault detection and reporting capabilities ensure that communication errors are immediately flagged in the operator interface, allowing maintenance teams to isolate and resolve network issues before they escalate into production losses. Production line transparency — a key requirement for lean manufacturing and OEE optimization — is achieved through the module’s support for high-frequency data polling, which keeps the SCADA historian updated with sub-second process snapshots.

System scalability is built into the Advant OCS architecture by design. As production capacity expands, additional I/O modules, controller nodes, and network segments can be integrated into the existing bus structure without disrupting ongoing operations. The DSTD131 57160001-HU supports this expansion by providing the communication capacity needed to accommodate growing data volumes, ensuring that the control system remains responsive and reliable as the plant scales.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB DSTD131 57160001-HU support?
The DSTD131 57160001-HU is designed for the ABB Advant OCS platform and natively supports ABB Masterbus 300 and Advant Fieldbus 100 protocols. It can also interface with external protocol converters to enable connectivity with Modbus RTU, PROFIBUS DP, and OPC-compatible systems, making it suitable for hybrid automation environments where multiple communication standards coexist.

Q2: How does this module ensure network stability in continuous process environments?
The DSTD131 57160001-HU is engineered for 24/7 industrial operation, with robust hardware design that tolerates the electrical noise, temperature variations, and vibration typical of process plant environments. Its cyclic communication architecture maintains a consistent data exchange schedule between field devices and the controller, minimizing the risk of communication timeouts or data loss during sustained production runs.

Q3: Can the DSTD131 57160001-HU be integrated into an existing SCADA or HMI system?
Yes. The module is fully compatible with ABB’s Advant Station 500 Series HMI and MOD 300 SCADA platforms. For third-party SCADA systems, integration is achievable through OPC server software or protocol gateway devices that translate Advant OCS data into standard formats such as OPC DA, OPC UA, or Modbus TCP, enabling seamless data flow to supervisory platforms from vendors including Wonderware, Ignition, and Siemens WinCC.

Q4: What quality assurance and warranty coverage is provided with this unit?
Every ABB DSTD131 57160001-HU supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, backplane bus compatibility, and signal transmission performance. All units are covered by a warranty terms confirmed during quotation from the date of shipment. Availability is confirmed via RFQ for shipment arranged after confirmation, with global logistics support to minimize lead times for urgent maintenance and replacement requirements.

—
