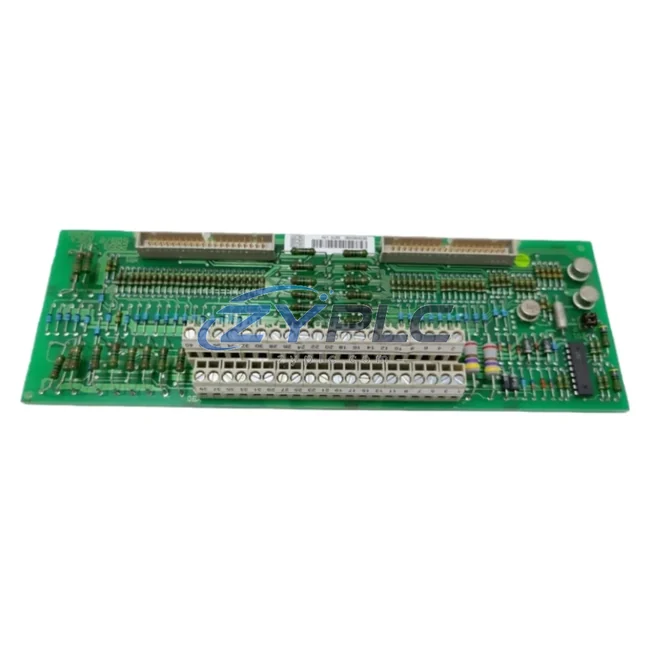

ABB DSTD180 57160001-HE Connection Unit Advant OCS

ABB DSTD180 57160001-HE Connection Unit for Advant OCS Automation

The ABB DSTD180 (57160001-HE) is a high-efficiency connection unit module engineered for the Advant OCS distributed control platform. Designed to serve as a critical signal interface node within energy-conscious industrial automation architectures, the DSTD180 enables precise, low-loss signal routing between field devices and the central control system — directly contributing to reduced energy overhead, improved equipment utilization, and optimized production line throughput.

In modern manufacturing environments where energy costs and equipment uptime are primary KPIs, every component in the control chain matters. The DSTD180 is not simply a passive connection module; it is an active participant in the energy efficiency loop. By ensuring clean, reliable signal transmission between sensors, actuators, and the Advant OCS controller, it eliminates signal degradation that can cause erroneous drive commands, unnecessary motor restarts, and wasted electrical cycles.

Product Specification Table

System Compatibility and Application

The DSTD180 57160001-HE is designed to operate at the heart of an industrial control architecture. In a typical Advant OCS deployment, the DSTD180 interfaces directly with the DSBC 172 bus connection unit and the DSAI 130 analog input module, forming a tightly coupled signal acquisition chain. Accurate analog signal capture at this stage is essential — any noise or drift here propagates downstream, causing the ABB ACS800 or ACS550 variable frequency drives to respond to false load signals, resulting in unnecessary speed adjustments and wasted motor energy.

On the digital output side, the DSTD180 coordinates with the DSDO 115 digital output module to issue precise switching commands to contactors and motor starters. This precision switching eliminates the micro-cycling that degrades motor insulation and inflates operating load over time. When paired with the DSDP 140 pulse counter module, the system gains the ability to track energy pulses from utility meters, enabling real-time operating load monitoring at the machine level — a prerequisite for ISO 50001 maintenance planning compliance.

For process lines using the ABB AC 450 controller as the central processing unit, the DSTD180 serves as the field-side termination point for all critical process signals. The DSCS 140 communication supervisor module manages data exchange across the AF 100 Advant Fieldbus, ensuring that energy data collected by the DSTD180 reaches the SCADA layer with minimal latency. This low-latency feedback loop is what enables predictive maintenance planning — operators can identify energy anomalies before they escalate into equipment failures or production stoppages.

In servo-driven applications, the DSTD180 works alongside the DSQC 503 I/O unit to synchronize position feedback signals with the drive control loop, ensuring that servo motors operate at their optimal efficiency point rather than hunting for position under excessive current draw. This integration is particularly valuable in high-cycle assembly lines where servo operating load accounts for a significant share of total facility power demand.

Maintenance and Replacement Notes

Consider a continuous process plant running three-phase induction motors controlled via ABB ACS800 drives. Without a reliable connection unit like the DSTD180, analog feedback signals from current transformers and pressure transmitters are susceptible to ground loops and EMI-induced noise. This noise causes the drive’s PID controller to oscillate, increasing motor current draw by 5–15% above the process setpoint. Over a 24/7 production schedule, this translates directly into measurable unplanned downtime and accelerated motor winding degradation.

With the DSTD180 57160001-HE properly installed and calibrated within the Advant OCS subrack, signal integrity is maintained across the full operating temperature range. The drive receives clean, stable process variable feedback, allowing it to maintain optimal slip frequency and minimize reactive power consumption. On a 75 kW motor running at 85% load, even a 5% reduction in unnecessary current draw represents approximately 3.2 kW of recovered power — or roughly 28,000 kWh per year per motor.

Beyond operational stability, the DSTD180 contributes to production line rhythm optimization. In batch manufacturing, the precision of start/stop sequencing directly affects cycle time consistency. Erratic signal transmission causes timing jitter in conveyor drives, filling stations, and robotic pick-and-place units. The DSTD180 eliminates this jitter by providing a stable, low-impedance signal path, enabling tighter synchronization between the PLC scan cycle and the physical process — reducing inter-batch dead time and improving overall equipment effectiveness (OEE).

From a maintenance perspective, the DSTD180’s modular design within the Advant OCS subrack allows for hot-swap replacement without full system shutdown in supported configurations. This capability reduces planned maintenance windows and eliminates the unplanned downtime associated with full-line restarts. All units supplied by ZYPLC undergo pre-shipment functional testing, including signal continuity verification, isolation resistance measurement, and bus communication handshake testing, ensuring that every DSTD180 arrives ready for immediate installation.

Product Sourcing FAQ

Q1: How does the DSTD180 57160001-HE contribute to measurable operational stability in a motor control application?
The DSTD180 ensures high-fidelity signal transmission between field sensors and the Advant OCS controller. Clean process variable signals allow variable frequency drives such as the ABB ACS800 to maintain precise speed and torque control, eliminating the overcurrent conditions caused by noisy or drifting feedback signals. In practice, this can help restore stable operation when a compatible replacement is required.

Q2: Is the DSTD180 57160001-HE compatible with modern ABB control systems, or is it limited to legacy Advant OCS installations?
The DSTD180 is natively designed for the Advant OCS platform, including the AC 450 controller family and AF 100 fieldbus. While it is a legacy-generation module, it remains fully compatible with existing Advant OCS subracks and can be integrated into hybrid architectures where Advant OCS coexists with newer ABB 800xA system segments via gateway modules. For full 800xA migration, we recommend consulting our technical team for a compatibility assessment.

Q3: What is the recommended replacement or upgrade path if the DSTD180 is no longer available?
For direct replacement, the DSTD180 57160001-HE should be substituted with an identical part number to maintain subrack compatibility. If the broader Advant OCS system is being migrated, the functional equivalent in the ABB System 800xA architecture is the S800 I/O module family, specifically the AI810 analog input module for signal acquisition tasks. ZYPLC supports RFQ sourcing for both legacy and current-generation ABB I/O modules to support phased migration projects.

Q4: What testing and warranty coverage does ZYPLC provide for the DSTD180 57160001-HE?
Every DSTD180 unit shipped by ZYPLC undergoes a multi-point pre-shipment test protocol covering signal channel continuity, bus communication verification, isolation resistance (≥10 MΩ at 500 VDC), and thermal cycling validation. All units are covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Expedited replacement is available for critical production applications.
