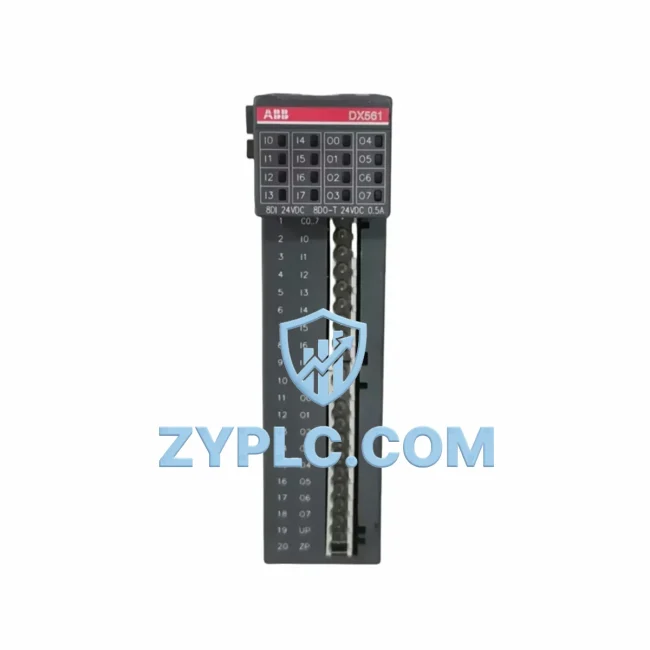

ABB DX561-A1 1TNE968902R2301 PROFINET Gateway for ACS800 Systems

ABB DX561-A1 1TNE968902R2301 PROFINET Gateway for ACS800 Systems: Industrial Data Link for Smart Factory Connectivity

The ABB DX561-A1 (part number 1TNE968902R2301) is a dedicated PROFINET communication gateway engineered for seamless integration of ABB ACS800 series variable frequency drives into modern industrial Ethernet networks. As manufacturing environments evolve toward fully connected smart factory architectures, the DX561-A1 serves as a critical data bridge — translating drive-level signals into structured PROFINET IO packets that flow reliably to PLC controllers, SCADA platforms, and HMI systems in real time.

Designed to mount directly into the ACS800 drive’s option slot, the DX561-A1 eliminates the need for external protocol converters or additional wiring infrastructure. Once installed, it enables the host PLC — such as a Siemens S7-300, S7-400, or S7-1500 — to read and write drive parameters, monitor operational status, issue start/stop commands, and receive fault diagnostics over a standard PROFINET IO network. This tight integration reduces commissioning time, simplifies network topology, and ensures deterministic communication latency suitable for motion-critical and process-critical applications.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the DX561-A1 sits at the intersection of field-level drive control and plant-level data management. At the field layer, the ACS800 drive — equipped with the DX561-A1 — receives speed references and torque commands from a Siemens S7-1500 PLC via PROFINET IO cyclic data exchange. The PLC’s PROFINET controller scans the drive’s process data image every 4 ms, ensuring near-real-time closed-loop control of conveyor motors, pump stations, or compressor systems.

Upstream from the PLC, a SCADA server running WinCC or iFIX collects aggregated drive data — including output frequency, motor current, DC bus voltage, and active fault codes — via OPC-UA or Modbus TCP gateways. In installations where legacy fieldbus devices coexist with PROFINET segments, an ABB FPNO-21 PROFINET adapter or an FENA-21 Ethernet multi-protocol module may be deployed on newer ACS880 or ACS580 drives within the same network, allowing a unified PROFINET backbone to serve mixed drive generations without separate communication infrastructure.

For remote I/O expansion, Siemens ET 200SP or ET 200MP distributed I/O stations connect to the same PROFINET ring alongside the DX561-A1-equipped ACS800 drives, feeding digital and analog sensor signals — from pressure transmitters, flow meters, and temperature sensors — into the PLC’s data table. This consolidated data stream then feeds the plant’s MES layer, where production KPIs, energy consumption metrics, and predictive maintenance alerts are generated automatically.

In installations requiring drive parameter archiving or remote firmware management, an ABB CDP312R control panel or a PC-based DriveWindow Light tool communicates with the ACS800 over the drive’s local panel bus, while the DX561-A1 simultaneously maintains the PROFINET link — both channels operating independently without mutual interference. For edge computing scenarios, an industrial edge gateway aggregates PROFINET data from multiple DX561-A1 nodes and pushes structured JSON payloads to cloud-based analytics platforms, enabling fleet-wide drive health monitoring and anomaly detection without disrupting real-time control loops.

Where network redundancy is required, the DX561-A1’s dual RJ45 ports support PROFINET media redundancy protocol (MRP), allowing the drive to remain online even if a single cable segment fails — a critical feature for continuous-process industries such as water treatment, oil and gas, and pharmaceutical manufacturing. This topology also supports daisy-chain wiring between multiple ACS800 units, reducing switch port consumption and simplifying cable routing in motor control centers (MCCs).

Solving Data Isolation in Industrial Sites

Many industrial facilities still operate with fragmented communication architectures — ACS800 drives running on legacy DDCS fiber links or proprietary ABB fieldbus protocols, isolated from the plant’s Ethernet backbone. The DX561-A1 directly resolves this data isolation by providing a standards-compliant PROFINET IO interface that any modern PLC or SCADA system can address without custom drivers or middleware.

Protocol unification is the first benefit: instead of maintaining separate communication stacks for DDCS, Modbus RTU, and Ethernet, the engineering team configures a single PROFINET IO device list in TIA Portal, imports the DX561-A1’s GSDML device description file, and assigns IO addresses — a process that typically takes under 30 minutes per drive. This standardization eliminates the protocol translation errors and timing inconsistencies that plague multi-protocol environments.

Production line transparency improves immediately after commissioning. Operators gain live visibility into each ACS800’s running status, fault history, and energy consumption directly from the SCADA HMI, without walking to the drive cabinet. Alarm management becomes proactive: the DX561-A1 maps ACS800 fault words to PROFINET diagnostic alarms, which the PLC can route to the SCADA alarm server and trigger automated responses — such as switching to a standby pump or notifying maintenance via SMS gateway — within one PLC scan cycle.

System expansion is equally straightforward. Adding a new ACS800 drive to an existing PROFINET segment requires only inserting the DX561-A1 into the drive’s option slot, connecting the RJ45 cable, and adding the device to the PLC’s hardware configuration. No additional network switches or protocol converters are needed if the existing PROFINET infrastructure has available bandwidth — which, at 100 Mbps, it almost always does for drive applications.

Every DX561-A1 unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying PROFINET IO communication establishment, cyclic data exchange integrity, and parameter read/write capability before dispatch. Units are shipped with a 12-month warranty covering manufacturing defects and communication failures under normal operating conditions.

Industrial Connectivity FAQ

Q1: What is the typical PROFINET IO cycle time achievable with the DX561-A1 in an ACS800 drive?
The DX561-A1 supports PROFINET IO RT (Real-Time) with configurable send cycles. In most PLC configurations, a 4 ms to 8 ms cycle time is achievable, which is sufficient for speed and torque control of variable frequency drives. For applications requiring sub-millisecond determinism, PROFINET IRT (Isochronous Real-Time) should be evaluated with the specific PLC and switch hardware in use.

Q2: Is the DX561-A1 compatible with PROFINET controllers from vendors other than Siemens?
Yes. The DX561-A1 is a standard PROFINET IO device and is compatible with any PROFINET IO controller that supports the GSDML device description file, including controllers from Rockwell Automation (via PROFINET scanner modules), Beckhoff TwinCAT, Schneider Electric Modicon M580, and other IEC 61158-compliant systems. The GSDML file is available from ABB’s documentation portal.

Q3: How does the DX561-A1 handle network interruptions, and will the ACS800 drive fault on a PROFINET timeout?
The DX561-A1 monitors the PROFINET IO watchdog timer. If communication is lost beyond the configured watchdog timeout (typically 100–500 ms), the drive will respond according to its programmed communication fault action — which can be set to coast stop, ramp stop, or continue at last speed reference, depending on the application’s safety requirements. This behavior is configurable via ACS800 parameter group 98.

Q4: Does ZYPLC provide a warranty and pre-shipment testing for the DX561-A1?
Yes. All DX561-A1 units are tested for PROFINET IO communication functionality before shipment. ZYPLC provides a 12-month warranty on all supplied units. Stock is available for immediate dispatch via DHL or FedEx international express. For volume orders or urgent requirements, contact our team at [email protected] or +86 19859288691.
