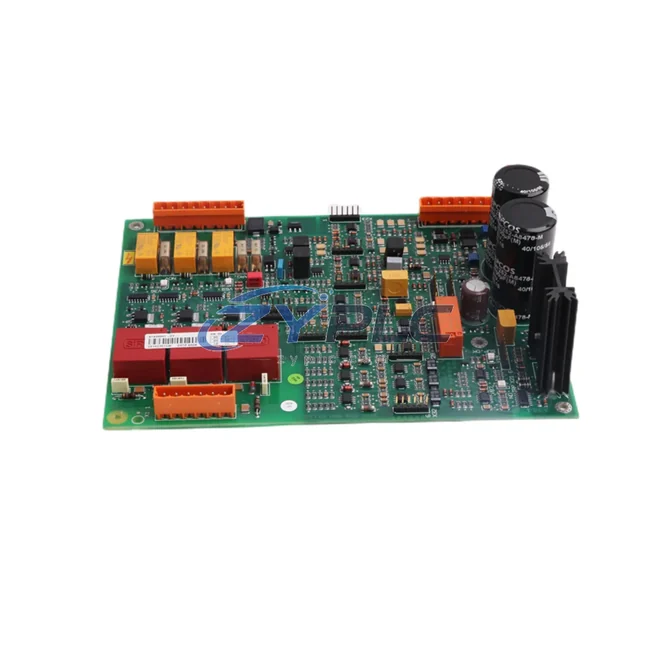

ABB DYTP600A 6143001-ZY Control Board for DYTP

ABB DYTP600A 6143001-ZY Control Board for DYTP Series

The ABB DYTP600A 6143001-ZY is a dedicated control board engineered for seamless integration within ABB’s DYTP series distributed control system (DCS) architecture. Rather than functioning as a standalone component, this board is designed to operate as a cohesive element within a multi-layered automation hierarchy — coordinating signal processing, I/O management, and inter-module communication across the control, field, and network layers of a complete industrial automation system.

In modern industrial environments — spanning power generation, petrochemical processing, water treatment, metallurgy, and advanced manufacturing — control system reliability is non-negotiable. The DYTP600A 6143001-ZY addresses this requirement by providing stable, deterministic control logic execution that integrates directly with ABB’s established DYTP platform ecosystem. Its architecture supports both primary and redundant control configurations, making it a critical component in high-availability system designs where unplanned downtime carries significant operational and financial consequences.

From an engineering perspective, the board’s value lies not only in its individual specifications but in its role as a system-consistent replacement or expansion module. When deployed alongside compatible DYTP series components — including CPU modules, power supply units, I/O expansion racks, and communication gateways — the DYTP600A 6143001-ZY maintains the signal integrity and timing synchronization that the overall control architecture depends upon. This system integration capability ensures that system engineers can expand or maintain their DCS infrastructure without introducing compatibility risks or requiring full platform migration.

Supply chain continuity is equally important in long-lifecycle industrial projects. ZYPLC maintains availability subject to RFQ confirmation of the DYTP600A 6143001-ZY with full warranty terms confirmed during quotation coverage, supporting both emergency replacement scenarios and planned maintenance cycles. Each unit is functionally tested prior to dispatch, ensuring that field engineers receive a board that is ready for immediate installation and commissioning.

Product Specification Table

System Compatibility Notes

The DYTP600A 6143001-ZY achieves its full operational value when deployed within a coordinated DYTP system architecture. At the control layer, it works in conjunction with the ABB DYTP CPU module to manage program execution and real-time process data handling. The board interfaces directly with the DYTP series backplane chassis, which provides the physical and electrical backbone for all installed modules, ensuring low-latency inter-module communication and synchronized clock distribution.

Power integrity is maintained through the DYTP series 24VDC power supply module, which delivers regulated voltage to the control board and adjacent I/O modules. For applications requiring high availability, the system supports a redundant power supply configuration, eliminating single points of failure at the power layer. This is particularly relevant in continuous process industries where control system interruption is not operationally acceptable.

At the I/O layer, the DYTP600A 6143001-ZY coordinates with DYTP analog input modules and DYTP digital output modules to acquire field signals and issue control commands to actuators and drives. Signal conditioning and isolation are handled at the module level, ensuring that field-side electrical noise does not propagate into the control board’s processing environment.

Network connectivity is extended through the ABB DYTP PROFIBUS communication gateway, enabling the control board to participate in plant-wide SCADA and DCS networks. For human-machine interface integration, the system is compatible with ABB Panel 800 series HMI terminals, providing operators with real-time process visualization and alarm management capabilities. At the execution layer, the control board’s output signals drive ABB ACS series variable frequency drives and field-mounted actuators, completing the closed-loop control architecture from sensor to final control element.

Terminal modules and marshalling components — including ABB DYTP terminal base units — provide the physical wiring interface between the control board’s I/O channels and field cable terminations, simplifying installation and enabling module hot-swap capability in supported configurations.

Industrial Application Notes

Power Generation & Utilities: In thermal and hydroelectric power plants, the DYTP600A 6143001-ZY serves as a control layer component within turbine governor systems and auxiliary equipment control panels. Its deterministic execution timing supports the precise control loop performance required for generator synchronization and load management applications.

Petrochemical & Refinery Processing: Continuous process plants demand control systems with proven long-term reliability and straightforward maintenance pathways. The DYTP600A 6143001-ZY’s compatibility with the broader DYTP platform means that maintenance engineers can replace or expand control boards without requiring full system reconfiguration, reducing planned maintenance windows and minimizing production impact.

Water Treatment & Municipal Infrastructure: Water treatment facilities operating across multiple pump stations and treatment stages benefit from the DYTP platform’s distributed architecture. The DYTP600A 6143001-ZY enables consistent control logic deployment across geographically distributed control panels, with centralized monitoring via SCADA integration through the PROFIBUS communication gateway.

Metallurgy & Mining: In ore processing and smelting operations, control boards must withstand demanding electrical environments characterized by high-power motor switching and electromagnetic interference. The DYTP600A 6143001-ZY’s industrial-grade design and compatibility with ABB’s proven DCS platform make it a reliable choice for these high-demand applications.

Packaging & Discrete Manufacturing: High-speed packaging lines require control systems capable of coordinating multiple axes of motion and I/O-intensive process steps. The DYTP600A 6143001-ZY’s integration with DYTP I/O expansion modules and VFD drive interfaces supports the multi-zone control architectures typical of modern packaging machinery.

Product Compatibility FAQ

Q1: Is the DYTP600A 6143001-ZY compatible with existing DYTP series racks and backplanes already installed in my facility?
A: Yes. The DYTP600A 6143001-ZY is designed as a system-consistent module for the DYTP series platform. It is compatible with standard DYTP chassis backplanes and communicates via the native DYTP inter-module bus protocol. Before installation, verify the firmware revision of your existing CPU module to confirm compatibility with the control board revision being supplied. ZYPLC can provide revision documentation upon request to support pre-installation engineering review.

Q2: Can this control board be used in a redundant controller configuration, and what additional components are required?
A: The DYTP600A 6143001-ZY supports deployment within DYTP redundant controller architectures. A redundant configuration typically requires a matched pair of control boards, a redundancy synchronization module, and a compatible DYTP chassis with dual-slot redundancy support. The redundant power supply module should also be included to eliminate power-layer single points of failure. ZYPLC supports RFQ sourcing for associated DYTP redundancy components and can assist with bill-of-materials verification for your specific architecture.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims?
A: The warranty terms confirmed during quotation covers functional defects in the DYTP600A 6143001-ZY control board under normal operating conditions consistent with ABB’s published environmental and electrical specifications. Each unit undergoes functional testing prior to dispatch. In the event of a warranty claim, contact ZYPLC directly via the details below to initiate the return and replacement process. Warranty coverage begins from the date of shipment and applies to the original purchaser.
