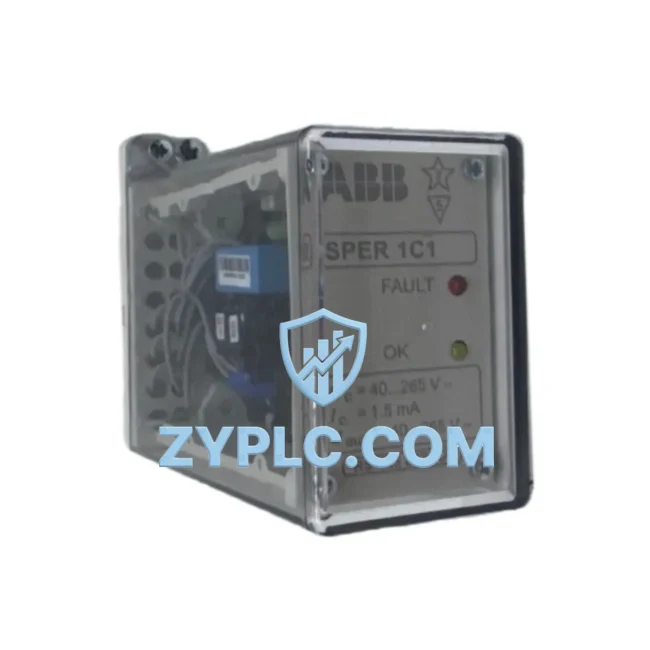

ABB EB143887SPER-1C1-AA Industrial Network Interface for SPER Systems

ABB EB143887SPER-1C1-AA Industrial Network Interface for SPER Systems: Bridging the Industrial Data Link in Smart Factory Environments

The ABB EB143887SPER-1C1-AA is a high-performance Trip Circuit Supervision Relay from ABB’s SPER Series, engineered to serve as a critical node in modern industrial communication architectures. As manufacturing facilities accelerate their transition toward Industry 4.0, the demand for reliable, protocol-agnostic devices that can bridge field-level protection equipment with supervisory control systems has never been greater. The EB143887SPER-1C1-AA answers this demand with robust support for IEC 61850 and Modbus RTU communication protocols, enabling seamless data exchange between protection relays, PLC controllers, SCADA platforms, and HMI systems across the plant network.

Designed for demanding substation and industrial power distribution environments, this relay continuously monitors the integrity of trip circuits — a function that is indispensable for ensuring that circuit breakers respond correctly during fault conditions. When integrated into a broader automation network, the EB143887SPER-1C1-AA transmits real-time supervision status, alarm signals, and diagnostic data upstream to control systems, eliminating the data isolation that has historically plagued legacy protection infrastructure.

Network Communication Table

Connected Automation Data Flow

In a fully connected smart factory or substation automation system, the ABB EB143887SPER-1C1-AA occupies a pivotal position in the data flow chain — from field-level signal acquisition all the way to enterprise-level monitoring and reporting. Understanding this data flow is essential for system integrators and automation engineers who need to design resilient, transparent, and scalable industrial networks.

At the field level, the EB143887SPER-1C1-AA continuously monitors the trip coil circuit of associated ABB SACE Emax2 or Tmax XT series circuit breakers. Any interruption or degradation in the trip circuit — whether caused by a blown fuse, broken wire, or coil failure — is immediately detected and flagged. This signal is then encoded and transmitted via Modbus RTU over RS-485 to upstream ABB AC500 PLC controllers or third-party PLCs operating on the same serial bus. The AC500’s communication modules, such as the CM579-ETHCAT or CM577-ETH, can further relay this data onto an Industrial Ethernet backbone.

For facilities running IEC 61850-compliant substation automation, the EB143887SPER-1C1-AA communicates via GOOSE messaging and MMS services directly with ABB MicroSCADA Pro or ABB Ability™ System 800xA SCADA platforms. This enables operators to view real-time trip circuit health on HMI dashboards — such as those running on ABB CP600 or CP635 operator panels — without any manual polling or intermediate data conversion steps.

In parallel, remote I/O modules such as the ABB CI854 or compatible Wago 750-352 Modbus TCP gateways can aggregate supervision data from multiple EB143887SPER-1C1-AA relays distributed across a switchgear lineup, forwarding consolidated status reports to the plant’s SCADA historian or MES layer. Variable frequency drives (VFDs) such as the ABB ACS880 series, which protect critical motor loads downstream of the supervised breakers, can also be integrated into the same network segment, allowing a single operator workstation to monitor both protection relay status and drive performance simultaneously.

Edge computing gateways — for example, the ABB Edge Controller EC2059 or a compatible Moxa MGate MB3170 Modbus-to-Ethernet gateway — can be deployed to pre-process alarm data locally, reducing latency and ensuring that critical trip circuit fault notifications reach the control room within milliseconds, even under high network load conditions. This architecture supports the real-time diagnostic and remote monitoring requirements of modern smart factory deployments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Older protection relays may speak only proprietary serial protocols, while modern SCADA systems expect IEC 61850 or OPC-UA data streams. The result is data isolation — critical protection status information trapped in field devices, invisible to operators and maintenance teams until a fault has already occurred.

The ABB EB143887SPER-1C1-AA directly addresses this challenge by acting as a protocol gateway at the protection layer. Its native support for both IEC 61850 and Modbus RTU means it can communicate with legacy serial-based control systems and modern Ethernet-based SCADA platforms simultaneously, without requiring additional protocol converters or middleware. This dual-protocol capability is particularly valuable in brownfield installations where new automation layers are being added on top of existing infrastructure.

For production line transparency, the EB143887SPER-1C1-AA enables continuous, automated supervision of trip circuits across an entire switchgear lineup. Rather than relying on periodic manual inspections — which may miss intermittent faults — the relay provides 24/7 automated monitoring with immediate alarm escalation to the SCADA system. Maintenance teams receive actionable alerts with precise fault location data, dramatically reducing mean time to repair (MTTR) and minimizing unplanned downtime.

System scalability is another key advantage. Because the EB143887SPER-1C1-AA communicates over standard industrial protocols, it can be integrated into expanding automation architectures without redesigning the network. Additional relays, I/O modules, or communication gateways can be added to the Modbus RTU bus or IEC 61850 network segment as the facility grows, preserving the existing investment in infrastructure and configuration.

Every unit shipped by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, relay output performance, and protocol configuration. Combined with a 12-month warranty and global express shipping via DHL or FedEx, customers can deploy the EB143887SPER-1C1-AA with confidence in both product quality and supply chain reliability.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB EB143887SPER-1C1-AA support, and how does this affect SCADA integration?
The EB143887SPER-1C1-AA supports IEC 61850 (including GOOSE messaging and MMS) and Modbus RTU. IEC 61850 enables direct integration with modern substation SCADA platforms such as ABB MicroSCADA Pro and System 800xA, while Modbus RTU provides compatibility with a wide range of legacy PLCs and DCS systems. This dual-protocol support eliminates the need for external protocol converters in most integration scenarios.

Q2: How does the relay ensure network stability and minimize communication latency in time-critical protection applications?
The EB143887SPER-1C1-AA uses IEC 61850 GOOSE messaging for time-critical event reporting, which is designed for sub-millisecond latency over Industrial Ethernet. For Modbus RTU applications, the relay’s serial interface supports configurable baud rates and polling intervals to optimize throughput on shared RS-485 bus segments. The device’s deterministic communication behavior ensures that trip circuit fault alarms reach the control system within the response time requirements of IEC 61850-compliant protection schemes.

Q3: Can the EB143887SPER-1C1-AA be integrated into an existing Modbus RTU network alongside other ABB SPER series devices?
Yes. The EB143887SPER-1C1-AA is fully compatible with other devices in the ABB SPER series and can share a Modbus RTU RS-485 bus with multiple relays, I/O modules, and communication gateways. Each device is assigned a unique Modbus slave address, allowing the master PLC or SCADA gateway to poll all devices on the bus independently. This makes it straightforward to expand an existing protection relay network without disrupting current operations.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each EB143887SPER-1C1-AA unit undergoes functional verification including trip circuit supervision output testing, communication protocol handshake verification (IEC 61850 and Modbus RTU), and relay contact integrity checks. Units are shipped with original ABB documentation and packaging via DHL or FedEx Express to ensure safe delivery to global destinations.
