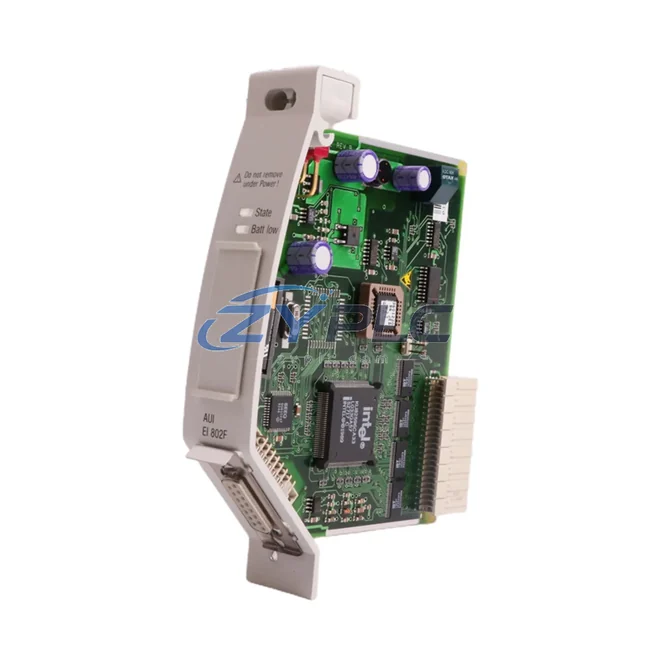

ABB EI802F 3BDH000016R1 Ethernet Module for 800xA

ABB EI802F 3BDH000016R1 Ethernet Module for 800xA: Compatibility and Replacement Notes

The ABB EI802F 3BDH000016R1 is a dedicated Ethernet communication module engineered for seamless integration within ABB’s System 800xA Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, the EI802F 3BDH000016R1 is designed to serve as a critical communication backbone node — bridging the control layer, I/O layer, network layer, and human-machine interface layer within a unified, high-availability automation platform. Its role in the system is to ensure deterministic, low-latency Ethernet connectivity between controllers, remote I/O units, and supervisory systems, making it indispensable for engineers designing scalable, redundant, and maintainable industrial control architectures.

In a fully deployed 800xA system, the EI802F 3BDH000016R1 operates in close coordination with the AC800M controller family — including the PM864A and PM866A process controllers — which serve as the computational core of the control layer. These controllers rely on the Ethernet module to maintain real-time communication with distributed I/O clusters, remote engineering workstations, and OPC-based SCADA platforms. The module’s support for Industrial Ethernet protocols ensures that signal flow between the control layer and the I/O layer remains stable even under high-load conditions, reducing cycle time variability and improving overall system determinism.

At the I/O layer, the EI802F 3BDH000016R1 interfaces with ABB’s S800 I/O modules — such as the AI810, AO810, DI810, and DO810 — mounted on CI854 or CI858 communication interface units. These I/O modules handle analog and digital signal acquisition from field instruments including transmitters, actuators, and valve positioners. The Ethernet module ensures that process data from these field devices is reliably transmitted upstream to the controller and, where applicable, to the 800xA Information Management layer for historian archiving and advanced process analytics.

From a network architecture perspective, the EI802F 3BDH000016R1 supports ring or star Ethernet topologies, enabling engineers to implement Media Redundancy Protocol (MRP) or High-availability Seamless Redundancy (HSR) configurations. This is particularly valuable in applications where network path failure must not interrupt process control — such as in power generation, petrochemical refining, or water treatment facilities. The module’s dual-port Ethernet design allows for seamless failover without packet loss, maintaining system uptime in line with IEC 62439 redundancy standards.

At the power layer, the EI802F 3BDH000016R1 is typically installed within an 800xA controller cabinet alongside the SD802F or SD803F power supply units, which provide regulated 24 VDC to the controller backplane and communication modules. Proper power architecture — including redundant power feeds and UPS integration — ensures that the Ethernet module remains operational during grid disturbances, a critical requirement in continuous process industries such as oil and gas, pulp and paper, and metals processing.

For human-machine interface coordination, the EI802F 3BDH000016R1 enables high-speed data exchange between the 800xA controller network and operator workstations running ABB’s Extended Automation System 800xA HMI software. Operators gain real-time visibility into process variables, alarm states, and control loop performance through graphical displays that are dynamically updated via the Ethernet communication path established by this module. The module’s system integration capability further allows operators to access device-specific documentation, calibration records, and maintenance histories directly from the HMI — a feature that significantly reduces mean time to repair (MTTR) during fault conditions.

In terms of system expandability, the EI802F 3BDH000016R1 supports the addition of remote I/O stations and controller nodes without requiring architectural redesign. Engineers can extend the 800xA network by adding CI854A communication interface units, additional S800 I/O clusters, or even integrating third-party PROFIBUS or FOUNDATION Fieldbus devices through appropriate gateway modules such as the CI840A or CI858. This modular expansion capability makes the EI802F 3BDH000016R1 a long-term investment for facilities planning phased automation upgrades.

From a maintenance and lifecycle perspective, the EI802F 3BDH000016R1 supports hot-swap replacement within the 800xA cabinet, minimizing planned downtime during module exchange. Its compatibility with ABB’s Asset Monitor and System Diagnostics tools allows maintenance teams to perform predictive health checks, firmware version audits, and communication quality assessments without interrupting live process control. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, ensuring that replacement or repair support is available throughout the initial operational period.

Product Specification Table

System Compatibility Notes

A complete 800xA control system built around the EI802F 3BDH000016R1 typically incorporates the following coordinated components across multiple system layers:

At the control layer, the PM864A and PM866A AC800M process controllers serve as the primary execution engines, running IEC 61131-3 control programs and managing real-time process loops. The EI802F 3BDH000016R1 provides these controllers with their primary Ethernet communication path to the rest of the system. For redundant controller configurations, a paired PM866A with a redundant Ethernet module ensures bumpless switchover in the event of a controller fault.

At the I/O layer, CI854A communication interface units connect clusters of AI810 (analog input), AO810V2 (analog output), DI810 (digital input), and DO810 (digital output) S800 I/O modules. These modules acquire and condition signals from field instruments — including pressure transmitters, flow meters, temperature sensors, and control valves — and relay process data through the Ethernet backbone established by the EI802F 3BDH000016R1.

For PROFIBUS-connected field devices, the CI840A PROFIBUS DP communication interface integrates variable-speed drives, intelligent motor controllers, and smart valve positioners into the 800xA network. This allows the EI802F 3BDH000016R1 to serve as the upstream Ethernet gateway for a mixed-protocol I/O architecture, consolidating both Ethernet-native and PROFIBUS-connected devices under a single controller domain.

At the power layer, SD802F power supply units provide stable 24 VDC to the controller backplane, while terminal block assemblies and surge protection modules ensure electrical isolation and transient protection for all communication and I/O circuits within the control cabinet.

At the HMI layer, operator workstations running 800xA Extended Automation HMI software connect to the controller network via the Ethernet path managed by the EI802F 3BDH000016R1, providing operators with real-time process visualization, alarm management, and system integration access to device documentation and maintenance records.

Industrial Application Notes

The ABB EI802F 3BDH000016R1 is deployed across a wide range of process and discrete manufacturing industries where reliable, high-speed Ethernet communication is essential to system performance and safety.

In power generation and grid management applications, the module supports communication between turbine control systems, excitation controllers, and plant-wide SCADA platforms, enabling coordinated load dispatch and fault isolation. Its MRP redundancy capability ensures that a single cable fault does not interrupt critical control loops.

In petrochemical and refinery environments, the EI802F 3BDH000016R1 connects distributed controller nodes across large-scale process units — including distillation columns, heat exchangers, and reactor systems — maintaining real-time communication between field I/O and the central control room under SIL-rated process conditions.

In water and wastewater treatment facilities, the module enables centralized monitoring and control of pump stations, filtration systems, and chemical dosing units distributed across geographically separated sites, with Ethernet ring redundancy ensuring continuous operation even during network maintenance activities.

In metals and mining operations, the EI802F 3BDH000016R1 supports high-availability communication between smelting furnace controllers, conveyor drive systems, and process optimization platforms, where unplanned communication interruptions can result in significant production losses and equipment damage.

In packaging and discrete manufacturing lines, the module integrates 800xA controllers with high-speed I/O clusters and motion control systems, supporting coordinated multi-axis sequencing and real-time quality inspection data acquisition.

Product Compatibility FAQ

Q1: Is the ABB EI802F 3BDH000016R1 compatible with both new 800xA installations and existing AC800M controller upgrades?
Yes. The EI802F 3BDH000016R1 is designed for use within the ABB System 800xA and AC800M controller platform and is compatible with both greenfield installations and brownfield upgrade projects. It can be added to existing controller cabinets alongside PM864A or PM866A controllers without requiring changes to the controller firmware or I/O configuration, provided the system software version supports the module. ZYPLC recommends verifying the 800xA system software version and controller firmware revision before installation to confirm full compatibility.

Q2: Can the EI802F 3BDH000016R1 be configured for network redundancy, and what redundancy protocols does it support?
Yes. The EI802F 3BDH000016R1 supports Media Redundancy Protocol (MRP) for ring topology redundancy and is compatible with High-availability Seamless Redundancy (HSR) configurations in applicable 800xA network designs. In MRP mode, the module can detect a ring break and reconfigure the network path within milliseconds, ensuring that control communication is not interrupted. For critical applications requiring zero-packet-loss failover, HSR configuration is recommended. Network redundancy settings are configured through the 800xA Engineering Workplace during system commissioning.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for installation and commissioning?
All ABB EI802F 3BDH000016R1 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. The warranty covers module replacement or repair at no additional cost within the warranty period. ZYPLC also provides pre-sales technical consultation to assist engineers with system architecture planning, compatibility verification, and spare parts strategy. For installation and commissioning support, our technical team is available via email at plc.sales@zyplc.com or by phone at +86 19859288691.
