ABB EI803F 3BDH000017R1 Ethernet Module – AC500 Series

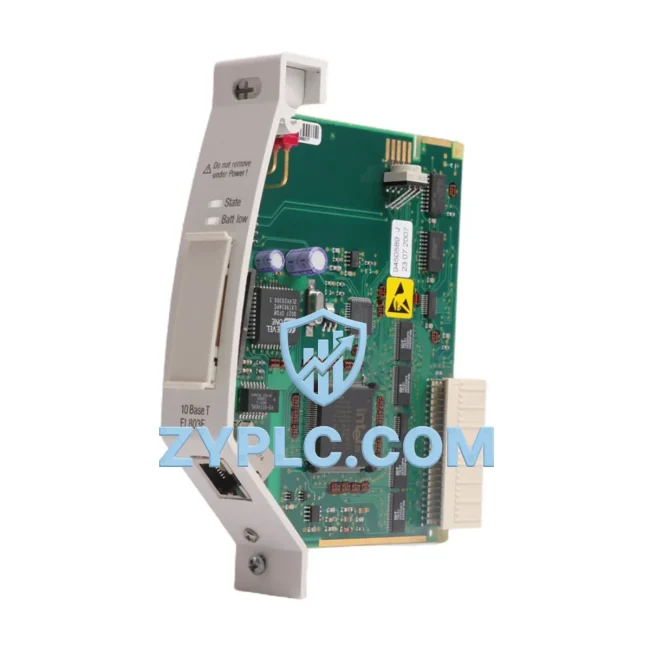

ABB EI803F 3BDH000017R1 Ethernet Module: Industrial Data Link for AC500 Smart Factory Systems

The ABB EI803F (3BDH000017R1) is a high-performance Ethernet Communication Module engineered for the ABB AC500 PLC series, delivering seamless industrial network connectivity across complex automation architectures. Designed to bridge field-level devices with supervisory control systems, the EI803F enables real-time data exchange between PLCs, remote I/O stations, HMI panels, SCADA platforms, and enterprise-level MES/ERP systems — forming the backbone of a transparent, data-driven smart factory.

In modern industrial environments, the integrity and speed of the communication layer directly determines production efficiency. The EI803F addresses this by providing a dedicated Ethernet interface that supports Modbus TCP and PROFINET protocols, allowing the AC500 CPU modules — such as the PM573, PM583, and PM595 — to communicate simultaneously with upstream SCADA servers and downstream field devices without protocol bottlenecks or data latency.

Network Communication Table

Connected Automation Data Flow

The EI803F sits at the heart of the AC500 communication architecture, orchestrating data flow across every layer of the automation pyramid. At the field level, sensors and actuators connected to ABB TU515 and TU516 terminal units feed analog and digital signals into AC500 I/O modules such as the DC532 digital input module and AX522 analog I/O module. These signals are processed by the AC500 CPU — typically a PM573-ETH or PM583-ETH — and the EI803F then transmits structured process data upstream over Ethernet to the plant’s SCADA server or DCS backbone.

In drive integration scenarios, the EI803F enables the AC500 PLC to communicate with ABB ACS880 variable frequency drives via Modbus TCP, allowing closed-loop speed and torque control with millisecond response times. Simultaneously, ABB CP635 HMI panels connected to the same Ethernet segment receive live process values, alarm states, and trend data — giving operators a real-time window into production status without any additional gateway hardware.

For distributed architectures, the EI803F supports remote I/O expansion through ABB S500 remote I/O stations connected over PROFINET, extending the control reach of a single AC500 CPU across large plant floors or multi-zone production lines. Edge computing nodes and industrial IoT gateways can subscribe to process data published by the EI803F, enabling predictive maintenance analytics and OEE dashboards without interrupting the real-time control loop.

When integrated with ABB Ability™ System 800xA or third-party SCADA platforms such as Wonderware InTouch or Ignition, the EI803F acts as the primary data source for historian logging, alarm management, and remote diagnostics — ensuring that every process event is captured, timestamped, and available for analysis.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Legacy serial devices using RS-485 Modbus RTU, newer PROFINET-capable drives, and cloud-connected edge gateways often coexist on the same plant floor, creating data silos that prevent unified monitoring and control.

The ABB EI803F directly addresses this by providing a standardized Ethernet interface that the AC500 PLC uses as a universal translation layer. By consolidating field data into a single Modbus TCP or PROFINET data stream, the EI803F eliminates the need for multiple standalone protocol converters, reducing wiring complexity and potential points of failure.

For remote monitoring requirements, the EI803F enables the AC500 system to be accessed securely over plant-wide Ethernet infrastructure, allowing maintenance engineers to perform remote diagnostics, firmware parameter adjustments, and alarm acknowledgment from a central control room or even off-site — without requiring physical access to the control cabinet. This capability is critical for multi-site manufacturing operations where rapid response to equipment faults directly impacts production uptime.

Production line transparency is further enhanced through the EI803F’s ability to feed real-time OEE data — including cycle times, reject counts, and downtime events — directly into MES platforms. Plant managers gain actionable visibility into bottlenecks and inefficiencies, enabling data-driven decisions that improve throughput and reduce waste.

System scalability is built into the EI803F’s design. As production capacity grows, additional AC500 I/O modules, remote stations, and drive systems can be added to the PROFINET network without architectural redesign, protecting the initial automation investment and supporting phased factory expansion.

All units supplied by ZYPLC undergo pre-shipment functional testing, verifying Ethernet link establishment, protocol handshake integrity, and cyclic data exchange before dispatch. Every ABB EI803F 3BDH000017R1 is backed by a 12-month warranty and supported by in-stock inventory for immediate global shipment via DHL or FedEx.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB EI803F (3BDH000017R1) support?
The EI803F supports Modbus TCP and PROFINET IO as primary industrial Ethernet protocols, making it compatible with a wide range of SCADA systems, HMI panels, and third-party automation equipment. It operates over standard 10/100 Mbps Ethernet infrastructure, ensuring seamless integration into existing plant networks without additional hardware.

Q2: Can the EI803F be used with AC500 CPU modules other than the PM573?
Yes. The EI803F is designed for the ABB AC500 platform and is compatible with multiple CPU variants including the PM573-ETH, PM583-ETH, and PM595. It slots into the AC500 modular backplane and is configured through the Automation Builder engineering software, supporting both standalone and redundant control architectures.

Q3: How does the EI803F ensure network stability in high-noise industrial environments?
The EI803F is built to IEC 61131-2 industrial standards, with EMC-compliant design and full-duplex Ethernet communication that minimizes collision-related latency. When deployed with industrial-grade managed Ethernet switches and shielded Cat6 cabling, the module maintains deterministic communication cycles even in electrically noisy environments typical of motor drives and welding equipment.

Q4: What warranty and testing does ZYPLC provide for the ABB EI803F?
Every ABB EI803F 3BDH000017R1 supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification testing including Ethernet link-up, protocol communication checks, and physical inspection. In-stock units are available for same-day or next-day dispatch with full tracking via international express carriers.

—
