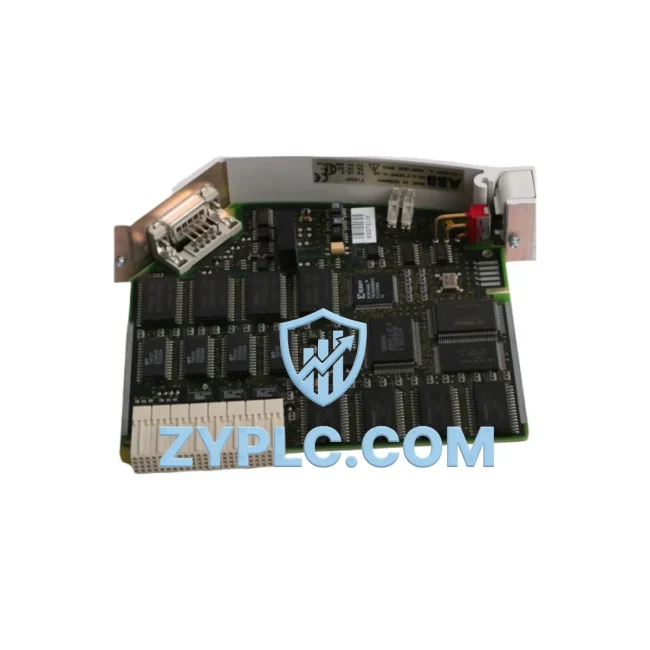

ABB FI830F 3BDH000032R1 Industrial Network Interface for AC800M Systems

ABB FI830F 3BDH000032R1: Industrial Data Link for Smart Factory Connectivity

The ABB FI830F (3BDH000032R1) is a high-performance FOUNDATION Fieldbus (FF) communication interface module engineered for the ABB AC800M Distributed Control System platform. Designed to serve as the critical bridge between field instrumentation and upper-level control networks, the FI830F enables deterministic, real-time data exchange across complex industrial environments — from upstream signal acquisition to SCADA visualization and remote diagnostics. In an era where smart factory integration demands seamless interoperability across heterogeneous systems, the FI830F delivers the protocol intelligence and network stability that modern process automation requires.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the ABB FI830F 3BDH000032R1 sits at the heart of the fieldbus data chain. Field instruments — pressure transmitters, flow meters, temperature sensors, and valve positioners — connect directly to the FF-H1 segments managed by the FI830F. These devices transmit live process values, diagnostic alerts, and device health data upward through the fieldbus backbone to the ABB PM891 controller module, which executes real-time control logic within the AC800M rack.

As process data flows from the field layer, the FI830F interfaces with the ABB CI854AK01 PROFIBUS DP communication interface, enabling cross-protocol data exchange between FOUNDATION Fieldbus field devices and PROFIBUS-connected remote I/O stations such as the ABB S800 I/O modules (AI830A analog input, DI810 digital input, AO820 analog output). This multi-protocol architecture ensures that legacy PROFIBUS assets and modern FF-H1 instruments can coexist within a unified control topology without data loss or latency spikes.

For Ethernet-level integration, the ABB CI860K01 OPC UA gateway module extends the data path from the AC800M backplane to SCADA and MES platforms, enabling the ABB System 800xA historian and visualization layer to receive real-time process values from every FF-H1 field device connected through the FI830F. HMI panels — including ABB CP6000 series operator panels — display live process trends, alarm states, and device diagnostics sourced directly from the fieldbus network.

In remote I/O expansion scenarios, the FI830F works alongside the ABB CI840A redundant communication interface to maintain high-availability data paths between the controller and distributed I/O cabinets. For drive integration, variable frequency drives such as the ABB ACS880 series can be connected via PROFIBUS DP through the CI854AK01, with process feedback looped back through the AC800M to the SCADA layer — creating a closed-loop data chain from motor shaft to control room dashboard.

Edge computing nodes and industrial IoT gateways can tap into this data stream via OPC UA, enabling predictive maintenance algorithms and energy monitoring applications to consume real-time fieldbus data without disrupting the primary control network. The FI830F’s deterministic FF-H1 communication ensures that control-critical data always takes priority, while diagnostic and monitoring traffic is handled asynchronously.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation — legacy HART instruments, PROFIBUS DP networks, Modbus RTU devices, and modern FOUNDATION Fieldbus segments operating in isolation, with no unified data path to the control room or SCADA system. The ABB FI830F 3BDH000032R1 directly addresses this challenge by providing a standards-compliant FF-H1 interface that integrates natively with the AC800M’s multi-protocol communication architecture.

By deploying the FI830F alongside the ABB CI867AK01 HART multiplexer interface, engineers can consolidate HART device diagnostics and FF-H1 process data into a single AC800M controller, eliminating the need for separate HART modems or standalone protocol converters. This unified approach reduces wiring complexity, lowers commissioning time, and provides a single point of truth for all field device data — accessible from the System 800xA SCADA platform or any OPC UA-compatible historian.

For production line transparency, the FI830F enables real-time KPI monitoring at the field device level — valve positions, flow totals, temperature deviations, and instrument health scores — all visible from the HMI or SCADA dashboard without manual data collection. Remote diagnostics capabilities allow maintenance engineers to interrogate FF-H1 field devices from the control room, reducing unplanned downtime and enabling condition-based maintenance strategies. System expansion is straightforward: additional FI830F modules can be added to the AC800M rack as new fieldbus segments are commissioned, supporting phased plant expansions without controller replacement.

Industrial Connectivity FAQ

Q1: What is the communication latency of the ABB FI830F on an FF-H1 segment?
The FOUNDATION Fieldbus H1 protocol operates at 31.25 kbit/s with a deterministic, scheduled communication cycle. Typical cycle times for a fully loaded segment (16 devices) range from 500 ms to 2 seconds depending on the number of published variables and the macrocycle configuration set in the AC800M controller. For time-critical loops, reducing the number of devices per segment or optimizing the LAS schedule can achieve sub-500 ms update rates.

Q2: Is the FI830F compatible with third-party FOUNDATION Fieldbus devices from other manufacturers?
Yes. The ABB FI830F 3BDH000032R1 is fully compliant with the IEC 61158 FOUNDATION Fieldbus standard, ensuring interoperability with FF-H1 certified field devices from Emerson, Yokogawa, Endress+Hauser, Siemens, and other major instrumentation vendors. Device Description (DD) files for third-party instruments can be imported into the AC800M engineering environment to enable full parameter access and diagnostics.

Q3: How does the FI830F maintain network stability in electrically noisy industrial environments?
The FF-H1 physical layer includes built-in noise immunity features including Manchester encoding, differential signal transmission, and segment terminators that suppress reflections and EMI-induced errors. ABB recommends using shielded twisted-pair FF-H1 cable and proper grounding practices per IEC 61158-2. The FI830F’s onboard diagnostics continuously monitor segment voltage, noise levels, and device communication health, with alerts surfaced to the System 800xA alarm management system.

Q4: What warranty and pre-shipment testing does the FI830F include?
Every ABB FI830F 3BDH000032R1 unit supplied by ZYPLC includes a 12-month warranty covering hardware defects and communication failures under normal operating conditions. Each module undergoes functional communication testing prior to shipment, verifying FF-H1 segment initialization, device enumeration, and data publishing. Units are shipped in anti-static packaging with full traceability documentation. DHL and FedEx express delivery options are available for urgent requirements.
