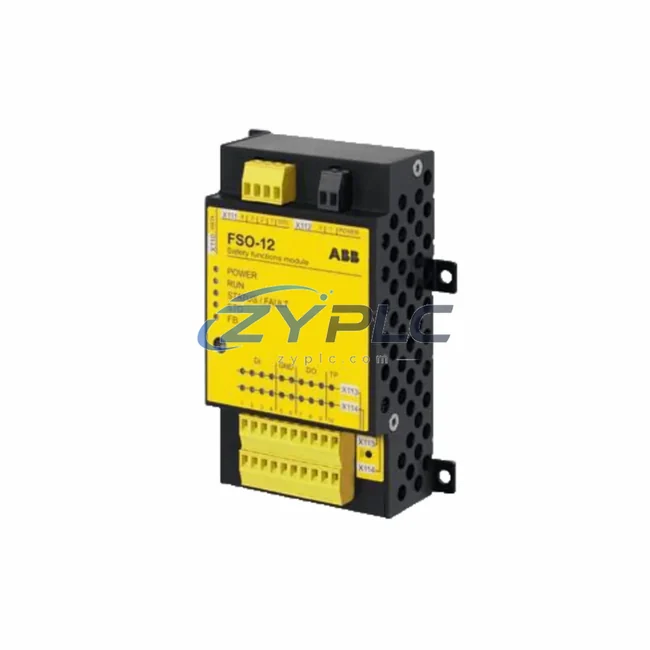

ABB FSO-12 Safety Option for ACS880: Control System Integration and Upstream-Downstream Coordination

In modern industrial automation, functional safety is no longer an isolated layer bolted onto a drive system — it is a deeply integrated architectural element that must coordinate seamlessly across the control hierarchy. The ABB FSO-12 Safety Option Module is engineered precisely for this role within the ACS880 drive platform, delivering certified safety functions that align with the full control system stack: from the safety PLC at the control layer, through the drive’s I/O and communication interfaces, down to the motor and mechanical load at the execution layer.

When specifying a safety architecture for a servo or variable-speed drive application, engineers must consider how the safety module interacts with every adjacent system component. The FSO-12 is not simply a standalone safety card — it is a system integration point that bridges the ABB AC500-S Safety PLC, the ACS880 drive firmware, the PROFIBUS DP or EtherNet/IP communication network, and the physical safety circuit wiring. This system integration ensures that safety commands propagate reliably from the safety controller to the drive, and that diagnostic feedback flows back to the supervisory layer without latency or ambiguity.

Product Specification Table

System Compatibility Notes

A complete ACS880-based safety architecture typically begins at the control layer with an ABB AC500-S Safety PLC (such as the SM560-S or SM560-S-FD-4) executing the safety logic program. The safety PLC communicates safety commands — STO requests, speed limit thresholds, direction restrictions — to the FSO-12 via the drive’s internal communication bus or through hardwired safe I/O terminals. This eliminates the need for external safety relays in many topologies, reducing panel footprint and wiring complexity.

At the power and drive layer, the ACS880 drive itself — whether a single-axis ACS880-01 or a cabinet-mounted ACS880-07 — hosts the FSO-12 in its dedicated option slot. The drive’s RDCO-02 or RDCO-04 communication option module handles the fieldbus connection to the plant network (PROFIBUS DP, PROFINET, or EtherNet/IP), while the FSO-12 manages the safety channel independently, ensuring that safety function execution is never dependent on the availability of the standard fieldbus. This architectural separation is critical for achieving SIL 3 / PLe certification in high-demand applications.

At the I/O layer, the FSO-12’s safe digital inputs connect directly to safety devices such as emergency stop buttons, light curtains, safety door switches, and two-hand control panels. The safe digital outputs can drive external contactors or signal the ACS880 brake chopper unit (NBRA-6xx series) for controlled deceleration during SS1 or SS2 sequences. For multi-axis systems, the FSO-12 can be coordinated with the ACS880 multidrive inverter units sharing a common DC bus, enabling synchronized safe stop across multiple axes without individual contactor interruption.

At the human-machine interface layer, the ABB CP600 HMI panel or a SCADA system connected via OPC-UA can display real-time safety status, active safety function states, and diagnostic fault codes retrieved from the FSO-12 parameter set. This visibility is essential for maintenance engineers performing periodic proof tests required by IEC 62061 for SIL 3 systems. The ABB Drive Composer Pro software provides the parameterization and commissioning environment for the FSO-12, allowing engineers to configure safety function parameters, set speed thresholds, and validate the safety channel response time against the required Performance Level.

For redundant architectures in critical process industries, the FSO-12 can be deployed alongside the ACS880 redundant supply unit and an external safety relay module such as the ABB JSBR4 or Pilz PNOZ series to create a dual-channel safety path. Terminal modules from the ABB SACE Tmax XT series or equivalent DIN-rail terminal blocks complete the panel wiring, ensuring clean signal segregation between the safety circuit and the standard control wiring.

Industrial Application Notes

Manufacturing and Assembly Lines: In automotive body shop or general manufacturing environments, the FSO-12 enables safe speed monitoring (SLS) during robot teaching or manual intervention zones, allowing operators to enter the hazard zone at reduced conveyor or robot speed without a full machine stop. This dramatically improves OEE by eliminating unnecessary production interruptions while maintaining ISO 13849-1 PLe compliance.

Power Generation and Utilities: In power plant auxiliary systems — boiler feed pumps, cooling water pumps, induced draft fans — the FSO-12 provides STO and SS1 functions that comply with IEC 61511 process safety requirements. The module’s ability to execute a controlled ramp-down (SS1) before removing torque prevents water hammer and mechanical shock in pump systems, protecting both equipment and process integrity.

Oil, Gas, and Petrochemical: In ATEX-classified zones where drives control compressors, agitators, or extruder screws, the FSO-12 supports safe direction (SDI) monitoring to prevent reverse rotation that could cause process upsets or equipment damage. The SIL 3 rating satisfies the functional safety requirements of IEC 61508 for safety instrumented systems in these high-consequence environments.

Water and Wastewater Treatment: Pump station and aeration basin applications benefit from the FSO-12’s safe brake control (SBC) output, which coordinates mechanical brake engagement with the drive’s deceleration ramp during emergency stops, preventing uncontrolled shaft rotation in vertical turbine pump installations.

Mining and Minerals Processing: Conveyor drives, crusher drives, and hoist systems in mining applications require robust safety architectures with high diagnostic coverage. The FSO-12’s SIL 3 / PLe rating and its compatibility with the ACS880’s high-torque control firmware make it suitable for these demanding applications, where safe torque off must be executed reliably even under full-load conditions.

Packaging and Material Handling: High-speed packaging lines use the FSO-12’s SLS function to allow safe access to format change zones at reduced belt or cam speed, reducing changeover time while maintaining CE Machinery Directive compliance. The module’s fast response time (STO response < 10 ms) meets the requirements of high-cycle-rate packaging machinery.

Product Compatibility FAQ

Q1: Is the FSO-12 compatible with all ACS880 drive variants, and what firmware version is required for full safety function support?
The FSO-12 is compatible with the ACS880 single drive (ACS880-01, -04, -07) and multidrive inverter units that use the ZCON control unit. Full safety function support — including SLS, SDI, SBC, and SMS — requires ACS880 Primary Control Program version 2. 60 or later. Earlier firmware versions support STO and SS1 only. Before installation, verify the drive firmware version using ABB Drive Composer and update if necessary. The FSO-12 itself is firmware-upgradeable via the Drive Composer interface, ensuring long-term compatibility as ABB releases new safety function packages.

Q2: Can the FSO-12 be used in a dual-channel (redundant) safety architecture to achieve SIL 3 / PLe without an external safety relay?
Yes. The FSO-12 achieves SIL 3 / PLe Category 4 as a single module because it implements a dual-channel internal architecture with cross-monitoring between its two internal processing paths. For STO function, the FSO-12 simultaneously controls both gate driver supply channels within the ACS880 IGBT power stage, providing the required redundancy without an external safety relay. For applications requiring additional redundancy at the system level — such as those with a high proof-test interval — an external safety contactor or a second FSO-12 in a parallel configuration can be added. Our engineering team can assist with architecture validation and SISTEMA calculation files upon request.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for commissioning and long-term maintenance?
All FSO-12 modules supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects, component failures, and functional performance deviations from ABB’s published specifications. Warranty claims are processed with a target replacement or repair turnaround of 5 business days. For commissioning support, our technical team provides remote guidance for FSO-12 parameterization using ABB Drive Composer Pro, including safety function configuration, response time verification, and proof-test procedure documentation. For long-term maintenance, we recommend maintaining a spare FSO-12 module on-site, as the module can be replaced and re-parameterized in under 30 minutes using a saved Drive Composer parameter backup, minimizing unplanned downtime in critical production environments.
