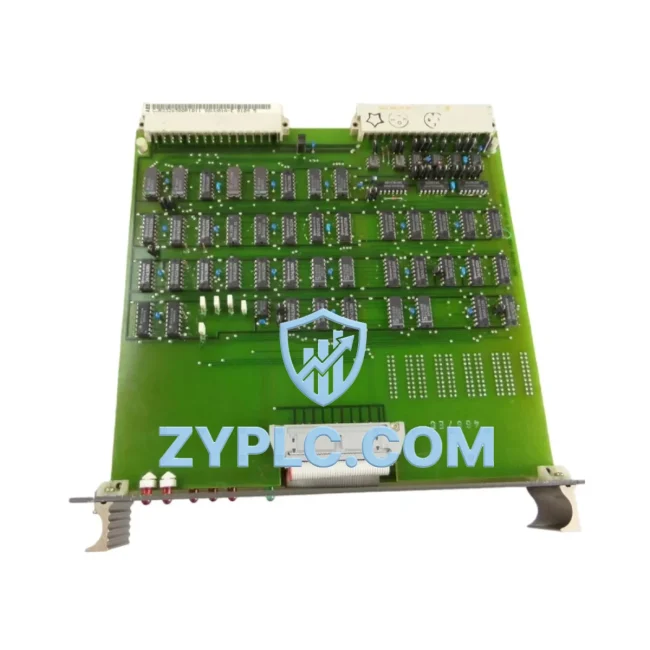

ABB GJR2326500R1011 88VU01B-E Industrial Network Interface for AC500 Systems

ABB GJR2326500R1011 88VU01B-E: Industrial Data Link for AC500 Smart Factory Systems

The ABB GJR2326500R1011 88VU01B-E is a high-performance industrial network interface module engineered for seamless integration within ABB’s AC500 PLC platform. Designed to serve as the critical communication bridge between field-level devices and upper-layer control systems, this module enables real-time data exchange across multi-protocol industrial environments. Whether deployed in discrete manufacturing, process automation, or infrastructure control, the GJR2326500R1011 delivers the network stability and protocol flexibility that modern smart factories demand.

In today’s connected industrial landscape, data isolation between field instruments and supervisory systems remains one of the most persistent challenges. The 88VU01B-E addresses this directly by providing a robust communication backbone that links sensors, actuators, remote I/O modules, and drives to SCADA platforms and HMI terminals — all through a unified, deterministic data pathway. Its architecture supports the full AC500 ecosystem, making it a natural fit for engineers building scalable, future-ready automation networks.

Network Communication Table

Connected Automation Data Flow

The GJR2326500R1011 88VU01B-E sits at the heart of a layered industrial communication architecture. At the field level, it interfaces directly with distributed I/O modules such as the ABB TU515 terminal unit and DC532 digital I/O module, collecting discrete signals from proximity sensors, limit switches, and pressure transmitters. These signals are processed through the AC500 CPU — typically a PM564-T or PM583-ETH — and forwarded upstream via the module’s communication interface.

For drive integration, the 88VU01B-E enables direct parameter exchange with ABB ACS880 variable frequency drives, allowing the PLC to monitor motor speed, torque feedback, and fault status in real time. This closed-loop data path eliminates the need for manual drive interrogation and supports predictive maintenance workflows by feeding drive diagnostics directly into the SCADA historian.

At the network layer, the module bridges field-bus segments to Ethernet-based supervisory systems. When paired with an ABB AC500 eCo PM556-ETH or a dedicated Anybus X-gateway industrial protocol converter, the GJR2326500R1011 enables seamless PROFIBUS-to-EtherNet/IP translation — a critical capability for plants migrating legacy field networks to modern Ethernet architectures without replacing existing field devices.

HMI terminals such as the ABB CP600 panel connect to the AC500 network through this communication backbone, rendering live process data, alarm states, and trend graphs for operators on the plant floor. Simultaneously, SCADA platforms — including Wonderware System Platform or Ignition by Inductive Automation — poll the AC500 CPU via OPC-UA or Modbus TCP, with the GJR2326500R1011 ensuring that field-level data reaches the historian with minimal latency and zero packet loss.

Remote I/O expansion is handled through the AC500’s distributed I/O architecture. The ABB S500 I/O modules — including AI523 analog input and AO523 analog output cards — connect to the main rack via the backplane, with the GJR2326500R1011 managing the communication timing and data integrity across all connected nodes. For remote sites, an industrial edge gateway running IEC 61850 or DNP3 can aggregate data from multiple AC500 stations and forward consolidated datasets to the central SCADA server over a secure WAN connection.

Solving Data Isolation in Industrial Sites

One of the most common pain points in brownfield automation projects is the coexistence of multiple, incompatible communication protocols across different generations of equipment. A plant may have legacy PROFIBUS DP devices on the factory floor, newer EtherNet/IP-capable drives in the motor control center, and a Modbus TCP-based SCADA system in the control room — with no native path for data to flow between them. The ABB GJR2326500R1011 88VU01B-E resolves this by acting as a protocol-aware communication node within the AC500 platform, enabling the CPU to mediate data exchange between heterogeneous network segments without requiring custom middleware or third-party OPC servers.

Data transparency across the production line is another critical requirement for manufacturers pursuing Industry 4.0 objectives. With the GJR2326500R1011 in place, every field device — from a simple inductive sensor to a multi-axis servo drive — becomes a visible, addressable node in the plant’s data architecture. Production KPIs, energy consumption metrics, and equipment health indicators can be surfaced in real time on dashboards, enabling operations teams to make data-driven decisions without waiting for end-of-shift reports.

Remote diagnostics and predictive maintenance are further strengthened by this module’s communication reliability. Maintenance engineers can interrogate field device parameters, review communication error logs, and push firmware updates to remote I/O nodes — all from the SCADA workstation or a secure remote access terminal — without dispatching technicians to the field. This capability is particularly valuable in geographically distributed installations such as water treatment networks, oil and gas pipeline monitoring systems, and multi-site manufacturing operations.

System scalability is built into the AC500 architecture. As production capacity grows, additional I/O modules, communication interfaces, and remote stations can be added to the network without redesigning the existing communication topology. The GJR2326500R1011 supports this expansion natively, ensuring that new nodes are recognized and integrated into the data flow with minimal configuration effort.

Industrial Connectivity FAQ

Q1: What is the communication latency of the GJR2326500R1011 88VU01B-E in a PROFIBUS DP network?
In a standard PROFIBUS DP configuration with the ABB AC500 CPU, cyclic data exchange latency is typically under 5 ms for networks with up to 32 slave devices at 1.5 Mbps baud rate. Actual latency depends on the number of nodes, message length, and CPU scan cycle time. For time-critical applications, the AC500’s deterministic task scheduling ensures that communication cycles are synchronized with the PLC scan cycle.

Q2: Is the GJR2326500R1011 compatible with third-party SCADA systems and HMI platforms?
Yes. When configured within the AC500 platform, the GJR2326500R1011 supports standard industrial protocols including Modbus TCP and PROFIBUS DP, which are natively supported by most SCADA platforms including Wonderware, iFIX, Citect, and Ignition. OPC-UA connectivity is available through the AC500 CPU’s Ethernet port, providing a vendor-neutral data access layer for any OPC-compliant supervisory system.

Q3: How does ZYPLC verify stock and ensure product quality before shipment?
Every unit of the ABB GJR2326500R1011 88VU01B-E in ZYPLC’s inventory undergoes a pre-shipment inspection that includes visual examination, part number verification against ABB’s official documentation, and functional continuity checks. Products are sourced from verified supply channels and stored in ESD-safe, climate-controlled warehousing. Each shipment is accompanied by a test report and is covered by ZYPLC’s 12-month warranty against manufacturing defects.

Q4: Can the GJR2326500R1011 be used to expand an existing AC500 network without replacing the current CPU?
Yes. The GJR2326500R1011 is designed as a plug-in communication module for the AC500 backplane and does not require a CPU replacement. It is compatible with PM5xx series CPUs and can be added to an existing rack to extend the network’s communication capabilities. Configuration is performed through ABB’s Automation Builder engineering software, which provides a graphical interface for mapping I/O data, configuring protocol parameters, and testing communication links before going live.

—
