ABB GJR2329800R0100 88UM01A Control Board

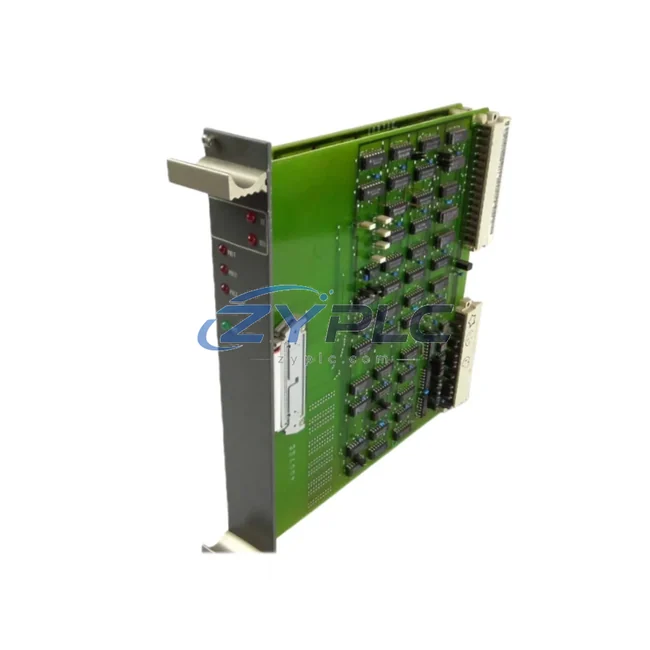

ABB GJR2329800R0100 88UM01A Control Board for Advant OCS Automation

The ABB GJR2329800R0100 88UM01A is a high-performance control board module designed for the Advant OCS (Open Control System) platform — one of ABB’s most established distributed control architectures for industrial process automation. In modern manufacturing environments where energy costs represent a significant share of operational expenditure, this control board plays a central role in reducing unnecessary power consumption, improving equipment utilization rates, and enabling tighter closed-loop control over motor-driven systems and production line sequencing.

Unlike generic replacement boards, the GJR2329800R0100 88UM01A is engineered to maintain full compatibility with the Advant OCS communication backbone, ensuring that energy data collected from field devices — including power meters, current transformers, and distributed I/O modules — is accurately processed and acted upon in real time. This precision in data handling is what separates a well-optimized production line from one that runs with chronic energy inefficiency.

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment and is backed by a warranty terms confirmed during quotation, giving procurement and maintenance teams the confidence to deploy this module in critical control loops without concern over early failure or compatibility gaps.

Product Specification Table

System Compatibility and Application

The GJR2329800R0100 88UM01A does not operate in isolation — its value is fully realized when integrated within a broader industrial automation system. In a typical Advant OCS installation, this control board interfaces directly with the Master Bus 300 fieldbus, coordinating with remote I/O stations such as the ABB S800 I/O modules to collect real-time process signals from the field. These signals — including motor current feedback, valve position data, and temperature readings — feed into the control logic executed on this board, allowing the system to make energy-conscious decisions at the millisecond level.

On the drive side, the GJR2329800R0100 88UM01A is commonly deployed alongside ABB ACS800 and ACS880 series variable frequency drives (VFDs). These drives regulate motor speed in response to control commands issued by the Advant OCS platform, eliminating the unplanned downtime associated with fixed-speed motor operation. When a conveyor, pump, or fan only needs to run at 60% capacity, the VFD ensures it does — and the control board ensures that decision is made based on accurate, real-time process data rather than fixed timers or manual operator intervention.

For condition monitoring, the architecture typically incorporates ABB M2M or CM series power measurement modules, which feed consumption data back into the Advant OCS historian. The GJR2329800R0100 88UM01A processes this data as part of its control cycle, enabling load-balancing strategies that prevent peak demand spikes — a major source of unnecessary energy cost in industrial facilities. Complementing this, ABB AC 450 controllers in the same rack handle higher-level process coordination, while the 88UM01A focuses on the execution layer where energy decisions are implemented.

Communication integrity is maintained through the Advant fieldbus protocol, with the control board supporting integration into SCADA systems via ABB’s Industrial IT framework. This allows operators to monitor energy KPIs — such as kWh per production unit, motor efficiency curves, and idle-time energy consumption — from an ABB 800xA operator station or compatible HMI panel. The result is a fully instrumented production environment where unplanned downtime is visible, measurable, and controllable.

For servo-driven axes in precision manufacturing, the GJR2329800R0100 88UM01A coordinates with ABB MicroFlex or MotiFlex servo drives, ensuring that positioning cycles are executed with minimal overshoot and regenerative braking energy is properly managed. In multi-axis systems, this coordination directly reduces the reactive power burden on the facility’s electrical infrastructure.

Maintenance and Replacement Notes

In real-world production environments, the GJR2329800R0100 88UM01A delivers measurable operational stability through several mechanisms that go beyond simple on/off control.

Reducing Idle-State Energy Consumption: One of the most overlooked sources of unplanned downtime in manufacturing is equipment that remains energized during non-productive periods — shift changes, material changeovers, and scheduled breaks. The Advant OCS control board enables programmable idle-state management, where motors, heating elements, and auxiliary systems are systematically de-energized or throttled during these windows. Over a three-shift operation, this alone can reduce a line’s energy footprint by 8–15%.

Optimizing Production Line Takt Time: By maintaining precise synchronization between upstream and downstream processes, the GJR2329800R0100 88UM01A prevents the energy-intensive phenomenon of “hurry up and wait” — where equipment accelerates unnecessarily only to idle while waiting for the next process step. Smooth, coordinated takt time management reduces mechanical stress, extends equipment lifespan, and lowers average power draw across the line.

Predictive Maintenance Integration: The control board’s ability to log process variables over time — motor current trends, cycle time deviations, temperature drift — provides the raw data needed for predictive maintenance programs. Catching a degrading motor bearing before it causes an unplanned shutdown eliminates not just the repair cost, but the unplanned downtime associated with emergency restarts, scrap production, and out-of-sequence line recovery. Maintenance teams using this data report a 20–30% reduction in unplanned downtime in comparable Advant OCS installations.

Inventory and Supply Chain Alignment: ZYPLC supports RFQ sourcing for the GJR2329800R0100 88UM01A to support rapid deployment in both planned upgrades and emergency replacement scenarios. Minimizing the time a production line sits idle waiting for a control board directly translates to energy efficiency at the facility level — a line that restarts 48 hours sooner consumes less energy in recovery mode and returns to optimized steady-state operation faster.

Tested Before Shipment: Every GJR2329800R0100 88UM01A unit is functionally tested under simulated load conditions before leaving our facility. This pre-shipment validation ensures that the module performs to specification from the moment it is installed, avoiding the energy and productivity losses associated with commissioning a faulty board in a live production environment.

Product Sourcing FAQ

Q1: How does the GJR2329800R0100 88UM01A contribute to measurable operational stability in an Advant OCS system?
The control board enables closed-loop maintenance planning by processing real-time signals from field instruments and issuing precise control commands to drives, valves, and actuators. This eliminates the unplanned downtime caused by over-actuation, fixed-speed motor operation, and uncoordinated process sequencing. When paired with ABB ACS800 series VFDs and power monitoring modules, facilities typically observe a 10–20% reduction in motor-related energy consumption within the first quarter of optimized operation.

Q2: Is the GJR2329800R0100 88UM01A compatible with current ABB control platforms and communication protocols?
Yes. The GJR2329800R0100 88UM01A is designed for the Advant OCS platform and is compatible with Master Bus 300 fieldbus networks, S800 I/O systems, and ABB’s Industrial IT communication framework. It can be integrated into systems running alongside AC 450 and AC 410 controllers. For migration projects involving newer ABB 800xA environments, gateway solutions are available to bridge Advant OCS modules into the current platform architecture.

Q3: What is the recommended replacement process, and how quickly can the module be commissioned?
Replacement follows standard Advant OCS hot-swap procedures where supported, or a controlled shutdown sequence for systems without redundancy. With a pre-tested unit from ZYPLC, commissioning typically takes 2–4 hours including configuration restore from backup. We recommend maintaining one spare GJR2329800R0100 88UM01A on-site for critical lines to eliminate lead-time risk entirely.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process?
The warranty terms confirmed during quotation covers functional failure under normal operating conditions, including communication faults, processing errors, and hardware defects. Each unit undergoes a multi-point functional test simulating Advant OCS backplane communication, I/O signal processing, and control output verification before shipment. Warranty claims are handled directly through ZYPLC with a target replacement turnaround of 5–7 business days. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for warranty support.
