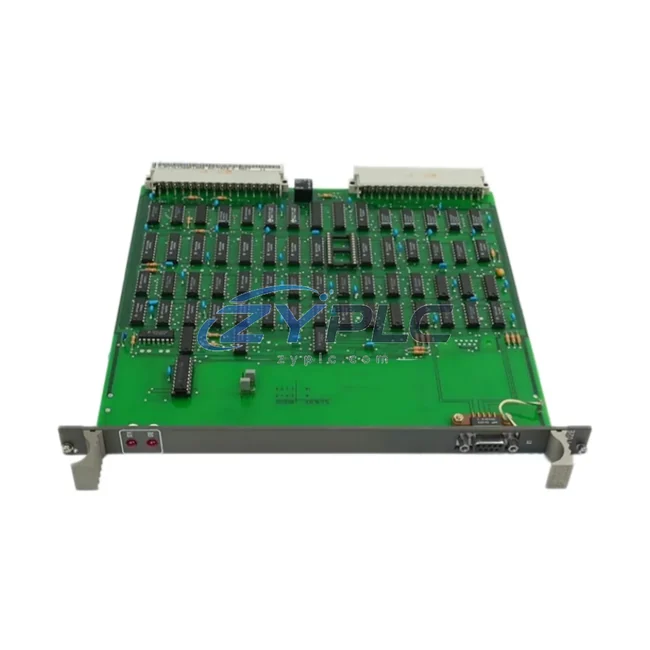

ABB GJR2363900R1000 88VT02A-E Industrial Network Interface for CI830 Systems

ABB GJR2363900R1000 88VT02A-E: Industrial Data Link and Smart Factory Connectivity for CI830 Systems

In modern industrial automation, seamless data flow between field devices, controllers, and supervisory systems is the backbone of operational efficiency. The ABB GJR2363900R1000 88VT02A-E — the CI830 Communication Interface — is engineered to serve as a critical connectivity node within ABB’s Advant OCS and AC 800M control architectures. It bridges the gap between fieldbus networks and the upper control layers, enabling real-time data exchange, remote diagnostics, and transparent production monitoring across complex industrial environments.

The CI830 module functions as a dedicated fieldbus communication gateway, supporting PROFIBUS DP protocol to connect distributed field devices — including remote I/O stations, variable frequency drives, intelligent sensors, and actuator networks — directly to the ABB controller backplane. By handling protocol conversion and data encapsulation at the hardware level, it eliminates communication bottlenecks that commonly cause data isolation in legacy plant architectures.

Within a layered automation system, the CI830 occupies the network layer, acting as the translation point between the controller’s internal communication bus and the PROFIBUS DP field network. Upstream, it interfaces with ABB PM864A or PM865A processor modules mounted on the same S800 I/O rack or AC 800M controller chassis. Downstream, it manages cyclic and acyclic data exchange with up to 125 PROFIBUS DP slave devices per segment, including ABB AI810 analog input modules, DI810 digital input modules, AO810 analog output modules, and DO810 digital output modules deployed across remote I/O cabinets on the plant floor.

The module’s real-time communication capability is essential for process industries where millisecond-level response times determine product quality and safety. In a petrochemical distillation unit, for example, the CI830 continuously relays temperature, pressure, and flow sensor data from field transmitters through the PROFIBUS network to the AC 800M controller, which then executes PID control loops and sends corrective signals back to control valves and variable speed drives — all within deterministic cycle times that PROFIBUS DP guarantees.

For SCADA and HMI integration, the CI830 works in concert with ABB’s System 800xA distributed control system. Data collected from field devices via PROFIBUS DP is aggregated by the CI830, passed to the AC 800M controller, and then made available to the 800xA OPC server for visualization on operator workstations and historian databases. This architecture supports plant-wide transparency, enabling operators to monitor production KPIs, acknowledge alarms, and initiate remote setpoint adjustments from centralized control rooms or mobile HMI terminals.

Network redundancy is a key design consideration in critical process applications. The CI830 supports hot-standby configurations when paired with redundant AC 800M controller pairs, ensuring that a single module failure does not interrupt process control. In power generation and water treatment facilities, where continuous operation is mandatory, this redundancy capability directly reduces unplanned downtime risk and supports compliance with functional safety requirements.

From a system expansion perspective, the CI830 simplifies the addition of new field devices to an existing PROFIBUS network. Engineering teams can configure new slave addresses and GSD files through ABB’s Control Builder M software without modifying the controller hardware. This plug-and-configure approach reduces commissioning time significantly compared to hardwired I/O expansion, making the CI830 a preferred choice for phased plant upgrades and capacity expansion projects in automotive assembly, food and beverage processing, and pharmaceutical manufacturing.

Remote diagnostics is another area where the CI830 delivers measurable value. The module continuously monitors PROFIBUS network health, detecting communication errors, slave device failures, and cable faults. Diagnostic data is surfaced through the 800xA system’s asset monitoring tools, allowing maintenance engineers to identify and resolve network issues before they escalate into process shutdowns. This proactive maintenance capability is particularly valuable in geographically distributed installations such as pipeline monitoring stations and offshore platform control systems.

Every ABB GJR2363900R1000 88VT02A-E unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication initialization, PROFIBUS DP master functionality, and diagnostic reporting. Units are shipped with a warranty terms confirmed during quotation, providing assurance of product quality and long-term supply reliability for MRO procurement teams and system integrators managing multi-site automation infrastructure.

Compatibility & Integration Notes

Connected Automation Data Flow

The CI830’s role in the automation data chain begins at the field level, where PROFIBUS DP slave devices — such as ABB AI810 analog input modules measuring 4–20 mA process signals, DI810 digital input modules capturing discrete equipment states, and AO810 analog output modules driving control valve positioners — transmit their process data cyclically to the CI830 master. The CI830 aggregates this data and delivers it to the ABB PM864A or PM865A processor module via the controller’s internal communication bus, where control algorithms execute in real time.

Variable frequency drives connected as PROFIBUS DP slaves — such as ABB ACS800 or ACS880 series drives — report speed feedback, torque values, and fault status to the CI830, enabling the controller to implement closed-loop speed regulation for pumps, compressors, and conveyor systems. This eliminates the need for dedicated analog speed reference wiring, reducing panel complexity and improving signal integrity in electrically noisy industrial environments.

At the network layer, industrial Ethernet switches connect the AC 800M controller to the plant’s SCADA backbone, while the CI830 handles the PROFIBUS DP segment independently. This separation of network layers ensures that SCADA polling traffic does not interfere with the deterministic timing of the PROFIBUS DP control loop. In facilities running ABB System 800xA, the CI830’s diagnostic data is surfaced through the asset monitoring workspace, giving maintenance teams visibility into fieldbus health without requiring physical access to the control cabinet.

For remote I/O applications in large process plants, the CI830 connects to ABB S800 I/O remote stations installed in field junction boxes up to 1,200 meters from the controller cabinet. Each remote station may include a combination of AI810, DI810, AO810, and DO810 modules, effectively extending the controller’s I/O reach across the plant without additional controller hardware. This architecture is widely used in water treatment facilities, where pump stations and chemical dosing units are distributed across large geographic areas.

Power supply integrity for the PROFIBUS network is maintained through dedicated ABB PSTX or equivalent 24 VDC panel power supplies, which provide stable bus voltage to the CI830 and connected slave devices. Proper power distribution design, including segment terminators and cable shielding, ensures reliable communication in environments with high electromagnetic interference from motor drives and welding equipment.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate in disconnected silos, preventing plant-wide visibility and coordinated control. The ABB GJR2363900R1000 88VT02A-E directly addresses this challenge by providing a standardized PROFIBUS DP communication interface that integrates heterogeneous field devices into a unified data network.

In plants where legacy hardwired I/O systems have been expanded incrementally over decades, the CI830 enables a structured migration path. By replacing point-to-point analog wiring with PROFIBUS DP network connections, engineering teams can consolidate field device data into the AC 800M controller without replacing existing sensors or actuators — provided those devices support PROFIBUS DP or can be connected through protocol converters. This approach preserves capital investment in field instrumentation while delivering the network transparency required for modern production management systems.

Protocol inconsistency is another common source of data isolation. In facilities where different equipment generations use incompatible communication standards, the CI830’s role as a PROFIBUS DP master provides a consistent interface layer that abstracts device-level protocol differences from the controller application. Control engineers write standard function block code in Control Builder M without needing to manage low-level communication details, accelerating application development and reducing the risk of protocol-related commissioning errors.

For production line transparency, the CI830 enables real-time OEE (Overall Equipment Effectiveness) data collection by making machine cycle counts, downtime events, and quality rejection signals available to the 800xA historian and MES integration layer. This data visibility supports lean manufacturing initiatives and provides the foundation for predictive maintenance programs based on equipment utilization trends.

System expansion in growing facilities is simplified by the CI830’s support for up to 125 PROFIBUS DP slaves per segment. As production capacity increases, new field devices can be added to the existing PROFIBUS network with minimal engineering effort, avoiding the cost and downtime associated with controller hardware upgrades. This scalability makes the CI830 a long-term connectivity investment for facilities planning phased automation upgrades over multi-year capital programs.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS DP network length supported by the CI830, and how does cable quality affect communication stability?
The CI830 supports PROFIBUS DP networks up to 1,200 meters at 93.75 kbps baud rate, with shorter maximum distances at higher baud rates (e.g., 200 meters at 1.5 Mbps). Network stability depends on proper cable selection (PROFIBUS-certified Type A cable), correct termination at both ends of each segment, and adequate shielding grounding. ZYPLC recommends verifying cable specifications during system design to ensure reliable communication in electrically noisy industrial environments.

Q2: Is the ABB GJR2363900R1000 88VT02A-E compatible with both Advant OCS and AC 800M controller platforms?
Yes. The CI830 is designed for use within ABB’s Advant OCS and AC 800M control architectures. Compatibility depends on the specific controller firmware version and system configuration. ZYPLC’s technical team can assist with compatibility verification based on your existing controller model and software version prior to procurement.

Q3: What pre-shipment testing is performed on the CI830, and what does the warranty terms confirmed during quotation cover?
Every GJR2363900R1000 88VT02A-E unit undergoes functional testing including power-on verification, PROFIBUS DP master initialization, and communication diagnostic checks before shipment. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. ZYPLC provides replacement or repair support within the warranty period, with dedicated after-sales coordination through plc.sales@zyplc.com.

Q4: Can the CI830 be used in a redundant controller configuration to eliminate single points of failure?
The CI830 supports redundant AC 800M controller configurations when used with ABB’s redundancy hardware and software options. In a redundant setup, two CI830 modules are installed in the primary and backup controller chassis, with automatic switchover managed by the AC 800M redundancy supervisor. This configuration is recommended for critical process applications in power generation, oil and gas, and water treatment where continuous operation is required. Contact ZYPLC for guidance on redundancy architecture design and compatible hardware selection.
