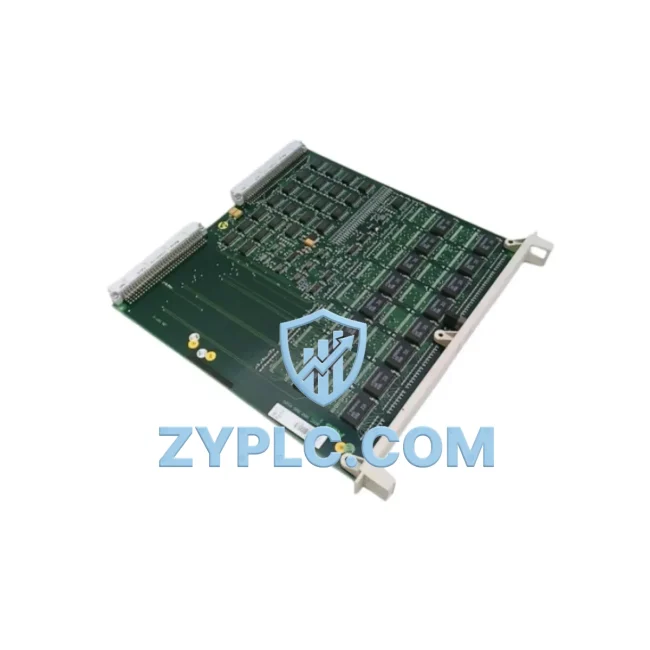

ABB GJR23657R1010 Speed Input Module for Advant OCS Systems

ABB GJR23657R1010 Industrial Network Interface for Advant OCS Systems: High-Speed Data Link for Smart Factory Connectivity

The ABB GJR23657R1010 is a precision-engineered Speed Input Module designed for seamless integration within the ABB Advant OCS/DCS control architecture. Built to handle high-frequency pulse and speed signal acquisition from field devices, this module serves as a critical node in the industrial data chain — bridging physical process signals with the digital intelligence of distributed control systems. Whether deployed in power generation, pulp and paper, oil and gas, or heavy manufacturing, the GJR23657R1010 delivers deterministic, low-latency signal processing that modern smart factory environments demand.

Operating over the RCOM and AF100 communication protocols, this module ensures reliable, real-time data exchange between field instrumentation and the Advant OCS controller backbone. Its protocol architecture is optimized for cyclic data transmission, enabling SCADA and HMI platforms to receive continuous, timestamped process values without polling delays or data loss — a fundamental requirement for closed-loop control and predictive maintenance strategies.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated Advant OCS environment, the GJR23657R1010 sits at the front end of the data acquisition chain. Speed and pulse signals from proximity sensors, encoders, and tachometers are captured at the module’s input terminals and converted into digital process values. These values are then transmitted via the AF100 fieldbus to the ABB Advant Controller AC450 or AC410, where the control logic processes the data and issues output commands to downstream actuators and drives.

Within the same control cabinet, the GJR23657R1010 operates alongside complementary I/O modules such as the ABB DSDP140 pulse counter module and the ABB DSDI110A digital input module, sharing the same backplane bus and contributing to a unified process data image. The controller then forwards aggregated process data upstream to the ABB Advant Station AS500 operator workstation, where operators monitor real-time speed trends, set alarm thresholds, and initiate control actions through the HMI interface.

For plants running ABB Industrial IT or System 800xA as the supervisory layer, the Advant OCS network connects via an AF100-to-MMS gateway or an OPC DA/UA server, enabling SCADA historians such as ABB Symphony Plus or third-party platforms like Wonderware InTouch or Ignition SCADA to archive speed data at millisecond resolution. This data pipeline supports energy monitoring, OEE calculation, and predictive maintenance analytics across the plant floor.

In drive-intensive applications, the GJR23657R1010 works in tandem with ABB ACS800 or ACS880 variable frequency drives, receiving encoder feedback that the drive uses for closed-loop speed regulation. The module’s deterministic RCOM communication ensures that speed deviations are detected and corrected within the control cycle time, preventing process upsets and protecting mechanical equipment from overspeed conditions.

Remote I/O expansion is supported through ABB S800 I/O modules connected via Profibus DP or FOUNDATION Fieldbus segments, with the Advant controller acting as the fieldbus master. This architecture allows the GJR23657R1010 to be part of a distributed I/O strategy where field devices across large plant areas report to a centralized control node, reducing wiring costs and improving signal integrity over long cable runs.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where speed signals from older field devices cannot be directly interpreted by modern SCADA or MES platforms. The ABB GJR23657R1010, operating within the Advant OCS framework, addresses this by providing a standardized, protocol-consistent interface between physical speed sensors and the digital control layer.

Plants that have historically operated with isolated control islands — where each machine or production line runs its own standalone controller — can leverage the Advant OCS network architecture to consolidate data flows. The GJR23657R1010 contributes to this consolidation by ensuring that speed and pulse data from any connected field device is available network-wide, eliminating the data silos that prevent production transparency and cross-line optimization.

For remote monitoring and diagnostics, the module’s integration with the Advant OCS controller enables remote fault detection through the SCADA alarm management system. Abnormal speed readings — indicative of mechanical wear, belt slip, or drive faults — trigger configurable alarms that are routed to operator workstations and, via OPC connectivity, to mobile notification systems or cloud-based maintenance platforms. This capability transforms reactive maintenance into a proactive, data-driven discipline.

System expansion is straightforward within the Advant OCS architecture. Additional GJR23657R1010 modules can be added to existing controller racks without reconfiguring the network topology, and the AF100 fieldbus supports hot-swap operations in certain configurations, minimizing planned downtime during capacity expansions. This scalability makes the module a long-term investment for plants planning phased automation upgrades.

All units supplied by ZYPLC undergo full functional testing and inspection prior to shipment, with each GJR23657R1010 verified for signal acquisition accuracy, protocol communication integrity, and backplane compatibility. Stock is maintained for fast global dispatch, and every module is covered by a 12-month warranty from the date of delivery.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB GJR23657R1010 support, and is it compatible with modern SCADA systems?
The GJR23657R1010 operates on the RCOM and AF100 protocols native to the ABB Advant OCS/DCS platform. Integration with modern SCADA systems such as ABB System 800xA, Wonderware, or Ignition is achieved via OPC DA/UA servers or AF100 gateway modules, enabling seamless data exchange without replacing the existing control infrastructure.

Q2: How does the module perform in terms of communication latency and real-time data reliability?
The GJR23657R1010 is designed for deterministic, cyclic data transmission within the Advant OCS controller network. Communication latency is governed by the controller scan cycle time, typically in the range of 10–100 ms depending on configuration, ensuring that speed data is available to the control logic and SCADA historian with minimal delay and no data loss under normal network conditions.

Q3: Can the GJR23657R1010 be added to an existing Advant OCS system without disrupting ongoing production?
Yes. The module is designed for integration into existing Advant OCS controller racks and is compatible with the standard backplane bus architecture. In most configurations, module insertion and I/O configuration can be performed during scheduled maintenance windows with minimal impact on production. Consult your system integrator for hot-swap compatibility specific to your controller revision.

Q4: What does the 12-month warranty cover, and how are units tested before shipment?
Every ABB GJR23657R1010 supplied by ZYPLC is subjected to full functional testing, including signal acquisition verification, protocol communication checks, and backplane interface validation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair is arranged promptly to minimize any impact on your production continuity.

—
