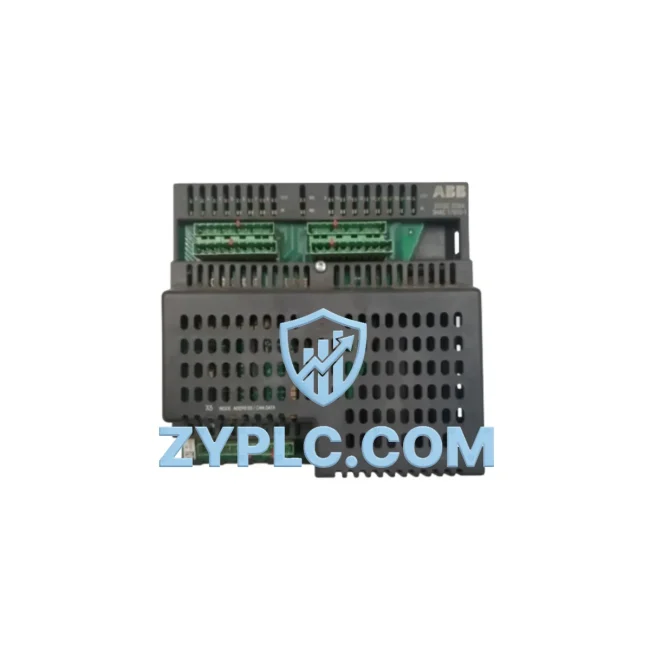

ABB GJR2369900R1100 83SR05F-E Industrial Network Interface for Advant Controller Systems

ABB GJR2369900R1100 83SR05F-E: Industrial Data Link for Smart Factory Connectivity

The ABB GJR2369900R1100 83SR05F-E is a high-performance digital I/O module engineered for the ABB Advant Controller platform, delivering seamless protocol conversion and real-time data exchange across industrial automation networks. Designed to bridge field-level devices with supervisory control systems, this module serves as a critical node in the industrial data chain — connecting sensors, actuators, remote I/O stations, and PLC controllers to SCADA and HMI environments through standardized communication protocols including PROFIBUS-DP and Modbus RTU.

In modern smart factory deployments, data isolation between legacy field devices and upper-level control systems remains one of the most persistent challenges. The GJR2369900R1100 83SR05F-E addresses this directly by acting as a protocol gateway and I/O interface within the Advant Controller architecture, enabling transparent data flow from the plant floor to enterprise-level monitoring platforms without costly infrastructure overhauls.

Network Communication Table

Connected Automation Data Flow

Within a typical smart factory architecture, the ABB GJR2369900R1100 83SR05F-E operates at the intersection of field instrumentation and control logic. Signal acquisition begins at the sensor layer — pressure transmitters, flow meters, proximity switches, and temperature sensors — whose 24VDC digital signals are captured directly by the I/O module’s input channels. These signals are then processed and transmitted upstream via PROFIBUS-DP to the ABB Advant Controller AC450 or AC410 CPU module, where control logic executes in real time.

For installations requiring legacy device integration, the module’s Modbus RTU capability allows communication with third-party variable frequency drives (VFDs), motor starters, and intelligent field devices that do not natively support PROFIBUS. This makes the GJR2369900R1100 83SR05F-E an effective protocol gateway between mixed-protocol environments — a common scenario in brownfield automation upgrades.

Upstream, the Advant Controller communicates with ABB System 800xA or compatible SCADA platforms via the ABB CI854A PROFIBUS DP Interface Module, enabling real-time visualization of I/O states, alarm management, and historical data logging. Operators at HMI stations — such as the ABB PP865 Panel PC or third-party Siemens TP series HMIs — can monitor digital input/output status, acknowledge alarms, and initiate remote control commands without physical access to the field panel.

In distributed control topologies, the GJR2369900R1100 83SR05F-E works alongside ABB S800 Remote I/O modules and TB820 ModuleBus Modem units to extend the I/O network across large plant areas. Edge gateway devices — such as the ABB Edge Controller AC500-eCo — can aggregate data from multiple Advant nodes and forward structured datasets to cloud-based MES or ERP systems via OPC-UA or MQTT, completing the vertical integration from field device to enterprise dashboard.

Power distribution for the I/O rack is typically handled by ABB SD831 or SD832 Power Supply modules, ensuring stable 24VDC rail voltage for all connected I/O cards. Redundant power configurations are supported in high-availability process lines, where uninterrupted I/O communication is critical to production continuity.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with a fragmented automation landscape — legacy PLCs running proprietary protocols, field devices with no network connectivity, and SCADA systems unable to access real-time process data. The ABB GJR2369900R1100 83SR05F-E directly addresses these data isolation challenges through its dual-protocol architecture and native integration with the Advant Controller platform.

Protocol Unification: By supporting both PROFIBUS-DP and Modbus RTU on a single module, the GJR2369900R1100 83SR05F-E eliminates the need for external protocol converters in mixed-device environments. Field devices from different manufacturers — drives, sensors, remote terminals — can all communicate through a unified data backbone managed by the Advant Controller.

Remote Monitoring and Diagnostics: Through SCADA integration, maintenance engineers can remotely monitor I/O channel states, detect wiring faults, and diagnose communication errors without dispatching field technicians. PROFIBUS-DP’s built-in diagnostic messaging allows the controller to report module health status, channel-level faults, and bus communication errors in real time — reducing mean time to repair (MTTR) significantly.

Production Line Transparency: With all field signals routed through the GJR2369900R1100 83SR05F-E and aggregated at the Advant Controller, operators gain complete visibility into machine states, cycle counts, and process variables. This data transparency is foundational to OEE (Overall Equipment Effectiveness) tracking and predictive maintenance programs.

System Scalability: The modular architecture of the Advant Controller platform allows additional I/O modules — including analog input cards, counter modules, and communication interfaces — to be added to the same rack without system reconfiguration. This scalability protects capital investment as production requirements evolve.

Pre-Shipment Testing and 12-Month Warranty: Every ABB GJR2369900R1100 83SR05F-E unit is functionally tested prior to dispatch, verifying communication integrity, I/O channel operation, and protocol handshake performance. A 12-month warranty covers all hardware defects, giving procurement and maintenance teams confidence in long-term reliability.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB GJR2369900R1100 83SR05F-E support?
The module supports PROFIBUS-DP as its primary fieldbus protocol and Modbus RTU for serial device integration. This dual-protocol capability makes it suitable for both modern PROFIBUS networks and legacy Modbus-based field devices, enabling protocol bridging within a single Advant Controller rack.

Q2: Is the GJR2369900R1100 83SR05F-E compatible with ABB System 800xA and third-party SCADA platforms?
Yes. When integrated with the Advant Controller and a PROFIBUS DP master interface such as the CI854A, the module’s I/O data is fully accessible to ABB System 800xA. It is also compatible with third-party SCADA systems including Wonderware InTouch, Siemens WinCC, and GE iFIX via standard OPC-DA/UA data servers connected to the Advant Controller.

Q3: How does the module ensure network stability in high-noise industrial environments?
The GJR2369900R1100 83SR05F-E is designed to IEC industrial EMC standards, with shielded backplane communication and RS-485 differential signaling on the Modbus RTU interface. PROFIBUS-DP’s token-passing protocol ensures deterministic bus access, preventing data collisions and maintaining consistent cycle times even in electrically noisy plant environments.

Q4: What is the warranty coverage and how is the module tested before shipment?
All units carry a 12-month warranty covering manufacturing defects and communication failures. Prior to shipment, each module undergoes functional verification including I/O channel continuity testing, PROFIBUS-DP slave address configuration, and Modbus RTU communication handshake validation. In-stock units are available for immediate dispatch with full traceability documentation.

—
