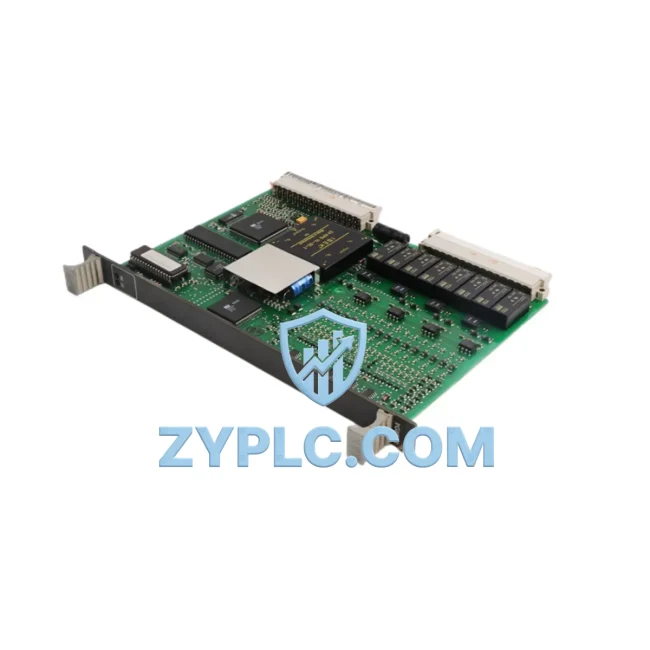

ABB GJR2390200R1210 83SR04E-E Industrial Network Interface for AC800M Systems

ABB GJR2390200R1210 83SR04E-E: Industrial Data Link Gateway for AC800M Smart Factory Networks

The ABB GJR2390200R1210 83SR04E-E is a high-performance communication gateway engineered for the AC800M controller platform — one of ABB’s most widely deployed process automation architectures. Designed to bridge field-level devices with supervisory control systems, this gateway enables seamless protocol conversion, real-time data transmission, and network-layer integration across complex industrial environments. Whether deployed in oil and gas, power generation, chemical processing, or discrete manufacturing, the GJR2390200R1210 83SR04E-E delivers the connectivity backbone that modern smart factories demand.

In today’s industrial landscape, data isolation remains one of the most persistent barriers to operational efficiency. Field instruments, PLCs, remote I/O modules, variable frequency drives, and HMI terminals often operate on incompatible communication protocols, creating fragmented data silos that impede real-time visibility and decision-making. The ABB GJR2390200R1210 83SR04E-E directly addresses this challenge by acting as a protocol-transparent bridge between the AC800M controller and downstream or upstream network segments, ensuring that every data point — from analog sensor readings to discrete alarm states — flows reliably to where it is needed.

Network Communication Table

Connected Automation Data Flow

Understanding the role of the ABB GJR2390200R1210 83SR04E-E requires tracing the full data path from the plant floor to the control room. At the signal acquisition layer, field instruments such as pressure transmitters, flow meters, and temperature sensors feed analog and digital signals into ABB S800 I/O modules — a distributed I/O family tightly integrated with the AC800M platform. These I/O signals are aggregated and passed through the controller backplane, where the GJR2390200R1210 83SR04E-E gateway handles protocol encapsulation and network routing.

For remote field segments, the gateway interfaces with ABB S900 Remote I/O units deployed in hazardous or geographically distributed areas, collecting process data over PROFIBUS DP or FOUNDATION Fieldbus and forwarding it to the AC800M controller in real time. In drive-intensive applications — such as pump stations or compressor trains — the gateway communicates with ABB ACS880 variable frequency drives, retrieving speed references, torque feedback, and fault diagnostics without requiring dedicated point-to-point wiring.

At the supervisory layer, the GJR2390200R1210 83SR04E-E enables the AC800M to publish process data to ABB System 800xA, the company’s flagship distributed control and SCADA platform. Through OPC UA or proprietary ABB communication stacks, operators gain real-time visibility into process variables, alarm states, and equipment health across the entire plant. For sites running third-party SCADA solutions, the gateway’s Modbus TCP/IP capability allows integration with platforms such as Wonderware, Ignition, or Siemens WinCC without protocol adapters.

HMI terminals — including ABB CP600 operator panels — connect to the AC800M network via Ethernet, displaying live process data sourced through the GJR2390200R1210 83SR04E-E gateway. In multi-controller architectures, the gateway also facilitates peer-to-peer communication between AC800M nodes and adjacent ABB AC500 PLC systems, enabling coordinated control across production lines or utility systems. Edge computing nodes, such as the ABB Edge Gateway series, can subscribe to data streams published by the AC800M through this communication module, enabling local analytics, anomaly detection, and cloud forwarding without burdening the primary control network.

For safety-instrumented systems, the gateway supports data exchange with ABB AC800M HI (High Integrity) controllers, ensuring that safety-critical process values are visible to the SCADA layer while maintaining SIL-rated isolation. Industrial Ethernet switches — such as those from the ABB Ethernet Switch ES series — provide the physical network infrastructure over which the gateway’s Ethernet traffic flows, with managed VLAN segmentation ensuring that control traffic is isolated from corporate IT networks.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate legacy field devices that predate modern industrial Ethernet standards. Instruments communicating over HART, PROFIBUS PA, or proprietary serial protocols cannot natively connect to Ethernet-based SCADA systems without an intermediary. The ABB GJR2390200R1210 83SR04E-E resolves this by acting as a transparent protocol gateway, converting legacy fieldbus data into formats consumable by modern supervisory systems — eliminating the need for costly field rewiring or device replacement.

Data isolation is equally problematic in multi-vendor environments. A plant may operate ABB controllers alongside Siemens SIMATIC S7 PLCs, Rockwell ControlLogix systems, or Schneider Electric Modicon units. The GJR2390200R1210 83SR04E-E’s Modbus TCP/IP and OPC UA support enables cross-vendor data exchange, allowing operators to consolidate process visibility into a single SCADA dashboard without replacing existing control hardware.

Remote monitoring and diagnostics represent another critical use case. With the gateway in place, maintenance engineers can access real-time device health data — including communication error counters, signal quality metrics, and module temperature — from a central engineering workstation or mobile HMI, reducing the need for physical site inspections and enabling predictive maintenance workflows. Alarm events generated at the field level are propagated through the AC800M network to the SCADA alarm management system within milliseconds, ensuring that operators receive timely notifications regardless of where the fault originates in the network topology.

Production line transparency — a core requirement of Industry 4.0 initiatives — is achieved by ensuring that every connected device contributes its data to the plant historian. The GJR2390200R1210 83SR04E-E facilitates this by maintaining stable, low-latency communication links between field devices and the AC800M controller, which in turn feeds the ABB System 800xA Information Management historian. System expansion is equally straightforward: additional fieldbus segments or remote I/O nodes can be added to the network without reconfiguring the gateway, as the AC800M platform supports hot-plug module insertion and automatic device recognition.

Every unit of the ABB GJR2390200R1210 83SR04E-E supplied by ZYPLC undergoes pre-shipment functional verification, including communication link testing, protocol handshake validation, and power-on self-test confirmation. Stock is maintained in our warehouse for immediate dispatch via DHL or FedEx, with full traceability documentation provided. All units are covered by a 12-Month Warranty, giving procurement and engineering teams confidence in both product authenticity and long-term reliability.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB GJR2390200R1210 83SR04E-E support?
The GJR2390200R1210 83SR04E-E is designed for the AC800M platform and supports fieldbus protocols including PROFIBUS DP, Modbus RTU, and Modbus TCP/IP, as well as integration with FOUNDATION Fieldbus and IEC 61850 networks depending on system configuration. Its multi-protocol capability makes it suitable for both legacy fieldbus environments and modern industrial Ethernet architectures.

Q2: How does this gateway handle communication latency in time-critical control loops?
The AC800M platform is engineered for deterministic real-time control, and the GJR2390200R1210 83SR04E-E operates within the controller’s cyclic communication framework. Data exchange between the gateway and connected field devices occurs within defined scan cycle windows, ensuring that process variables are updated at rates consistent with the controller’s execution cycle — typically in the range of 10–100 ms depending on configuration.

Q3: Can this module be integrated with third-party SCADA or HMI systems?
Yes. Through the AC800M’s OPC UA server and Modbus TCP/IP interface, the GJR2390200R1210 83SR04E-E enables data access from any SCADA or HMI platform that supports these standard protocols, including Wonderware System Platform, Ignition by Inductive Automation, Siemens WinCC, and GE iFIX. No proprietary middleware is required for basic read/write access to process variables.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this module?
All ABB GJR2390200R1210 83SR04E-E units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, communication port integrity check, and protocol handshake validation. Units are shipped in original or equivalent protective packaging with full documentation, and express delivery is available via DHL and FedEx to most global destinations.
