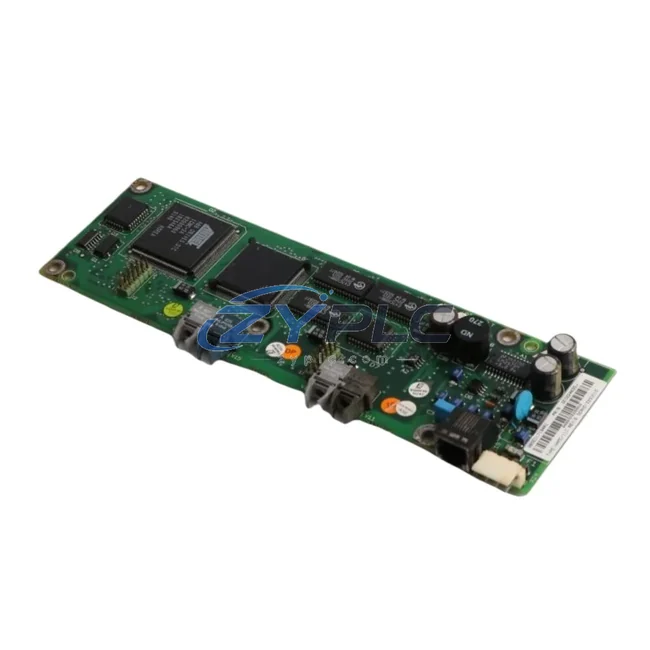

ABB GJR2390200R1310 83SR04E-E DCS Control Module for MOD 300

ABB GJR2390200R1310 83SR04E-E DCS Control Module for MOD 300

The ABB GJR2390200R1310 83SR04E-E is a dedicated DCS control module engineered for deployment within the ABB MOD 300 Advant OCS distributed control architecture. Rather than functioning as a standalone component, this module is designed to operate as an integral node within a multi-layer automation hierarchy — coordinating signal processing, control execution, and inter-module communication across the full system stack. Its role spans the control layer and I/O layer, where it interfaces directly with field instruments, process transmitters, and actuator networks while maintaining synchronised data exchange with supervisory controllers and operator workstations above.

In a complete MOD 300 system architecture, the GJR2390200R1310 83SR04E-E works in close coordination with companion modules such as the ABB DSPC110 processor module, DSMB175 motherboard, DSAI130 analog input module, DSAO120 analog output module, and DSDI110 digital input module. These components share a common backplane bus structure, enabling deterministic scan cycles and minimising inter-module latency. The module’s compatibility with the Advant OCS rack system ensures that it can be installed alongside DSDP140 pulse counter modules and DSDO115 digital output modules without requiring additional signal conditioning hardware, preserving system consistency and reducing engineering overhead during commissioning.

From a network layer perspective, the GJR2390200R1310 83SR04E-E supports integration with ABB’s MasterBus 300 communication infrastructure, enabling seamless data exchange between distributed control nodes, remote I/O stations, and the central operator interface. This communication capability is essential in large-scale process plants where control loops span multiple physical areas and require coordinated response times. The module’s architecture also supports connection to PROFIBUS DP gateways and Modbus RTU interfaces, making it suitable for hybrid automation environments where legacy field devices must be integrated into a modern DCS backbone.

Power layer compatibility is equally important in system design. The GJR2390200R1310 83SR04E-E is rated for operation within standard MOD 300 rack power supply configurations, typically supplied by ABB DSPD110 or equivalent redundant power modules. Redundant power feeding ensures that a single power supply failure does not interrupt control execution, a critical requirement in continuous process industries such as petrochemical refining, pulp and paper production, and power generation. The module’s low power consumption profile also contributes to overall cabinet thermal management, reducing the risk of heat-related degradation in densely populated control panels.

At the human-machine interface layer, the GJR2390200R1310 83SR04E-E integrates with ABB Operate IT or legacy MOD 300 operator consoles, providing real-time process variable display, alarm management, and trend logging. Engineers can configure control strategies, tune PID parameters, and monitor module health directly from the HMI without interrupting live process control — a significant advantage during plant optimisation campaigns and scheduled maintenance windows. The module’s diagnostic registers are accessible via the engineering workstation, enabling predictive maintenance scheduling based on actual operating data rather than fixed time intervals.

For execution layer applications, the GJR2390200R1310 83SR04E-E provides the control outputs necessary to drive variable frequency drives, motorised control valves, solenoid actuators, and relay-based switching circuits. Its output signal integrity is maintained through hardware-level signal isolation, preventing ground loop interference from corrupting control commands in electrically noisy industrial environments. This isolation capability is particularly valuable in applications such as water treatment facilities, mining conveyor systems, and metallurgical furnace control, where high-power electrical equipment operates in close proximity to sensitive instrumentation circuits.

System redundancy is a core design consideration for the GJR2390200R1310 83SR04E-E. In redundant controller configurations, a standby module monitors the primary module’s health status continuously and executes a bumpless transfer upon detecting a fault condition. This hot-standby architecture eliminates unplanned process shutdowns caused by controller hardware failures, directly reducing production losses and improving overall equipment effectiveness. The module’s redundancy switching logic is fully managed within the MOD 300 firmware, requiring no external relay logic or manual operator intervention during failover events.

Long-term maintainability is supported through ZYPLC’s verified inventory of ABB MOD 300 series components. Procurement teams can source the GJR2390200R1310 83SR04E-E alongside related modules including DSPC172 controller boards, DSTD110 termination units, and DSRF180 rack frames, ensuring that complete system spares are available from a single supplier. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and undergo functional verification prior to dispatch, providing engineering teams with confidence in component reliability before installation.

Product Specification Table

System Compatibility Notes

Effective deployment of the GJR2390200R1310 83SR04E-E requires a systems-level approach to hardware selection and configuration. Within a typical MOD 300 control cabinet, this module occupies a defined slot on the DSMB175 motherboard, sharing the backplane bus with the DSPC110 or DSPC172 processor module that manages the primary control strategy execution. Analog field signals are routed through DSAI130 analog input modules before being processed by the control module, while DSAO120 analog output modules translate control commands into 4–20 mA signals for field actuators.

Digital I/O is handled by DSDI110 and DSDO115 modules mounted in adjacent rack slots, providing the discrete signal handling required for motor starter interlocks, valve position feedback, and alarm relay outputs. Pulse counting applications — common in flow measurement and rotational speed monitoring — are supported by DSDP140 modules integrated into the same rack assembly. Termination of field wiring is managed through DSTD110 termination units, which provide clearly labelled screw terminals and built-in signal conditioning, simplifying both initial installation and subsequent field wiring modifications.

At the network level, MasterBus 300 communication links connect the GJR2390200R1310 83SR04E-E to remote I/O stations and peer controller nodes distributed across the plant. Where third-party field devices require PROFIBUS DP connectivity, a dedicated gateway module bridges the two protocols without introducing additional scan cycle delays. The complete system architecture — from field sensor through I/O module, control module, communication bus, and operator interface — forms a coherent system integration framework that supports both real-time control and long-term data historian functions.

Industrial Application Notes

The GJR2390200R1310 83SR04E-E is well suited to a broad range of industrial automation applications where system reliability, signal integrity, and long-term maintainability are primary engineering requirements. In continuous process manufacturing — including petrochemical plants, oil refineries, and chemical reactors — the module’s hot-standby redundancy capability ensures that critical control loops remain active during hardware maintenance activities, eliminating the need for planned production shutdowns to replace aging controller components.

In power generation facilities, the module supports turbine governor control, boiler combustion management, and auxiliary system sequencing within a unified MOD 300 DCS framework. Its MasterBus 300 communication capability enables tight coordination between distributed control nodes managing different sections of the power island, ensuring that load changes and fault responses are propagated across the system within defined response time windows.

Water treatment and wastewater management applications benefit from the module’s robust signal isolation and wide operating temperature range, which allow reliable operation in outdoor pump stations and chemical dosing facilities where environmental conditions are less controlled than in a typical process plant control room. Mining and metallurgical applications — including conveyor drive control, crusher sequencing, and furnace temperature regulation — similarly benefit from the module’s hardware isolation and redundancy features, which protect control integrity in environments characterised by high electrical noise and mechanical vibration.

Packaging line automation and discrete manufacturing applications can also leverage the GJR2390200R1310 83SR04E-E within a MOD 300 architecture, particularly in facilities where a unified DCS platform manages both continuous process sections and discrete assembly or filling operations. The module’s compatibility with the full Advant OCS component ecosystem ensures that system expansions — whether adding new I/O points, extending communication networks, or integrating additional HMI workstations — can be completed without disrupting existing control strategies.

Product Compatibility FAQ

Q1: Is the GJR2390200R1310 83SR04E-E compatible with both early and late-generation MOD 300 rack assemblies?
The GJR2390200R1310 83SR04E-E is designed for the ABB MOD 300 / Advant OCS platform and is compatible with standard MOD 300 rack assemblies using the DSMB175 motherboard and DSRF180 rack frame. Compatibility with specific rack generations should be confirmed against the installed firmware revision of the DSPC processor module. ZYPLC’s technical team can assist with compatibility verification prior to order placement, and all supplied units are covered by a warranty terms confirmed during quotation.

Q2: Can this module be installed in a redundant controller configuration without replacing the existing primary controller?
Yes. The GJR2390200R1310 83SR04E-E supports hot-standby redundancy within the MOD 300 architecture. A second module can be added to the redundant slot of the existing rack assembly and configured as the standby controller through the MOD 300 engineering workstation software. The bumpless transfer logic is managed entirely within the MOD 300 firmware, requiring no external relay logic or manual switchover procedures. Commissioning of the redundant pair typically requires a brief engineering session to verify synchronisation and failover response time.

Q3: What long-term supply and maintenance support is available for this module?
ZYPLC maintains verified inventory of ABB MOD 300 series components, including the GJR2390200R1310 83SR04E-E and related modules such as DSPC110, DSAI130, DSAO120, DSTD110, and DSRF180. All units undergo functional verification prior to dispatch and are supplied with a warranty terms confirmed during quotation. For plants operating legacy MOD 300 systems beyond the original manufacturer’s support lifecycle, ZYPLC provides a reliable sourcing channel that supports both planned maintenance programmes and emergency replacement requirements. Contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com for availability and lead time confirmation.
