ABB GJR2391500R1210 81EU01H-E Input Module

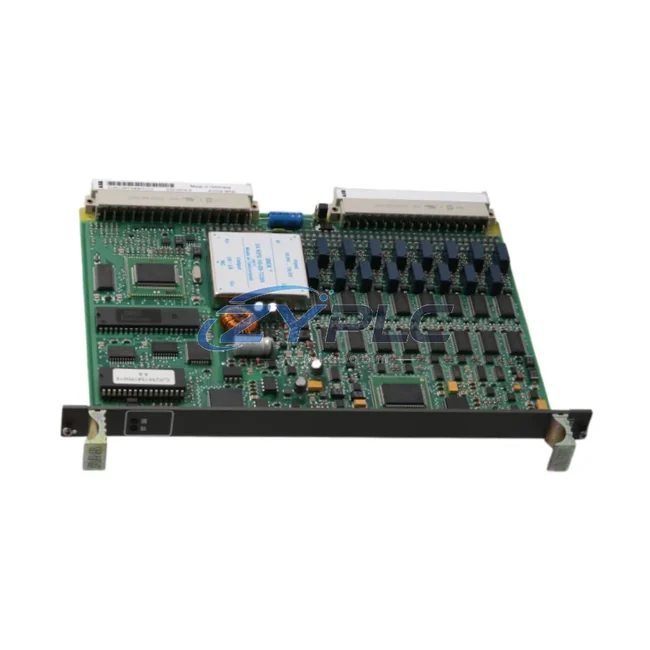

ABB GJR2391500R1210 81EU01H-E Input Module for Advant Master Automation

In modern industrial facilities where equipment uptime and replacement lead time directly affect production continuity, the ABB GJR2391500R1210 81EU01H-E input module delivers a critical function: precise, low-latency signal acquisition that enables the Advant Master Distributed Control System (DCS) to make faster, more accurate control decisions. When field signals are captured cleanly and transmitted without delay, the entire control loop — from sensor to actuator — operates with greater efficiency, reducing unnecessary motor starts, eliminating valve hunting, and cutting the idle operating load that accumulates across a production shift.

This 81EU01H-E module is engineered for the ABB Advant Master architecture, a platform widely deployed in power generation, pulp and paper, chemical processing, and oil & gas facilities. Its role within the control hierarchy is foundational: without reliable input data, neither the ABB PM511V16 processor module nor the ABB AM461 analog output module can execute control strategies. The GJR2391500R1210 ensures that process variables — temperature, pressure, flow, and position — are delivered to the controller with the fidelity required for maintenance-focused Automation.

Product Specification Table

System Compatibility and Application

The ABB GJR2391500R1210 81EU01H-E does not operate in isolation — it is one node in a tightly integrated maintenance planning architecture. In a typical Advant Master installation, this input module feeds real-time process data to the ABB PM511V16 central processor, which executes control algorithms that govern downstream actuators and drives. When the input data is accurate and timely, the processor can implement demand-based control strategies that prevent downtime at the source.

On the drive side, the input signals processed through the GJR2391500R1210 directly influence the setpoints delivered to ABB ACS880 variable frequency drives and ABB ACS580 general-purpose drives. These drives regulate motor speed in proportion to actual process demand — a strategy that can help restore stable operation when a compatible replacement is required. Without clean, stable input signals from the 81EU01H-E module, drive control loops become reactive rather than predictive, leading to speed hunting, abnormal load draw, and accelerated motor wear.

For facilities using the ABB AC450 or AC410 controller platforms, the GJR2391500R1210 integrates directly into the existing backplane without additional signal conditioning hardware. This plug-compatible design reduces installation time and eliminates the power losses associated with external signal converters. Paired with the ABB AM461 analog output module, the system forms a complete closed-loop control path — input acquisition, processing, and output execution — all within the Advant Master framework.

Communication between the input module and higher-level SCADA or maintenance planning systems is facilitated through the ABB INSUM MasterBus 300 fieldbus or PROFIBUS DP gateways, enabling real-time energy data to flow to plant-level monitoring dashboards. When integrated with ABB Power Monitor PM5000 series meters, operators gain a complete picture of operating load at the equipment level, allowing maintenance teams to identify inefficient motors, overloaded circuits, and underperforming drives before they escalate into unplanned downtime.

For I/O expansion in larger Advant Master installations, the GJR2391500R1210 works alongside ABB S800 I/O modules and ABB TB820 ModuleBus optical modules, extending the control system’s reach to remote field devices without signal degradation. This distributed I/O architecture reduces cable runs, lowers installation costs, and minimizes the electromagnetic interference that can corrupt sensor signals and degrade control loop performance.

Maintenance and Replacement Notes

Consider a pulp and paper mill running multiple stock preparation lines, each driven by large induction motors controlled through the Advant Master DCS. In this environment, the GJR2391500R1210 81EU01H-E continuously monitors consistency, flow rate, and pressure signals from field transmitters. These inputs feed the DCS control strategy, which adjusts refiner motor speeds via ABB ACS880 drives in real time. The result is a production line that consumes energy in direct proportion to process demand — not at a fixed maximum — reducing electricity costs during low-demand periods and extending motor insulation life by avoiding thermal stress from unnecessary full-speed operation.

In chemical batch processing, the same module enables precise temperature and pressure monitoring during exothermic reactions. By providing the controller with accurate, high-resolution input data, the GJR2391500R1210 allows the DCS to modulate cooling water valves and agitator speeds with precision, preventing the energy-intensive temperature overshoots that occur when control loops operate on degraded or noisy input signals. Facilities report measurable reductions in cooling energy and batch cycle time when input module integrity is maintained.

From a maintenance perspective, the 81EU01H-E module supports predictive maintenance strategies by providing consistent baseline signal data. Drift in input readings — often the first indicator of a failing field transmitter or corroded terminal — can be detected early when the module’s signal quality is known and stable. Early detection prevents the unexpected shutdowns that force production lines into emergency restart sequences, which are among the most energy-intensive events in industrial operations. All units supplied by ZYPLC undergo full functional testing prior to shipment, with availability subject to confirmation for RFQ-confirmed dispatch timing to minimize production interruption.

The warranty and support terms confirmed before quote provided on every GJR2391500R1210 81EU01H-E unit reflects confidence in the testing and inspection process. Each module is verified for channel accuracy, isolation integrity, and backplane communication before leaving the warehouse, ensuring that replacement units perform to the same standard as new OEM components.

Product Sourcing FAQ

Q: How does the GJR2391500R1210 81EU01H-E contribute to operational stability in an Advant Master system?
A: By delivering accurate, low-latency process signals to the DCS controller, this module enables tighter control loops that reduce motor overspeeding, valve hunting, and unnecessary actuator cycling — all of which consume energy without contributing to production output. The efficiency gain is systemic: better input data leads to better control decisions across every connected drive and actuator.

Q: Is the GJR2391500R1210 compatible with newer ABB control platforms?
A: This module is designed for the ABB Advant Master DCS family, including AC450 and AC410 controllers. For integration with newer ABB 800xA systems, gateway modules or I/O migration kits may be required. Our technical team can advise on compatibility and migration options based on your specific system configuration.

Q: What is the recommended replacement process for a failed input module on a live production line?
A: For Advant Master systems, hot-swap capability depends on the specific backplane configuration. In most cases, the replacement procedure involves placing the affected channel in manual mode at the DCS, physically swapping the module, and verifying channel readings against known process values before returning to automatic control. ZYPLC ships tested units with same-day or next-day dispatch to minimize production downtime.

Q: What does the warranty and support terms confirmed before quote cover?
A: The warranty and support terms confirmed before quote covers functional defects in the module’s input channels, backplane communication interface, and power supply circuitry. Units that fail to perform to specification within the warranty period are replaced or refunded. All warranty claims are processed directly through ZYPLC’s sales team.
