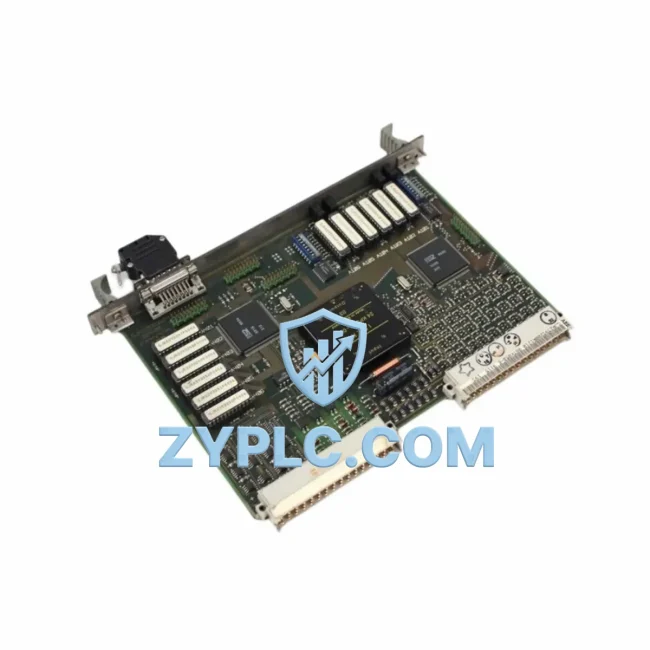

The ABB GJR2393200R1210 88TK05C-E is a high-performance Profibus DP Station Bus Coupler engineered for the AC500 PLC platform, delivering seamless industrial network connectivity across complex automation architectures. Designed to bridge field-level devices and upper-level control systems, this gateway module enables reliable, real-time data exchange between sensors, actuators, remote I/O stations, drives, and SCADA/HMI supervisory layers — making it a critical node in any smart factory data infrastructure.

In modern industrial environments, the demand for transparent, low-latency communication between heterogeneous devices has never been greater. The GJR2393200R1210 88TK05C-E addresses this challenge by acting as a dedicated Profibus DP interface coupler within the AC500 system bus architecture, ensuring that field signals are accurately captured, protocol-converted, and transmitted upstream without data loss or communication bottlenecks.

Network Communication Table

Connected Automation Data Flow

Within a typical AC500-based automation cell, the GJR2393200R1210 88TK05C-E serves as the communication backbone between the AC500 PM573 or PM591 CPU modules and distributed field devices connected via Profibus DP. Signal acquisition begins at the sensor and actuator layer — pressure transmitters, proximity switches, and temperature sensors — where raw process data is collected and forwarded through Profibus DP to the coupler module.

The 88TK05C-E then routes this data across the AC500 internal system bus to the central CPU, where it is processed and made available to the HMI layer — typically an ABB CP600 or CP635 operator panel — for real-time visualization and operator interaction. Simultaneously, the processed data is forwarded via Ethernet or serial links to SCADA platforms such as ABB System 800xA or third-party supervisory systems, enabling plant-wide monitoring and historical data logging.

In drive integration scenarios, the GJR2393200R1210 88TK05C-E facilitates Profibus DP communication between the AC500 controller and ABB ACS880 or ACS580 variable frequency drives, enabling precise speed reference, torque control, and drive status feedback within a single unified network. Remote I/O expansion is achieved through ABB TU515 or TU516 terminal units paired with compatible I/O modules such as the DC532 digital input module or AX522 analog I/O module, all communicating seamlessly over the Profibus DP segment managed by the 88TK05C-E coupler.

For remote diagnostic and maintenance workflows, the data chain extends further — edge gateways or industrial PCs running ABB Ability™ or third-party OPC-UA middleware collect Profibus DP segment data from the AC500 system and push it to cloud-based analytics platforms, enabling predictive maintenance, KPI dashboards, and remote alarm management without requiring on-site intervention.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Legacy field devices often speak only Profibus DP, while newer IIoT-ready systems demand Ethernet-based protocols such as PROFINET or Modbus TCP. Without a capable gateway coupler like the GJR2393200R1210 88TK05C-E, these protocol boundaries create data silos that prevent plant managers from achieving full production transparency.

The 88TK05C-E resolves this by acting as a transparent protocol bridge within the AC500 architecture — aggregating Profibus DP field data and presenting it uniformly to the AC500 CPU, which can then relay it to higher-level Ethernet networks. This eliminates the need for costly parallel wiring or standalone protocol converters, reducing both installation complexity and potential points of failure.

For remote monitoring requirements, the integration of the GJR2393200R1210 88TK05C-E into an AC500-based system enables SCADA operators to access live field device status, alarm conditions, and process variables from any networked workstation — dramatically reducing mean time to diagnose (MTTD) and mean time to repair (MTTR) for field faults. Production line transparency is further enhanced by the ability to map Profibus DP device diagnostics directly into the SCADA alarm management system, providing operators with actionable fault information in real time.

System scalability is another key advantage. As production capacity grows, additional Profibus DP segments and remote I/O stations can be added to the network without redesigning the control architecture — the 88TK05C-E supports incremental expansion within the AC500 platform, protecting the initial automation investment while accommodating future production demands.

Every unit of the ABB GJR2393200R1210 88TK05C-E supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, bus timing, and module identification before dispatch. All units are covered by a 12-month warranty and are available from in-stock inventory for immediate global shipping.

Industrial Connectivity FAQ

Q1: What is the maximum Profibus DP transmission speed supported by the GJR2393200R1210 88TK05C-E?
The 88TK05C-E supports Profibus DP transmission speeds of up to 12 Mbit/s, in full compliance with EN 50170. The actual operating speed is automatically negotiated based on the Profibus DP master configuration and cable segment length, ensuring optimal network stability across varying installation conditions.

Q2: Is the GJR2393200R1210 88TK05C-E compatible with both Profibus DP-V0 and DP-V1 masters?
Yes. The module supports both DP-V0 cyclic data exchange and DP-V1 acyclic parameter access, making it compatible with a wide range of Profibus DP masters including ABB AC500 CPUs, third-party PLCs, and SCADA gateway devices. This dual-version compatibility ensures seamless integration into both legacy and modern automation networks.

Q3: Can this module be used to expand the AC500 system with additional remote I/O stations?
Absolutely. The GJR2393200R1210 88TK05C-E is specifically designed to couple remote I/O expansion units — such as ABB S500 I/O modules mounted on TU515 or TU516 terminal units — to the AC500 system bus via Profibus DP. This allows engineers to distribute I/O across large plant areas while maintaining centralized control from a single AC500 CPU.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this module?
All ABB GJR2393200R1210 88TK05C-E units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including bus communication verification, module self-diagnostics check, and physical inspection. In-stock units are available for immediate dispatch with full traceability documentation upon request.
