ABB GJR2395500R1210 83SR50C-E Control Module for Advant OCS

ABB GJR2395500R1210 83SR50C-E Control Module for Advant OCS

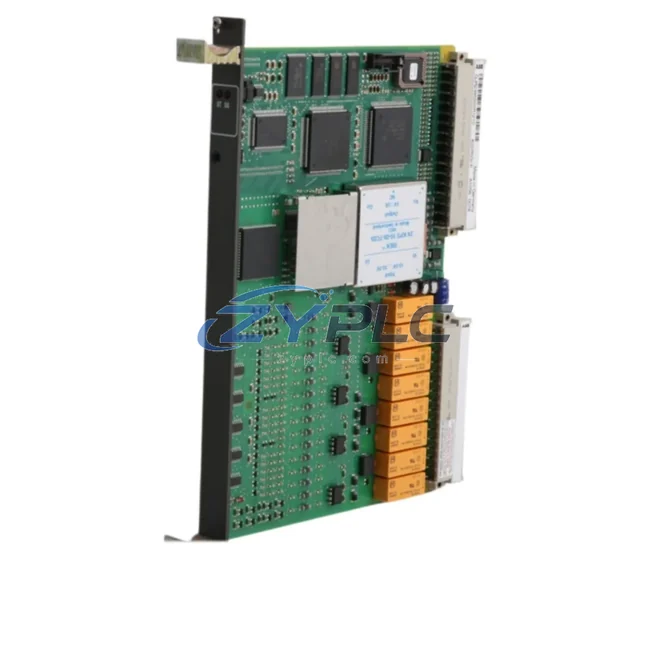

The ABB GJR2395500R1210 83SR50C-E is a dedicated control module engineered for deployment within the ABB Advant OCS (Open Control System) distributed control architecture. Rather than functioning as a standalone unit, this module is designed to operate as an integral node within a multi-layer automation hierarchy — coordinating signal acquisition, logic execution, and inter-subsystem communication across the control layer, I/O layer, network layer, power layer, HMI layer, and actuator layer. Its role in the Advant OCS platform makes it a critical component for engineers seeking to maintain system consistency, expand control capacity, and ensure long-term operational reliability in demanding industrial environments.

In a fully realized Advant OCS architecture, the GJR2395500R1210 83SR50C-E occupies the control processing tier, where it interfaces directly with distributed I/O modules, field signal conditioners, and communication buses. Its integration with the Advant backplane infrastructure allows seamless data exchange with adjacent modules without introducing latency or signal degradation. This makes it particularly valuable in applications where deterministic control response is non-negotiable — such as continuous process control in petrochemical plants, power generation facilities, and water treatment systems.

Product Specification Table

System Compatibility Notes

The GJR2395500R1210 83SR50C-E achieves its full potential when deployed within a coordinated Advant OCS system architecture. At the control layer, it works in tandem with the ABB PM511V16 Processor Module and ABB PM510V16 CPU to distribute processing load across the control network, ensuring that no single node becomes a bottleneck during high-throughput operations. The module communicates upstream with the ABB CI522A PROFIBUS DP Communication Interface, enabling real-time data exchange with field devices and remote I/O stations.

At the I/O layer, the 83SR50C-E interfaces with ABB AI810 Analog Input Modules and ABB DO810 Digital Output Modules, receiving process variable signals and issuing control commands to actuators and drives. These I/O modules are mounted on the same Advant OCS backplane, allowing the control module to access field data with minimal scan cycle overhead. For applications requiring high-density signal acquisition, the ABB AI820 8-Channel Analog Input Module can be paired alongside to expand the system’s measurement capacity without requiring additional controller resources.

Power integrity is maintained through the ABB SD821 Power Supply Unit, which provides regulated DC voltage to the backplane and all installed modules, including the GJR2395500R1210 83SR50C-E. In redundant power configurations, a secondary ABB SD822 Power Supply can be installed in parallel to eliminate single points of failure — a critical design consideration for continuous process industries. The backplane itself, typically the ABB TB820V2 ModuleBus Modem or equivalent rack infrastructure, provides the physical and electrical foundation for all module interconnections.

At the HMI layer, operator stations running ABB Advant Station 500 Series software connect to the control network via MasterBus 300 or Ethernet gateways, providing real-time visualization of process variables managed by the GJR2395500R1210 83SR50C-E. This end-to-end integration — from field sensor through I/O module, control processor, communication gateway, and operator interface — defines the system integration capability that makes the Advant OCS platform a preferred choice for complex, multi-loop process control environments.

Industrial Application Notes

The GJR2395500R1210 83SR50C-E has demonstrated reliable performance across a broad spectrum of industrial automation applications. In power generation and grid management, it supports turbine control sequencing, excitation system monitoring, and protection relay coordination within substation automation architectures. Its deterministic scan cycle and robust communication stack make it suitable for time-critical switching operations where millisecond-level response is required.

In petrochemical and refinery operations, the module is deployed within distributed control systems managing reactor temperature loops, pressure regulation, and flow control across multi-unit process trains. Its compatibility with PROFIBUS DP field devices allows direct integration with smart transmitters, control valves, and variable frequency drives without requiring additional protocol converters. This reduces panel wiring complexity and simplifies commissioning in brownfield upgrade projects where existing Advant OCS infrastructure is being extended rather than replaced.

For water and wastewater treatment facilities, the GJR2395500R1210 83SR50C-E provides the control backbone for pump station sequencing, chemical dosing control, and SCADA data aggregation. Its ability to operate continuously in high-humidity environments — common in water treatment plant control rooms — combined with its warranty terms confirmed during quotation coverage, makes it a cost-effective choice for municipal infrastructure operators managing long asset lifecycles with limited maintenance budgets.

In mining and metallurgical processing, the module supports conveyor control, crusher sequencing, and flotation cell management within integrated plant automation systems. Its modular architecture allows maintenance engineers to replace individual modules during scheduled shutdowns without disrupting adjacent control loops — a significant operational advantage in continuous production environments where unplanned downtime carries substantial financial penalties.

Packaging and discrete manufacturing applications benefit from the module’s fast I/O scan rates and its ability to coordinate motion sequences across multiple axes when paired with ABB drive systems. In these environments, the GJR2395500R1210 83SR50C-E serves as the central logic controller for line synchronization, reject handling, and production count reporting — functions that require both high-speed response and reliable long-term operation.

Product Compatibility FAQ

Q1: Is the GJR2395500R1210 83SR50C-E compatible with existing Advant OCS racks and backplanes from earlier system generations?
A: Yes. The 83SR50C-E is designed to the Advant OCS module form factor and backplane interface standard, making it compatible with existing Advant OCS rack infrastructure including earlier S100 and S800 I/O system backplanes where the module bus interface is preserved. Engineers should verify the firmware revision of the host CPU module (such as the PM511V16 or PM510V16) to confirm compatibility with the specific revision of the 83SR50C-E being installed. ZYPLC provides pre-shipment functional testing and revision documentation to support integration planning.

Q2: What commissioning steps are required when installing the GJR2395500R1210 83SR50C-E as a replacement in a live Advant OCS system?
A: Replacement commissioning typically involves three phases: (1) configuration backup of the existing module’s parameter set using ABB Advant Builder or equivalent engineering tool; (2) physical installation of the 83SR50C-E into the designated rack slot with the system in maintenance mode; and (3) parameter restore and functional verification of all associated I/O channels and communication links. ZYPLC recommends performing a cold-start verification cycle after installation to confirm that all module diagnostics clear without fault codes. The warranty terms confirmed during quotation covers any module-level defects identified during this commissioning phase.

Q3: How does ZYPLC’s warranty terms confirmed during quotation and stock availability support long-term maintenance planning for Advant OCS systems?
A: ZYPLC maintains dedicated inventory of Advant OCS modules, including the GJR2395500R1210 83SR50C-E, to support both planned maintenance cycles and emergency replacement requirements. Each unit is subject to functional testing prior to shipment, and the warranty terms confirmed during quotation provides coverage against operational defects under normal installation and operating conditions. For facilities managing multi-year maintenance contracts, ZYPLC offers reserved stock arrangements to ensure module availability aligns with scheduled outage windows — eliminating the procurement lead time risk that is common with legacy ABB Advant OCS components.
