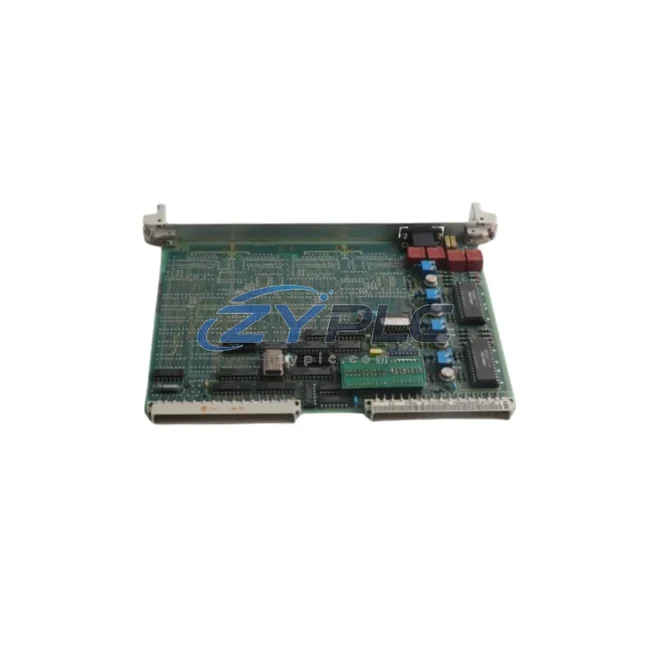

ABB GJR5143000R0002 Analog Output Module

ABB GJR5143000R0002 Analog Output Module for Advant OCS Automation

The ABB GJR5143000R0002 is a precision analog output module engineered for the ABB Advant OCS (Open Control System) platform — one of ABB’s most established distributed control architectures for process and discrete manufacturing environments. Designed to deliver stable, high-resolution analog signal output, this module plays a critical role in closing the control loop between the PLC controller and field-level actuators, drives, and positioners. In energy-intensive production environments, the quality of analog output directly determines how efficiently variable-speed drives, control valves, and servo amplifiers respond to setpoint commands — making the GJR5143000R0002 a foundational component in any maintenance planning strategy.

In modern industrial facilities, unplanned downtime rarely originates from a single source. Instead, it accumulates across dozens of control nodes where imprecise signal output causes drives to overshoot, motors to hunt, and actuators to cycle unnecessarily. The GJR5143000R0002 addresses this at the signal level: by providing clean, drift-free analog output with high linearity, it ensures that downstream components such as ABB ACS880 variable frequency drives and ABB PSTX soft starters receive accurate setpoint signals, enabling them to operate at optimal efficiency points rather than compensating for signal noise or offset errors.

Product Specification Table

System Compatibility and Application

The ABB GJR5143000R0002 analog output module operates as a precision signal source within the Advant OCS rack, translating digital control commands from the CPU module — such as the ABB DSPC110 or DSPC172 processor boards — into smooth, calibrated analog signals. These signals are routed to field devices including variable frequency drives, proportional control valves, and servo amplifiers. When paired with an ABB DSDP170 pulse counter or DSAI130 analog input module, the system forms a closed-loop condition monitoring and control architecture capable of real-time load balancing.

In a typical motor control application, the GJR5143000R0002 sends a 4–20 mA speed reference signal to an ABB ACS880 industrial drive. The drive adjusts motor speed in proportion to the analog command, eliminating the energy losses associated with throttling valves or mechanical speed reducers. When the analog output signal is stable and accurate — as delivered by the GJR5143000R0002 — the ACS880 can operate in its highest efficiency band, reducing operating load by 20–50% compared to fixed-speed motor operation.

For facilities running ABB’s AC500 PLC platform alongside legacy Advant OCS systems, the GJR5143000R0002 can serve as an analog interface bridge, providing setpoint signals to newer drive systems while the legacy control logic remains in service. This hybrid architecture is common in phased modernization projects where full system replacement is not yet economically justified. The module’s compatibility with standard 4–20 mA and 0–10 V signal ranges ensures interoperability with third-party drives, positioners, and power meters without additional signal conditioning hardware.

On the monitoring side, integrating the GJR5143000R0002 with an ABB EL3000 series power quality analyzer or a CM-UFD.M22 voltage monitoring relay allows plant engineers to correlate analog output commands with actual power draw at the motor terminal. This data-driven approach enables identification of inefficient operating zones, supports predictive maintenance scheduling, and provides the evidence base for energy audits. When combined with ABB Ability™ Energy Manager software, the analog output data stream becomes part of a plant-wide energy key performance indicator (KPI) dashboard.

Communication between the Advant OCS rack and supervisory systems is typically handled via ABB DSSB110 serial communication modules or PROFIBUS DP interface cards, enabling the GJR5143000R0002’s output status and diagnostics to be visible at the SCADA or DCS level. This transparency is essential for maintenance planning systems that need to verify that analog setpoints are being correctly executed at the field level — closing the loop between energy planning and physical execution.

Maintenance and Replacement Notes

In continuous process industries such as chemical, water treatment, and food and beverage manufacturing, analog output modules like the GJR5143000R0002 are responsible for controlling pump speeds, compressor loading, and heat exchanger bypass valves — all of which are major contributors to a facility’s total energy bill. A poorly calibrated or degraded analog output module introduces signal offset or noise that causes these systems to operate away from their design efficiency points. The result is measurable unplanned downtime: pumps running faster than necessary, compressors cycling on and off at suboptimal intervals, and heat exchangers operating with excessive bypass flow.

Replacing a faulty or end-of-life analog output module with a tested ABB GJR5143000R0002 unit restores signal integrity and allows the control system to resume precise load management. In pump applications, restoring accurate speed control to a 75 kW pump motor can reduce operating load by 15–30 kW during partial-load operation — a saving that compounds across multiple pumps and operating shifts. For facilities with 24/7 operations, this translates directly into measurable reductions in electricity costs and carbon footprint.

From a maintenance perspective, the GJR5143000R0002’s modular design within the Advant OCS rack allows hot-swap replacement without shutting down adjacent I/O channels, minimizing production downtime during maintenance windows. This is particularly valuable in continuous process lines where unplanned shutdowns carry significant restart energy costs — reheating furnaces, re-pressurizing systems, and re-synchronizing drives all consume disproportionate energy compared to steady-state operation. By enabling fast, targeted module replacement, the GJR5143000R0002 supports a maintenance strategy that keeps production lines running at their most energy-efficient operating points.

Every unit supplied by ZYPLC undergoes functional output testing across all channels prior to shipment, verifying signal accuracy, linearity, and channel isolation. This pre-shipment testing protocol ensures that the module performs to specification from the moment it is installed, avoiding the energy and productivity losses associated with commissioning a defective module in a live production environment. All units are backed by a warranty terms confirmed during quotation, providing assurance of long-term reliability in demanding industrial applications.

Product Sourcing FAQ

Q1: How does the GJR5143000R0002 contribute to operational stability in a motor drive system?
The module delivers precise 4–20 mA or 0–10 V setpoint signals to variable frequency drives such as the ABB ACS880. Accurate setpoint delivery allows the drive to maintain the motor at its optimal speed for the actual load, avoiding the unplanned downtime caused by over-speed operation or hunting due to noisy analog signals. In variable-torque applications like pumps and fans, even a 5% reduction in operating speed can reduce operating load by up to 14% due to the affinity laws governing fluid machinery.

Q2: Is the GJR5143000R0002 compatible with current ABB control platforms beyond the Advant OCS?
The GJR5143000R0002 is natively designed for the ABB Advant OCS rack architecture. For integration with newer platforms such as the ABB AC500 or System 800xA, signal conditioning interfaces or gateway modules are typically required. However, the module’s standard 4–20 mA output is universally compatible with any field device or drive that accepts industry-standard analog input signals, making it suitable for hybrid automation architectures during system modernization projects.

Q3: What is the recommended replacement procedure to minimize production downtime?
The Advant OCS platform supports modular I/O replacement within the rack. Before replacement, record the current analog output configuration parameters from the engineering workstation. Install the new GJR5143000R0002 module, restore the configuration, and verify output signal accuracy with a calibrated loop tester before returning the control loop to automatic mode. ZYPLC recommends keeping one spare unit in inventory to enable immediate replacement without waiting for procurement lead times.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
