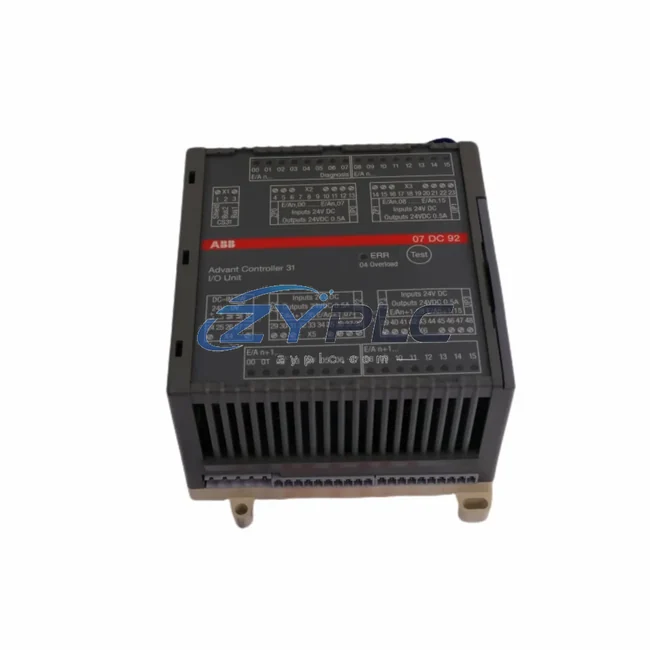

The ABB GJR5252200R0101, commonly referenced by its module designation 07DC92, is a configurable digital I/O module engineered for deployment within ABB’s Advant OCS distributed control system architecture. Rather than functioning as a standalone component, this module is designed to operate as an integral node within a layered automation hierarchy — bridging the field signal layer and the control execution layer with precision, reliability, and long-term serviceability.

In modern industrial control architectures, the integrity of the I/O layer directly determines the responsiveness and accuracy of the entire control loop. The 07DC92 module addresses this requirement by providing configurable digital input and output channels that can be mapped to process signals across a wide range of industrial environments, including manufacturing, power generation, petrochemical processing, water treatment, metallurgy, and packaging lines. Its compatibility with the Advant OCS platform ensures that signal acquisition, conditioning, and transmission are handled consistently within the system’s defined communication and data exchange protocols.

Within a complete Advant OCS control cabinet, the GJR5252200R0101 module is typically installed alongside the PM511 or PM510 processor modules, which serve as the central execution units managing scan cycles, logic processing, and inter-module communication. The 07DC92 connects to the system backplane — such as the TB511 or TB510 termination board — which provides the physical and electrical interface between the I/O module and the field wiring. This backplane-based architecture ensures that module replacement or reconfiguration can be performed without disturbing field wiring, significantly reducing maintenance downtime during scheduled or corrective interventions.

Signal flow within the Advant OCS architecture begins at the field device level, where sensors, actuators, and switches generate discrete signals that are routed through marshalling terminals into the 07DC92’s input channels. These signals are then processed and transmitted via the internal S100 I/O bus to the processor module, where control logic — programmed through ABB’s Master software environment — evaluates conditions and issues output commands back through the module’s output channels to field actuators, relays, or solenoid valves. The AI810 and AO810 analog I/O modules often operate in parallel within the same rack, handling continuous process variables while the 07DC92 manages discrete switching functions.

For applications requiring communication transparency and system-level diagnostics, the Advant OCS architecture supports integration with the MasterBus 300 or PROFIBUS DP communication layers. The CI532 or CI534 communication interface modules facilitate data exchange between the I/O layer and supervisory SCADA systems or historian platforms, enabling real-time monitoring of module status, channel diagnostics, and fault conditions. The 07DC92’s channel-level diagnostics contribute to this visibility by reporting signal state and fault flags that can be surfaced through the operator interface or engineering workstation.

At the human-machine interface layer, the Advant OCS system typically integrates with ABB’s Operate IT or legacy OperateIT panel solutions, providing operators with real-time process visualization and alarm management. The digital states managed by the GJR5252200R0101 module — such as valve open/closed status, motor run/stop feedback, or interlock conditions — are directly reflected in the HMI displays, ensuring that control room operators maintain accurate situational awareness of field conditions.

For redundancy-critical applications in power generation or petrochemical facilities, the Advant OCS architecture supports redundant processor and I/O configurations. In these deployments, the 07DC92 module may be paired with a redundant counterpart, with the SC510 or SC520 system controller managing switchover logic to ensure uninterrupted control in the event of a module failure. This redundancy capability is a key architectural advantage of the Advant OCS platform and is fully supported by the GJR5252200R0101’s design.

From a long-term maintenance perspective, the 07DC92 module’s modular form factor and standardized backplane interface simplify spare parts management. Facilities operating legacy Advant OCS installations benefit from maintaining a stock of GJR5252200R0101 modules as critical spares, reducing mean time to repair (MTTR) during unplanned outages. ZYPLC maintains verified inventory of this module, with each unit subjected to functional testing prior to shipment to confirm channel integrity, communication handshake, and power consumption within specification.

Product Specification Table

System Compatibility Notes

The GJR5252200R0101 07DC92 module achieves its full operational value when integrated within a coordinated Advant OCS system architecture. At the processor layer, the PM511 processor module manages the execution of control logic and coordinates data exchange across all I/O modules installed in the rack. The 07DC92 communicates with the PM511 via the S100 I/O bus, ensuring deterministic signal latency and consistent scan cycle performance.

Physical installation relies on the TB511 or TB510 termination board, which provides screw-terminal field wiring connections and the backplane interface. This design allows the 07DC92 to be removed and replaced without disconnecting field cables — a critical feature for facilities that cannot tolerate extended maintenance windows. Adjacent to the digital I/O module, the AI810 analog input module and AO810 analog output module handle continuous process variables such as temperature, pressure, and flow, creating a complete mixed-signal I/O layer within a single rack assembly.

At the communication layer, the CI532 PROFIBUS DP communication interface module enables the Advant OCS system to exchange data with upstream SCADA platforms, DCS historians, or remote engineering workstations. For facilities using MasterBus 300 as the primary control network, the CI534 module provides the corresponding gateway function. These communication modules ensure that the digital states managed by the 07DC92 are visible and actionable at every level of the control hierarchy.

Power distribution within the control cabinet is managed by the PS501 or equivalent Advant OCS power supply module, which provides regulated 24 VDC to the backplane and all installed I/O modules. Stable power delivery is essential for maintaining the signal integrity of the 07DC92’s digital channels, particularly in environments with significant electrical noise from variable frequency drives or large motor starters. The SC510 system controller module provides supervisory coordination across multiple racks in larger installations, managing redundancy switchover and system-wide diagnostics.

Industrial Application Notes

The ABB GJR5252200R0101 07DC92 module is deployed across a broad range of industrial sectors where the Advant OCS platform remains the established control infrastructure. In power generation facilities, the module manages discrete signals associated with turbine control interlocks, breaker status feedback, and auxiliary equipment monitoring. Its reliable digital I/O performance supports the high-availability requirements of grid-connected generation assets, where unplanned control system failures carry significant operational and financial consequences.

In petrochemical and refinery applications, the 07DC92 handles valve position feedback, pump run/stop commands, and safety interlock signals within process units operating under continuous production schedules. The module’s compatibility with the Advant OCS redundancy architecture ensures that critical process control functions remain available even during module-level maintenance activities.

Water treatment and municipal utility facilities operating legacy Advant OCS installations rely on the GJR5252200R0101 for pump station control, flow diversion valve management, and alarm signal aggregation. The module’s long service life and availability as a verified spare part make it a practical choice for facilities managing aging control infrastructure with limited capital budgets for full system replacement.

In metallurgical and mining operations, the 07DC92 supports discrete control functions within ore processing, conveyor management, and crusher control systems. The module’s robust design and wide operating temperature range accommodate the demanding environmental conditions typical of these facilities. Packaging and discrete manufacturing lines use the module for machine interlock management, cycle count signals, and safety circuit monitoring, integrating seamlessly with the broader Advant OCS control architecture that governs production line sequencing and quality control logic.

Product Compatibility FAQ

Q1: Is the ABB GJR5252200R0101 07DC92 compatible with all Advant OCS rack configurations?
The 07DC92 is designed for the ABB Advant OCS S100 I/O bus architecture and is compatible with standard Advant OCS rack assemblies using TB511 or TB510 termination boards. Compatibility with specific rack configurations should be verified against the installed processor module (e.g., PM511 or PM510) and the system’s I/O bus addressing scheme. ZYPLC’s technical team can assist with compatibility verification prior to order confirmation.

Q2: Can the 07DC92 be integrated into a redundant Advant OCS architecture, and what additional modules are required?
Yes, the GJR5252200R0101 supports deployment in redundant Advant OCS configurations. Redundancy at the I/O layer typically requires a paired module and the appropriate system controller — such as the SC510 or SC520 — to manage switchover logic. The specific redundancy configuration depends on the system design and the criticality of the signals managed by the module. Engineering documentation for the existing installation should be consulted to confirm the redundancy topology before procurement.

Q3: What testing and warranty coverage is provided with the GJR5252200R0101 07DC92 from ZYPLC?
Every GJR5252200R0101 07DC92 module supplied by ZYPLC undergoes functional testing prior to shipment, including channel integrity verification, S100 bus communication handshake confirmation, and power consumption measurement. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement or repair support with documented test records available upon request.

—
