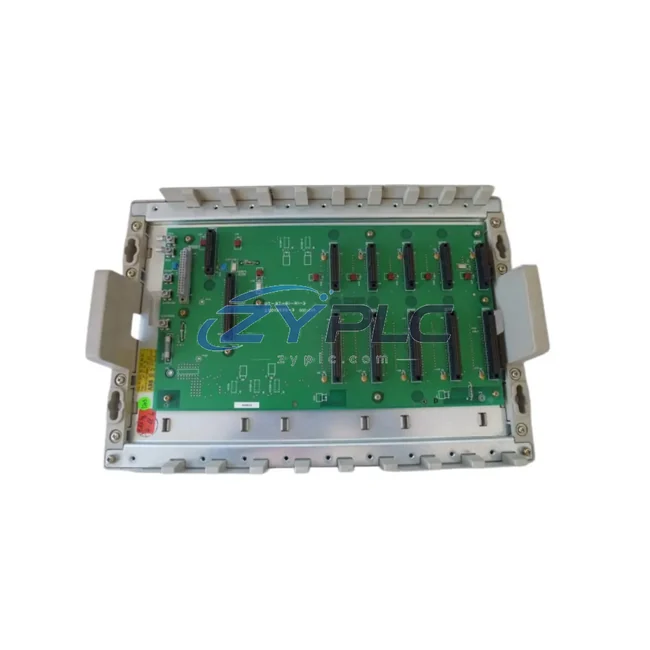

ABB GJV3074353R1 Analog Input for MOD 300

ABB GJV3074353R1 Analog Input for MOD 300: Compatibility and Replacement Notes

The ABB GJV3074353R1 is a precision analog input module engineered for seamless integration within the Advant MOD 300 Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, this module occupies a critical position within a layered automation hierarchy — bridging field-level process signals with the supervisory control layer, enabling real-time data acquisition, signal conditioning, and system-wide process visibility. Its role spans the I/O layer, communicating upward to the control layer and downward to field instrumentation, making it an indispensable element in any MOD 300-based control cabinet deployment.

In modern industrial automation, the integrity of analog signal acquisition directly determines the quality of process control decisions. The GJV3074353R1 is designed to accept standard analog input signals — typically 4–20 mA or 0–10 V process variables — from field transmitters such as pressure, temperature, flow, and level sensors. These signals are digitized and transmitted via the MOD 300 internal bus to the CPU module, where control algorithms execute closed-loop regulation. This signal flow is foundational to maintaining process stability across manufacturing, power generation, petrochemical, and water treatment applications.

Product Specification Table

System Compatibility Notes

The GJV3074353R1 does not operate in isolation — its value is realized through coordinated interaction with the full suite of MOD 300 system components. At the control layer, the ABB DSPC110 CPU Module or DSPC172 Processor Unit receives digitized analog data from the GJV3074353R1 via the backplane bus, executing PID control loops and process logic in real time. Redundant CPU configurations using paired DSPC modules ensure that analog input data remains continuously available even during processor failover events.

At the power layer, the ABB DSSB110 Power Supply Module provides stable 24 VDC backplane power, ensuring that the GJV3074353R1 and co-installed I/O modules maintain consistent electrical performance under varying load conditions. Power redundancy configurations using dual DSSB110 units are standard practice in high-availability MOD 300 installations.

For digital I/O coordination, the ABB DSDI110 Digital Input Module and DSDO110 Digital Output Module are typically installed in adjacent backplane slots, enabling the control system to correlate analog process variables with discrete equipment states — for example, linking a flow transmitter reading (analog) with a pump run/stop status (digital) to implement interlock logic.

Communication between the MOD 300 rack and supervisory SCADA or DCS operator stations is handled by the ABB DSMB127 Communication Module or DSCS140 Serial Communication Unit, which relay processed analog data upstream to the human-machine interface layer. HMI platforms such as the ABB Operate IT / System 800xA operator workstation display real-time analog trends, alarm states, and historical data logs derived from GJV3074353R1 inputs.

At the field termination layer, ABB DSAI130 Analog Input Terminal Units or equivalent marshalling panels provide the physical wiring interface between field transmitters and the GJV3074353R1 module, ensuring clean signal routing and simplified maintenance access. Proper terminal unit selection is essential for maintaining signal accuracy and reducing noise interference in long cable runs typical of petrochemical and power plant environments.

Industrial Application Notes

The GJV3074353R1 finds application across a broad spectrum of process industries where the MOD 300 DCS platform has been deployed. In power generation facilities, it monitors boiler drum level, steam pressure, and turbine inlet temperature — critical analog variables that feed directly into combustion control and load-following algorithms. In petrochemical and refinery operations, it acquires flow and pressure signals from distillation columns, heat exchangers, and reactor vessels, supporting continuous process optimization and safety interlock systems.

In water and wastewater treatment plants, the module interfaces with pH sensors, dissolved oxygen probes, and flow meters, enabling automated dosing control and regulatory compliance monitoring. Mining and metallurgical applications leverage the GJV3074353R1 for conveyor load monitoring, crusher pressure feedback, and flotation cell level control — environments where robust analog acquisition under harsh electrical conditions is non-negotiable.

For packaging and discrete manufacturing lines that incorporate process control elements — such as temperature-controlled curing ovens or pressure-regulated filling stations — the GJV3074353R1 provides the analog acquisition backbone that ensures product quality consistency across production batches. Its compatibility with the MOD 300 backplane architecture means that expanding analog input capacity requires only the addition of further GJV3074353R1 modules into available rack slots, with no changes to the CPU or communication infrastructure.

Product Compatibility FAQ

Q1: Is the GJV3074353R1 compatible with both early and late-generation MOD 300 backplane configurations?
A: Yes. The GJV3074353R1 is designed for the standard MOD 300 backplane bus and is compatible across the MOD 300 system generations. It slots into any available I/O position within a MOD 300 rack alongside CPU, power supply, digital I/O, and communication modules. For mixed-generation installations, verify backplane revision compatibility with your ABB system documentation or contact our engineering team prior to ordering.

Q2: Can the GJV3074353R1 be used in a redundant I/O architecture, and what companion modules are required?
A: Redundant analog input configurations in MOD 300 systems typically involve pairing the GJV3074353R1 with a redundant counterpart module and configuring the CPU (e.g., DSPC110 or DSPC172) for dual-channel input voting or switchover logic. The DSSB110 redundant power supply and DSMB127 communication module support the overall redundancy architecture. Our team can advise on the specific module complement required for your redundancy specification.

Q3: What does the warranty terms confirmed during quotation cover, and how is long-term maintenance supported?
A: The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. For long-term maintenance, we supports RFQ sourcing for GJV3074353R1 modules and related MOD 300 components to support rapid replacement without extended lead times. Our technical support team provides pre-sales compatibility verification, installation guidance, and post-sales troubleshooting assistance to minimize system downtime.
