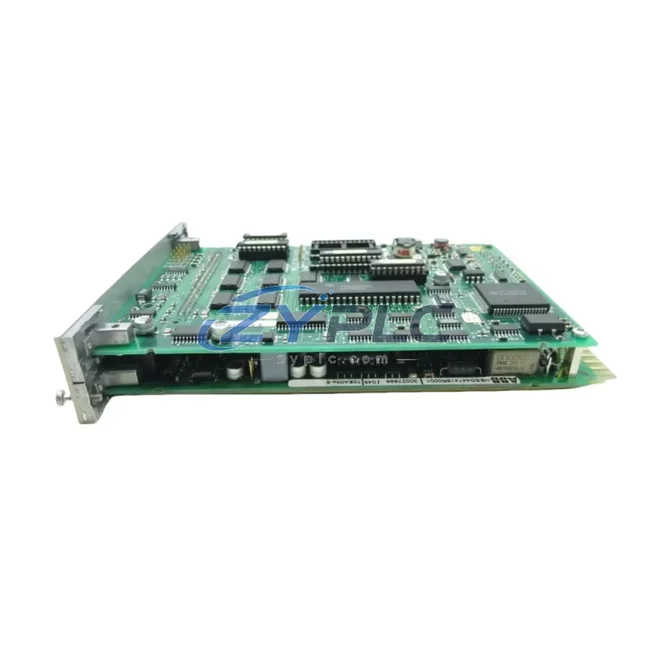

ABB GKWE857900R1210 Industrial Network Interface for ACS Drives Series

ABB GKWE857900R1210 Industrial Network Interface for ACS Drives Series: Bridging Field Devices and Smart Factory Data Links

The ABB GKWE857900R1210 is a dedicated PROFIBUS communication and control module engineered for ABB’s ACS series variable frequency drives. Designed to serve as a high-integrity industrial network interface, this module enables seamless PROFIBUS DP protocol integration between drive-level field devices and upper-level control systems — including PLCs, SCADA platforms, DCS architectures, and HMI supervisory layers. In modern smart factory environments where data transparency, real-time responsiveness, and system interoperability are non-negotiable, the GKWE857900R1210 delivers a robust, field-proven connectivity solution that eliminates data isolation and accelerates industrial digitalization.

As manufacturing sites evolve toward Industry 4.0 architectures, the demand for reliable protocol gateways and communication modules has never been greater. The ABB GKWE857900R1210 addresses this need directly — providing a stable, low-latency PROFIBUS DP data channel that connects ACS drive systems into the broader automation network with minimal configuration overhead and maximum signal integrity.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the ABB GKWE857900R1210 sits at the intersection of drive-level signal acquisition and plant-wide network communication. The data flow begins at the motor and drive layer: an ABB ACS880 or ACS550 variable frequency drive monitors motor speed, torque, current draw, and thermal status in real time. The GKWE857900R1210 module, installed directly into the drive’s option slot, captures this operational data and encodes it into PROFIBUS DP frames for upstream transmission.

These PROFIBUS frames travel across the fieldbus backbone to a PROFIBUS DP master — typically a Siemens S7-300 or S7-400 PLC, or an ABB AC500 controller — where the data is processed, compared against setpoints, and used to generate control commands. In parallel, the PLC forwards aggregated drive data to a Siemens WinCC SCADA or ABB System 800xA DCS platform via Industrial Ethernet, enabling operators to visualize drive performance across the entire production line from a centralized HMI workstation.

For sites running mixed-protocol architectures, the GKWE857900R1210 can interface with a PROFIBUS-to-Modbus TCP gateway or an edge computing node — such as a Moxa MGate or Advantech ADAM series gateway — allowing drive data to be forwarded to cloud-based MES or ERP systems without disrupting the existing PROFIBUS network topology. Remote I/O modules, such as ABB S800 I/O or Siemens ET 200S distributed I/O, can coexist on the same PROFIBUS segment, sharing bandwidth efficiently under the master-slave polling architecture.

At the sensor and instrumentation layer, process signals from Endress+Hauser flow transmitters, pressure sensors, and temperature probes are aggregated through remote I/O nodes and passed through the PROFIBUS network alongside drive data — creating a unified, time-synchronized data stream that feeds SCADA alarm management, historian databases, and predictive maintenance analytics engines. The GKWE857900R1210 ensures that drive-originated data arrives at the control layer with deterministic timing, supporting closed-loop control strategies that depend on sub-100ms cycle times.

For power distribution and energy monitoring integration, the module’s PROFIBUS connectivity allows the ACS drive system to report energy consumption data to ABB Ability Energy Manager or third-party power monitoring platforms, supporting ISO 50001 energy management compliance and real-time power optimization across the factory floor.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and transitional industrial environments is protocol fragmentation — where drives, PLCs, sensors, and HMI systems speak different communication languages, creating data silos that prevent plant-wide visibility and coordinated control. The ABB GKWE857900R1210 directly addresses this challenge by providing a standardized PROFIBUS DP interface that integrates ACS series drives into any PROFIBUS-capable control architecture without requiring custom wiring or proprietary middleware.

Sites that previously relied on analog 4–20mA signals or hardwired digital I/O for drive control can migrate to PROFIBUS-based digital communication using the GKWE857900R1210, immediately gaining access to rich diagnostic data — including drive fault codes, warning states, runtime hours, and parameter values — that was previously inaccessible to the control system. This transition from signal-level to data-level integration is the foundation of production line transparency and condition-based maintenance strategies.

Remote monitoring and diagnostics are equally transformed. With the GKWE857900R1210 in place, maintenance engineers can access drive status, fault history, and parameter configurations from a SCADA workstation or remote HMI panel without physically visiting the drive cabinet. This capability is critical for large facilities, multi-building campuses, or geographically distributed production sites where on-site inspection is time-consuming and costly.

System scalability is another key advantage. As production capacity expands, additional ACS drives equipped with GKWE857900R1210 modules can be added to the existing PROFIBUS segment with minimal network reconfiguration — supporting up to 126 nodes per PROFIBUS DP segment. This plug-and-participate architecture ensures that the communication infrastructure grows with the facility, protecting the initial network investment and reducing integration costs for future expansions.

Every unit of the ABB GKWE857900R1210 supplied by ZYPLC undergoes pre-shipment functional testing to verify PROFIBUS communication integrity, parameter read/write capability, and diagnostic response. Units are shipped with full documentation and are backed by a warranty terms confirmed during quotation, ensuring operational confidence from day one of installation.

Industrial Connectivity FAQ

Q1: What PROFIBUS DP baud rates does the ABB GKWE857900R1210 support?
The GKWE857900R1210 supports standard PROFIBUS DP baud rates ranging from 9.6 kbps up to 12 Mbps, automatically adapting to the baud rate set by the PROFIBUS master. This ensures compatibility with both legacy low-speed networks and high-speed modern PROFIBUS installations without manual configuration.

Q2: Is the GKWE857900R1210 compatible with Siemens S7 PLCs and third-party PROFIBUS masters?
Yes. The module complies with the PROFIBUS DP standard (IEC 61158), making it interoperable with any certified PROFIBUS DP master, including Siemens S7-300/400/1500 PLCs, Schneider Modicon M340/M580, Rockwell ControlLogix with PROFIBUS scanner cards, and ABB AC500 controllers. A GSD file is available for seamless integration into the master’s hardware configuration tool.

Q3: How does the GKWE857900R1210 support network stability in high-noise industrial environments?
The module is designed to ABB’s industrial-grade EMC standards, with robust signal isolation and error-detection mechanisms built into the PROFIBUS DP protocol layer. In the event of a communication interruption, the module supports configurable watchdog timeout behavior — allowing the drive to maintain its last commanded state or execute a safe stop sequence, preventing uncontrolled process shutdowns due to transient network disturbances.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the GKWE857900R1210?
All ABB GKWE857900R1210 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional verification, including PROFIBUS communication handshake testing, parameter access validation, and diagnostic response checks. Availability is confirmed via RFQ for shipment arranged after confirmation with full export documentation, supporting fast delivery to industrial sites globally.
