ABB HAC024775-004 Industrial Network Interface for IRC5 Systems

ABB HAC024775-004: Industrial Data Link and Smart Factory Connectivity for IRC5 Systems

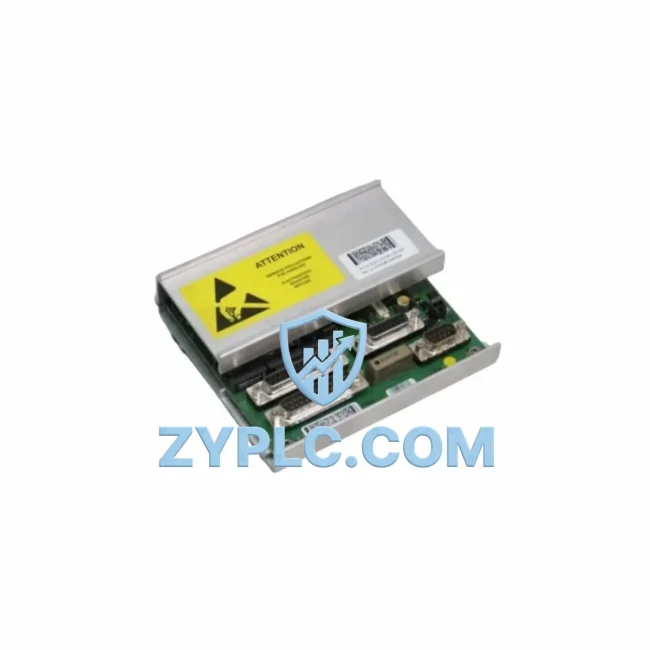

The ABB HAC024775-004 is a high-performance industrial network interface module engineered for the IRC5 Robot Controller platform, delivering seamless protocol bridging and real-time data communication across modern smart factory environments. Designed to integrate ABB IRB-series robots — including the IRB460, IRB660, and IRB760 — into unified industrial networks, this module serves as the critical communication backbone between field-level devices and upper-level control and monitoring systems.

In today’s connected manufacturing landscape, the ability to transmit accurate, low-latency data from robotic end-effectors and motion controllers to SCADA platforms, HMI terminals, and MES systems is no longer optional — it is the foundation of operational transparency. The HAC024775-004 addresses this need directly, enabling the IRC5 controller to participate fully in EtherNet/IP and PROFINET network architectures without additional protocol converters or middleware layers.

Network Communication Table

Connected Automation Data Flow

The HAC024775-004 sits at the intersection of robot-level execution and plant-wide data orchestration. In a typical smart factory deployment, the IRC5 controller — equipped with this network interface module — connects directly to a Siemens S7-1500 PLC or Allen-Bradley ControlLogix controller via PROFINET or EtherNet/IP, enabling synchronized motion sequencing and I/O coordination without polling delays.

Upstream from the PLC layer, process data flows through an industrial managed Ethernet switch — such as the Hirschmann RS20 or Moxa EDS-510A — ensuring deterministic packet delivery across the production network. The HAC024775-004 supports cyclic data exchange at millisecond intervals, making it suitable for high-speed palletizing lines where the IRB460 operates at peak throughput alongside conveyor encoders and vision sensors.

At the field level, signals from Keyence IV3 vision sensors and Sick S300 safety scanners feed into the IRC5 controller’s I/O bus, with the HAC024775-004 relaying processed status data upstream to Wonderware InTouch HMI or Ignition SCADA platforms. Operators gain real-time visibility into robot cycle times, fault codes, torque feedback, and axis position data — all without leaving the SCADA dashboard.

For remote I/O expansion, the IRC5 system can interface with ABB AC500 remote I/O modules or Phoenix Contact Axioline F distributed I/O stations via the same EtherNet/IP backbone, extending the data acquisition perimeter to temperature sensors, pressure transmitters, and pneumatic valve islands across the production cell. The HAC024775-004 ensures that all field data is timestamped and delivered to the historian layer with sub-second latency.

In drive-integrated applications, the module coordinates with ABB ACS880 variable frequency drives controlling conveyor motors and servo axes, exchanging speed references and status words over the industrial network. This tight integration eliminates the need for dedicated point-to-point wiring between the robot controller and drive systems, reducing cabinet complexity and commissioning time.

Edge computing nodes — such as the Advantech UNO-2484G industrial edge gateway — can subscribe to the HAC024775-004’s data stream via OPC-UA bridging, enabling local analytics, predictive maintenance algorithms, and anomaly detection without burdening the central SCADA server. This architecture supports the incremental digitalization roadmap common in brownfield factory upgrades.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of legacy fieldbus systems — Modbus RTU, DeviceNet, Profibus DP — alongside modern Ethernet-based networks. The ABB HAC024775-004, integrated within the IRC5 platform, acts as a protocol normalization point, allowing the robot controller to communicate natively with EtherNet/IP and PROFINET devices while gateway modules handle translation for older fieldbus segments.

Data silos — where robot controllers, CNC machines, and conveyor PLCs each maintain isolated data pools — are eliminated when the HAC024775-004 enables the IRC5 to publish its operational data to a shared industrial network. SCADA systems can then aggregate robot cycle counts, fault histories, and production throughput alongside data from other machines, providing plant managers with a unified operational picture.

Remote monitoring and diagnostics become straightforward with the HAC024775-004 in place. Maintenance engineers can access IRC5 controller diagnostics, error logs, and axis health data from a remote workstation or mobile HMI without physical access to the robot cell. This capability is particularly valuable in hazardous environments or geographically distributed facilities where on-site intervention is costly.

Production line transparency — knowing exactly which robot performed which operation, at what time, and with what result — is achievable when the HAC024775-004 feeds structured data into MES and ERP systems. Traceability records, OEE calculations, and shift reports can be generated automatically, reducing manual data entry and the risk of transcription errors.

System scalability is built into the HAC024775-004’s network architecture. As production capacity grows, additional IRC5 controllers, remote I/O nodes, and smart sensors can be added to the EtherNet/IP or PROFINET ring without reconfiguring the existing network topology. The module supports standard network management protocols, simplifying integration with IT infrastructure and cybersecurity frameworks.

Industrial Connectivity FAQ

Q1: What is the communication latency of the HAC024775-004 in an EtherNet/IP network?
The HAC024775-004 supports cyclic data exchange with configurable RPI (Requested Packet Interval) values, typically achieving deterministic communication latency in the 1–10 ms range depending on network load and switch configuration. For time-critical applications, it is recommended to use a managed industrial Ethernet switch with QoS prioritization.

Q2: Is the HAC024775-004 compatible with both PROFINET IO and EtherNet/IP simultaneously?
The HAC024775-004 is designed for the ABB IRC5 platform and supports the network protocol configured during system commissioning. Protocol selection depends on the IRC5 software options installed. For multi-protocol environments, a dedicated industrial protocol gateway can be used alongside the module to bridge between PROFINET and EtherNet/IP segments.

Q3: How is network stability ensured in high-vibration or electrically noisy factory environments?
The HAC024775-004 is built to ABB’s industrial robustness standards, with EMC shielding and compliance with IEC 61000 electromagnetic compatibility requirements. For maximum network stability, it is recommended to use industrial-grade shielded Ethernet cables (Cat5e or Cat6 STP) and to ground the cable shields at both ends according to ABB installation guidelines.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
Every HAC024775-004 unit supplied by ZYPLC undergoes functional verification and communication testing prior to shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with test records available upon request. For warranty claims or technical support, contact ZYPLC directly via the details below.

—
