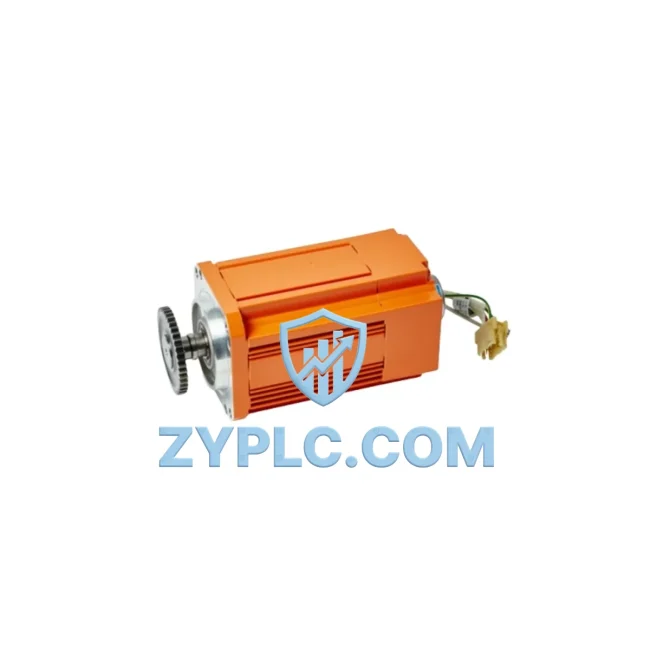

ABB HAC034644-003 Industrial AC Servo Motor for IRB2600 Systems

ABB HAC034644-003 Industrial AC Servo Motor: Precision Drive for Smart Factory Data Links

The ABB HAC034644-003 is a high-performance AC servo motor engineered for the ABB IRB2600 series industrial robot platform — one of the most widely deployed six-axis articulated robot families in global smart manufacturing. Designed to deliver precise torque control, low-latency motion feedback, and seamless integration into distributed automation architectures, the HAC034644-003 serves as a critical motion node within the industrial data chain that connects field devices, PLC controllers, drive systems, and upper-level SCADA/HMI platforms.

In modern smart factory environments, every servo axis is more than a mechanical actuator — it is a data source. The HAC034644-003 generates real-time position, velocity, and torque feedback that flows upward through the ABB IRC5 robot controller, across EtherNet/IP or PROFINET communication backbones, and into supervisory systems for continuous process monitoring, predictive maintenance, and production analytics. This unbroken data link — from servo encoder to SCADA dashboard — is what defines Industry 4.0 connectivity.

Network Communication Table

Connected Automation Data Flow

The HAC034644-003 operates at the heart of a tightly integrated motion and communication architecture. Within the IRB2600 robot arm, each joint axis — driven by a dedicated ABB AC servo motor — reports encoder feedback to the ABB IRC5 robot controller via high-speed resolver interfaces. The IRC5 controller processes this real-time motion data and executes RAPID program logic, coordinating multi-axis trajectories with sub-millisecond cycle times.

At the fieldbus layer, the IRC5 controller connects to the plant network through PROFINET or EtherNet/IP modules, enabling the robot cell to exchange I/O signals and process data with upstream Siemens S7-1500 PLC or Allen-Bradley ControlLogix controllers. Remote I/O nodes — such as ABB AC500 remote I/O modules or Beckhoff EtherCAT terminals — extend digital and analog signal collection from peripheral sensors, safety light curtains, and pneumatic valve islands into the same network fabric.

HMI panels — including ABB CP600 operator panels or Siemens SIMATIC HMI TP1200 — provide operators with live axis status, alarm visualization, and production counters sourced directly from the IRC5 data stream. At the SCADA level, platforms such as Ignition by Inductive Automation or ABB Ability™ Manufacturing Operations Management aggregate robot cycle data, servo load trends, and fault histories into plant-wide dashboards, enabling predictive maintenance scheduling based on servo torque deviation patterns.

Variable frequency drives and servo amplifiers — such as ABB ACS880 industrial drives — may operate in adjacent conveyor or spindle axes within the same production cell, sharing the same EtherNet/IP segment and reporting to the same SCADA historian. Edge gateways, such as the Moxa MGate MB3480 or HMS Anybus X-gateway, bridge legacy Modbus RTU devices — older sensors, flow meters, or legacy PLCs — into the modern Ethernet backbone, ensuring no data island remains isolated from the central monitoring system.

This end-to-end data flow — from HAC034644-003 servo encoder → IRC5 controller → fieldbus network → PLC → SCADA/HMI → cloud analytics — represents the complete industrial connectivity chain that the ABB IRB2600 platform enables in a smart factory deployment.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is protocol fragmentation. Legacy robot cells running older ABB S4C+ or IRC4 controllers may use proprietary DeviceNet or serial RS-232 interfaces that cannot natively communicate with modern PROFINET or OPC-UA networks. Replacing the servo motor with a genuine ABB HAC034644-003 — combined with an IRC5 controller upgrade — immediately unlocks access to standardized fieldbus options, eliminating the protocol mismatch that creates data silos between the robot cell and the plant MES.

Remote monitoring is another area where the HAC034644-003 delivers measurable value. Because the IRC5 controller exposes servo diagnostics — including winding temperature, encoder error counts, and torque saturation events — over the plant network, maintenance engineers can access real-time servo health data from any SCADA workstation or mobile HMI without entering the robot cell. This remote diagnostic capability reduces unplanned downtime by enabling condition-based maintenance rather than fixed-interval replacement schedules.

For production line transparency, the continuous servo feedback loop provides the data foundation for OEE (Overall Equipment Effectiveness) calculations. Cycle time deviations caused by servo wear, mechanical binding, or load imbalance are immediately visible in the SCADA trend historian, allowing process engineers to correlate servo performance data with product quality metrics and schedule corrective action before a fault escalates to a production stop.

System expansion is straightforward: the IRB2600 platform supports multi-robot coordination through ABB MultiMove technology, allowing additional robot axes — each driven by HAC034644-003 or compatible servo motors such as the HAC034645-004 and HAC031218-003 — to be added to the IRC5 dual-cabinet controller without architectural changes to the network topology. This scalability makes the IRB2600 servo ecosystem a long-term investment for growing smart factory deployments.

Every ABB HAC034644-003 unit supplied by ZYPLC undergoes pre-shipment functional verification, including insulation resistance testing, encoder signal integrity checks, and mechanical runout measurement. Units are shipped with full export documentation and are covered by a 12-month warranty from the date of delivery.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB IRB2600 system support for SCADA integration?
The ABB IRC5 controller — which interfaces directly with the HAC034644-003 servo motor — supports EtherNet/IP, PROFINET, DeviceNet, Modbus TCP, and OPC-UA (via ABB Ability™ connectivity options). This broad protocol support allows the IRB2600 robot cell to integrate with virtually any modern SCADA, MES, or cloud analytics platform without requiring additional protocol converters.

Q2: Is the HAC034644-003 compatible with third-party PLC controllers and HMI systems?
Yes. While the HAC034644-003 is natively designed for the ABB IRC5 controller, the IRC5’s fieldbus interface modules enable seamless I/O exchange with Siemens S7, Allen-Bradley ControlLogix, Mitsubishi MELSEC, and other major PLC platforms. HMI systems from Siemens, Schneider Electric, and Weintek can display robot status data via standard OPC-UA or Modbus TCP connections.

Q3: How does ZYPLC ensure network stability and servo reliability for long-term deployments?
All HAC034644-003 units are sourced from verified ABB supply channels and undergo pre-shipment electrical and mechanical testing. The 12-month warranty covers servo winding failures, encoder faults, and bearing defects. ZYPLC also provides technical documentation support to assist with IRC5 parameter configuration and fieldbus commissioning, reducing integration risk for new deployments.

Q4: What is the lead time and shipping arrangement for the ABB HAC034644-003?
Units are available from in-stock inventory and typically ship within 1–3 business days via DHL Express or FedEx International Priority. Full export compliance documentation — including commercial invoice, packing list, and certificate of origin — is provided for all international shipments. Expedited processing is available for urgent production line requirements.

—
