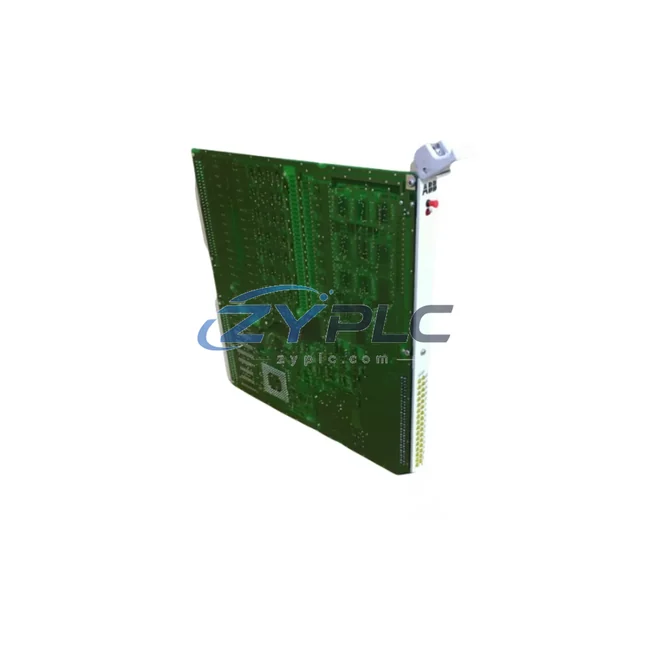

ABB HESG324063R100/G 216DB61 Industrial Network Interface for IRC5 Systems

ABB HESG324063R100/G 216DB61: Industrial Data Link for Smart Factory Connectivity

The ABB HESG324063R100/G 216DB61 is a high-performance Profibus Communication Gateway engineered for ABB IRC5 robot controller systems. Designed to bridge field-level devices and upper-level control networks, this gateway enables seamless protocol conversion, real-time data transmission, and deterministic communication across complex industrial automation architectures. Whether deployed in automotive body shops, electronics assembly lines, or heavy-process manufacturing environments, the HESG324063R100/G 216DB61 delivers the network reliability and integration depth that modern smart factories demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the ABB HESG324063R100/G 216DB61 sits at the heart of the industrial data chain. Signal acquisition begins at the sensor and actuator layer — proximity switches, torque sensors, and vision systems feed raw process data into the IRC5 robot controller via the Profibus DP bus. The HESG324063R100/G 216DB61 gateway translates these field-level signals into structured network packets that can be consumed by upstream control and monitoring systems.

Within the ABB IRC5 architecture, the gateway works in close coordination with the DSQC 663 I/O module and DSQC 652 digital I/O board, ensuring that robot motion data, gripper status, and weld cycle feedback are continuously synchronized with the plant-wide Profibus network. Upstream, a Siemens S7-300 or S7-400 PLC acting as Profibus DP Master polls the gateway cyclically, collecting robot state variables and pushing motion commands with sub-millisecond determinism.

Remote I/O stations — such as ABB AC500 distributed I/O modules or Phoenix Contact Inline remote I/O — extend the Profibus segment to field cabinets and junction boxes across the production floor. The HESG324063R100/G 216DB61 ensures that all remote nodes remain synchronized within the Profibus token-passing cycle, eliminating data latency that could compromise robot path accuracy or weld quality.

At the HMI and SCADA layer, Wonderware InTouch or Ignition SCADA platforms connect via OPC-DA or OPC-UA gateways that aggregate Profibus data from the HESG324063R100/G 216DB61 and present it as real-time dashboards for production supervisors. Alarm thresholds for robot joint temperature, cycle time deviation, and communication fault codes are configured directly in the SCADA system, with the gateway providing the raw diagnostic registers. Variable frequency drives — such as ABB ACS880 or ACS580 series — also participate in the Profibus segment, reporting motor speed, torque, and fault status back through the same data path that the HESG324063R100/G 216DB61 manages.

At the edge, an industrial edge gateway running MQTT or REST APIs can subscribe to Profibus data aggregated by the HESG324063R100/G 216DB61, forwarding key production KPIs to cloud-based MES or ERP platforms for enterprise-level visibility. This end-to-end data flow — from robot joint encoder to cloud dashboard — is made possible by the reliable protocol conversion and network bridging that the HESG324063R100/G 216DB61 provides.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid manufacturing environments is data isolation — islands of automation that cannot communicate with each other due to protocol fragmentation. The ABB HESG324063R100/G 216DB61 directly addresses this problem by acting as a transparent Profibus gateway that normalizes communication between the IRC5 robot controller and any Profibus DP-compatible master device on the network.

In plants where older SINEC H1 or DeviceNet segments coexist with modern Profibus DP infrastructure, the HESG324063R100/G 216DB61 enables phased migration without requiring full system replacement. Engineers can retain existing IRC5 robot investments while connecting them to new Profibus-based control backbones, preserving capital expenditure and reducing integration risk.

For remote monitoring and diagnostics, the gateway exposes robot I/O status, communication health registers, and fault codes to the Profibus master, enabling SCADA systems to detect communication breaks, robot e-stops, or I/O module failures without requiring physical access to the robot controller cabinet. This capability is critical for multi-cell production lines where a single communication fault can cascade into a full line stoppage.

Production line transparency is further enhanced by the gateway’s support for GSD (General Station Description) files, which allow Profibus configuration tools such as Siemens STEP 7 or TIA Portal to automatically discover and configure the HESG324063R100/G 216DB61 as a network node. This plug-and-play configurability reduces commissioning time and minimizes the risk of manual configuration errors.

System expansion is equally straightforward: additional IRC5 robot cells can be added to the Profibus segment by deploying additional HESG324063R100/G 216DB61 gateways, each assigned a unique Profibus node address. The modular architecture supports network topologies of up to 126 nodes per segment, making it suitable for large-scale robotic assembly lines with dozens of robot stations.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, including Profibus communication verification, I/O channel integrity checks, and firmware version confirmation. All units are backed by a warranty terms confirmed during quotation and shipped with full export documentation via DHL or FedEx Express, ensuring rapid delivery to customers in Europe, Southeast Asia, the Middle East, and the Americas.

Industrial Connectivity FAQ

Q1: What is the maximum Profibus DP transmission speed supported by the HESG324063R100/G 216DB61?
The HESG324063R100/G 216DB61 supports standard Profibus DP baud rates up to 12 Mbps, consistent with the EN 50170 standard. The actual operating baud rate is determined by the Profibus DP Master configuration and the cable length of the segment. For segments exceeding 100 meters, baud rates of 1.5 Mbps or lower are recommended to maintain signal integrity.

Q2: Is the HESG324063R100/G 216DB61 compatible with all IRC5 robot controller variants?
The gateway is designed for the ABB IRC5 robot controller platform and is compatible with standard IRC5, IRC5 Compact, and IRC5 Panel Mounted Controller variants. Compatibility with specific RobotWare versions should be confirmed against the ABB hardware compatibility matrix. ZYPLC technical support can assist with version verification prior to purchase.

Q3: How does the gateway maintain network stability in high-EMI industrial environments?
The HESG324063R100/G 216DB61 is built to ABB’s industrial hardware standards, incorporating EMC shielding and surge protection appropriate for robot controller environments. For installations in high-EMI areas such as welding cells or large motor drive rooms, Profibus cable shielding should be grounded at one end per EN 50170 recommendations, and repeaters should be used for segments exceeding the maximum cable length for the selected baud rate.

Q4: What warranty and after-sales support does ZYPLC provide for this gateway?
All ABB HESG324063R100/G 216DB61 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Each unit is tested prior to shipment, and a test report is available upon request. Post-sale technical support is provided via email and phone, with replacement units dispatched within 3 business days for confirmed warranty claims. Contact our team at plc.sales@zyplc.com or +86 19859288691 for warranty registration and support inquiries.
