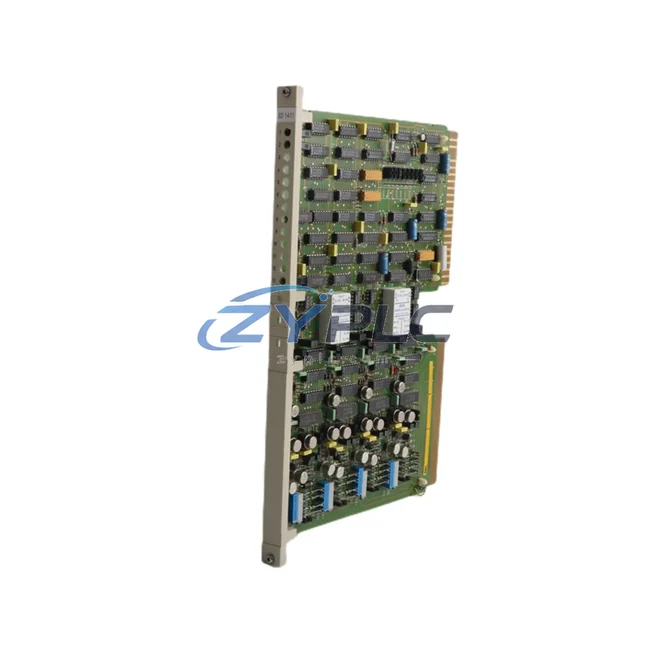

ABB HESG330061R1 Industrial Network Interface for ED1411C Systems

ABB HESG330061R1 Industrial Network Interface for ED1411C Systems: Bridging the Industrial Data Link in Smart Factory Environments

The ABB HESG330061R1 ED1411C is a high-performance communication and control board engineered for the ABB Advant Controller platform. Designed to serve as a critical node in the industrial data chain, this module enables seamless signal acquisition, protocol conversion, and real-time data transmission across complex automation architectures. Whether deployed in process manufacturing, power distribution, or discrete assembly lines, the HESG330061R1 delivers the network stability and communication reliability that modern smart factories demand.

In today’s industrial landscape, the ability to move data reliably from field devices to supervisory systems is not optional — it is the backbone of operational efficiency. The HESG330061R1 fulfills this role by acting as the communication bridge between field-level instrumentation and upper-layer control and monitoring systems, ensuring that every data point — from sensor readings to drive status — reaches the right destination at the right time.

Compatibility & Integration Notes

Connected Automation Data Flow

The HESG330061R1 ED1411C operates at the heart of a layered industrial communication architecture. At the field level, sensors and actuators — including pressure transmitters, flow meters, and temperature probes — feed raw process data into the system. This data is collected by remote I/O modules such as the ABB S800 I/O series, which aggregate field signals and pass them upstream via PROFIBUS-DP to the Advant Controller backplane where the HESG330061R1 resides.

Within the controller rack, the HESG330061R1 works in coordination with processor modules such as the ABB HESG330063R1 and memory boards like the ABB HESG441290R1, forming a tightly integrated control node. The board’s communication firmware handles cyclic data polling, ensuring that PLC scan cycles remain deterministic even under high network load. This is critical in applications where millisecond-level response times govern safety interlocks and process shutdowns.

Moving up the data chain, the HESG330061R1 interfaces with ABB Advant Station 500 operator workstations and engineering tools, enabling real-time visualization of process variables. For sites running ABB 800xA or third-party SCADA platforms such as Wonderware InTouch or Ignition, the board’s Modbus TCP gateway capability allows seamless data bridging without requiring additional protocol converters. HMI panels — including ABB CP600 series touchscreens — can subscribe directly to live data streams published by the controller, reducing latency between field events and operator awareness.

In drive-intensive applications, the HESG330061R1 communicates with ABB ACS880 and ACS580 variable frequency drives via PROFIBUS-DP, enabling closed-loop speed and torque control from the Advant Controller. Drive diagnostics, fault codes, and energy consumption data are all routed through the HESG330061R1’s communication stack, making it possible for maintenance teams to perform remote diagnostics without physical access to the drive cabinet.

For edge computing and IIoT integration, the HESG330061R1 can serve as a data source for industrial edge gateways — such as the Moxa MGate series or Advantech ADAM-3600 — which aggregate PROFIBUS and Modbus data and publish it to cloud platforms via MQTT or OPC-UA. This positions the HESG330061R1 as a foundational component in digital twin architectures and predictive maintenance programs, where historical and real-time data must coexist in a unified analytics environment.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation. A single production line may include PLCs from multiple vendors, each speaking a different communication dialect — PROFIBUS, DeviceNet, Modbus, or proprietary fieldbus variants. Without a capable communication board at the controller level, data remains siloed within each subsystem, invisible to the plant-wide SCADA or MES layer.

The ABB HESG330061R1 ED1411C directly addresses this challenge. Its multi-protocol support allows the Advant Controller to act as a protocol gateway, translating between PROFIBUS-DP field devices and Modbus TCP supervisory systems without external middleware. This eliminates the need for standalone protocol converters, reduces network complexity, and lowers the risk of communication bottlenecks that can delay alarm propagation or production reporting.

Remote monitoring is another area where the HESG330061R1 delivers measurable value. In geographically distributed facilities — such as water treatment plants, substations, or oil and gas terminals — the ability to monitor controller health, I/O status, and communication diagnostics from a central control room is essential. The HESG330061R1 supports remote diagnostic polling, allowing SCADA operators to query controller status, check communication error counters, and verify network health without dispatching field technicians.

Production line transparency is further enhanced by the board’s support for acyclic data services, which allow on-demand parameter reads and writes to field devices. This capability is used extensively in recipe management systems, where product changeovers require coordinated parameter updates across dozens of drives, valves, and sensors simultaneously. The HESG330061R1 orchestrates these updates reliably, ensuring that all field devices receive their new setpoints before the production line resumes.

System scalability is built into the ED1411C architecture. As production capacity grows, additional I/O modules, communication boards, and controller nodes can be added to the Advant system without disrupting existing network segments. The HESG330061R1’s backplane communication design supports hot-standby redundancy configurations, ensuring that a single board failure does not result in unplanned downtime.

Every HESG330061R1 ED1411C unit supplied by ZYPLC undergoes pre-shipment functional testing, including communication loop verification, protocol handshake confirmation, and power-on self-test validation. Units are shipped with a warranty terms confirmed during quotation, and our technical team provides post-sale support for integration, configuration, and troubleshooting queries.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB HESG330061R1 ED1411C support?
The HESG330061R1 supports PROFIBUS-DP (master and slave modes), Modbus RTU over RS-485, Modbus TCP via Ethernet gateway, and ABB’s proprietary Masterbus 300 protocol used within the Advant Controller family. This multi-protocol capability makes it suitable for integration with a wide range of field devices, SCADA systems, and third-party PLCs without requiring additional protocol conversion hardware.

Q2: Is the HESG330061R1 compatible with modern SCADA and HMI systems?
Yes. The board’s Modbus TCP and PROFIBUS-DP support ensures compatibility with leading SCADA platforms including ABB 800xA, Wonderware, Ignition, and Siemens WinCC. HMI panels that support OPC-DA/UA or Modbus TCP — such as the ABB CP600 series or Siemens TP series — can connect directly to the Advant Controller via the HESG330061R1 without additional drivers or middleware.

Q3: How does the HESG330061R1 ensure network stability in high-load industrial environments?
The board uses deterministic cyclic communication scheduling, which guarantees that each PROFIBUS-DP slave device is polled within a fixed time window regardless of network load. This prevents communication timeouts and ensures that alarm signals from field devices reach the controller within the required response time. The board also supports watchdog timers and communication error logging, enabling proactive network health monitoring.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
The warranty terms confirmed during quotation covers manufacturing defects, communication failures, and component-level faults under normal operating conditions. Prior to shipment, each HESG330061R1 unit undergoes a structured test protocol that includes power-on self-test, backplane communication verification, protocol handshake testing (PROFIBUS and Modbus), and visual inspection for physical damage. Test records are available upon request. For warranty claims or technical support, contact our team at plc.sales@zyplc.com or +86 19859288691.

—
