ABB HESG446933R2 70AB02b-E Excitation Contact Card for UNITROL Systems

ABB HESG446933R2 70AB02b-E: Industrial Data Link for UNITROL Excitation Systems

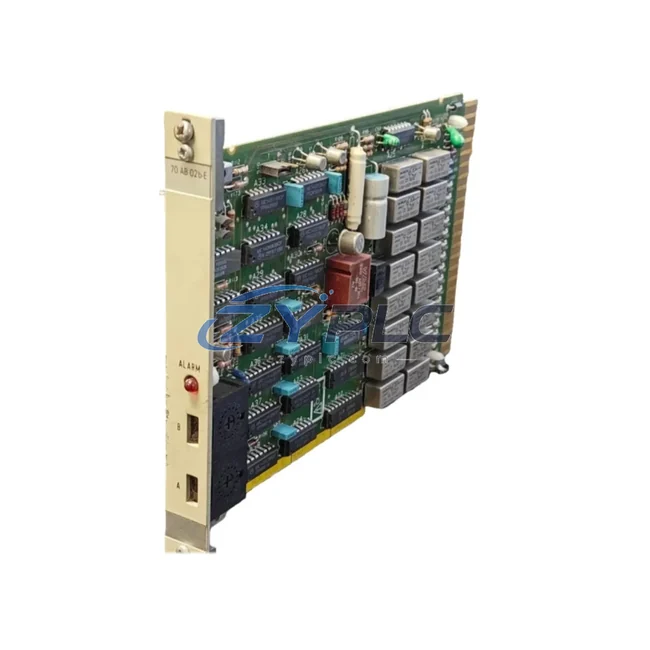

The ABB HESG446933R2 70AB02b-E Excitation Contact Card is a precision-engineered interface module designed for ABB’s UNITROL series of automatic voltage regulators (AVRs) and excitation control systems. In modern smart factory and power generation environments, reliable excitation control is the backbone of generator stability — and this card serves as the critical communication and signal interface that keeps the entire excitation data chain intact. From field signal acquisition through protocol-level data exchange to SCADA integration and remote diagnostics, the HESG446933R2 70AB02b-E delivers the connectivity performance that industrial sites demand.

As industrial facilities transition toward fully networked automation architectures, the role of excitation contact cards has expanded well beyond simple relay switching. Today’s power plant control rooms, turbine halls, and distributed energy systems require every component — from the generator excitation board to the DCS master controller — to participate in a unified, real-time data network. The ABB HESG446933R2 70AB02b-E is built to meet this challenge, providing stable, low-latency signal paths that support both legacy hardwired I/O and modern fieldbus communication frameworks.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical power generation or heavy industrial site, the ABB HESG446933R2 70AB02b-E sits at the heart of the excitation control loop, managing the signal flow between the generator field winding, the AVR processing board, and the plant-wide control network. The data journey begins at the generator terminals, where voltage and current transducers feed raw analog signals into the UNITROL excitation system. The HESG446933R2 70AB02b-E contact card processes these signals, converting them into structured relay contact outputs that the ABB UNITROL 5000 or UNITROL 6000 AVR controller can act upon in real time.

Upstream, the excitation system interfaces with the plant DCS — often an ABB System 800xA or ABB AC500 PLC — via hardwired I/O or PROFIBUS gateway modules. The contact card’s outputs feed directly into the DCS I/O modules, enabling the control system to monitor excitation status, reactive power output, and fault conditions without communication delay. Alongside the HESG446933R2 70AB02b-E, companion boards such as the ABB HESG448997R1 pulse amplifier card and the HESG447234R1 measurement board work in concert to complete the excitation signal chain.

For remote monitoring and SCADA integration, the excitation data collected by the HESG446933R2 70AB02b-E is aggregated through ABB’s communication gateway modules — such as the NETA-21 remote monitoring tool or the RDNA-01 DeviceNet adapter — and transmitted to the plant SCADA server over Ethernet or fieldbus networks. Operators at the HMI workstation, running ABB Ability or third-party SCADA platforms like Wonderware or Ignition, receive real-time excitation voltage, field current, and alarm status updates with sub-second latency.

In multi-generator power plants, the HESG446933R2 70AB02b-E supports parallel operation architectures where multiple UNITROL AVR units must coordinate reactive power sharing. The contact card’s relay outputs connect to the cross-current compensation network, ensuring that reactive load is distributed evenly across all online generators. This coordination is monitored continuously by the plant SCADA system, with alarm thresholds configured to trigger automatic alerts if any unit deviates from its reactive power setpoint.

For drive and motor control integration, the excitation contact card also interfaces with ABB ACS880 variable frequency drives deployed on auxiliary systems — such as boiler feed pumps and cooling fans — providing interlock signals that prevent drive startup during excitation fault conditions. This cross-system interlock logic is a key element of smart factory safety architecture, ensuring that no single component failure cascades into a wider plant outage.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in power generation and heavy industrial automation is data isolation — the condition where critical equipment operates in silos, unable to share status information with the broader control network. The ABB HESG446933R2 70AB02b-E directly addresses this problem by providing a standardized contact interface that bridges the excitation control domain with the plant-wide automation network.

Before modern excitation contact cards, many older generator control systems relied entirely on hardwired relay logic, with no digital communication path to the DCS or SCADA system. Operators had to physically inspect panel meters to assess excitation status, and fault diagnosis required on-site presence. The HESG446933R2 70AB02b-E eliminates this data gap by providing clean, noise-immune contact outputs that feed directly into digital I/O modules, enabling full remote visibility of excitation system health.

Protocol unification is another key benefit. In plants where legacy UNITROL 1000 systems coexist with newer UNITROL 5000 or UNITROL 6000 platforms, the HESG446933R2 70AB02b-E provides a consistent contact interface standard that simplifies DCS integration across mixed-generation equipment. This reduces engineering complexity and accelerates commissioning timelines when upgrading or expanding the excitation system.

Remote diagnostics capability is significantly enhanced when the HESG446933R2 70AB02b-E is paired with ABB’s NETA-21 remote monitoring gateway. Plant engineers can access real-time excitation data, review historical fault logs, and perform parameter adjustments from any location with network access — eliminating the need for costly on-site service visits for routine diagnostics. This remote access capability is particularly valuable for unmanned substations and remote power generation facilities.

Production line transparency is achieved through continuous SCADA data feeds that display excitation system KPIs — including field voltage, field current, reactive power output, and AVR mode status — on plant-wide dashboards. This transparency enables operations teams to identify performance trends, schedule predictive maintenance, and avoid unplanned outages that disrupt production continuity.

System expansion is straightforward with the HESG446933R2 70AB02b-E, as the UNITROL platform’s modular architecture allows additional excitation boards to be added without redesigning the existing control network. New generators can be integrated into the plant SCADA system by replicating the proven contact card configuration, reducing commissioning risk and accelerating time-to-operation for capacity expansion projects.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB HESG446933R2 70AB02b-E support, and is it compatible with PROFIBUS or Modbus networks?
The HESG446933R2 70AB02b-E is a contact card module that provides hardwired relay contact outputs rather than native fieldbus communication. However, it is fully compatible with PROFIBUS and Modbus-based DCS architectures when used in conjunction with ABB UNITROL communication gateway modules. The contact outputs connect to DCS I/O modules that support any standard industrial protocol, making the card universally compatible with ABB System 800xA, Siemens PCS 7, Honeywell Experion, and other major DCS platforms.

Q2: How does the HESG446933R2 70AB02b-E ensure network stability and minimize communication latency in real-time excitation control applications?
The card’s relay contact outputs are hardware-based, providing deterministic response times that are independent of network load or software processing delays. This hardware-level reliability ensures that excitation control commands are executed within microseconds, meeting the stringent real-time requirements of generator AVR systems. The contact card’s design also incorporates noise immunity features that prevent false triggering from electromagnetic interference common in power generation environments.

Q3: Can the HESG446933R2 70AB02b-E be integrated with third-party SCADA and HMI systems, and what is required for system expansion?
Yes. The HESG446933R2 70AB02b-E integrates with any SCADA or HMI platform that supports standard digital I/O inputs. When paired with ABB’s NETA-21 remote monitoring gateway or a PROFIBUS communication module, the excitation data becomes accessible to Wonderware, Ignition, iFIX, and other third-party SCADA systems via OPC-DA or OPC-UA interfaces. System expansion requires only the addition of compatible UNITROL excitation boards and corresponding DCS I/O channels — no changes to the existing network architecture are needed.

Q4: What pre-shipment testing is performed on the HESG446933R2 70AB02b-E, and what does the warranty terms confirmed during quotation cover?
Every ABB HESG446933R2 70AB02b-E unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including contact continuity checks, insulation resistance testing, and visual inspection for component integrity. The warranty terms confirmed during quotation covers all manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by ZYPLC’s technical team, with replacement or repair options available. Units are shipped via DHL or FedEx express with full tracking, and expedited delivery is available for urgent requirements.
