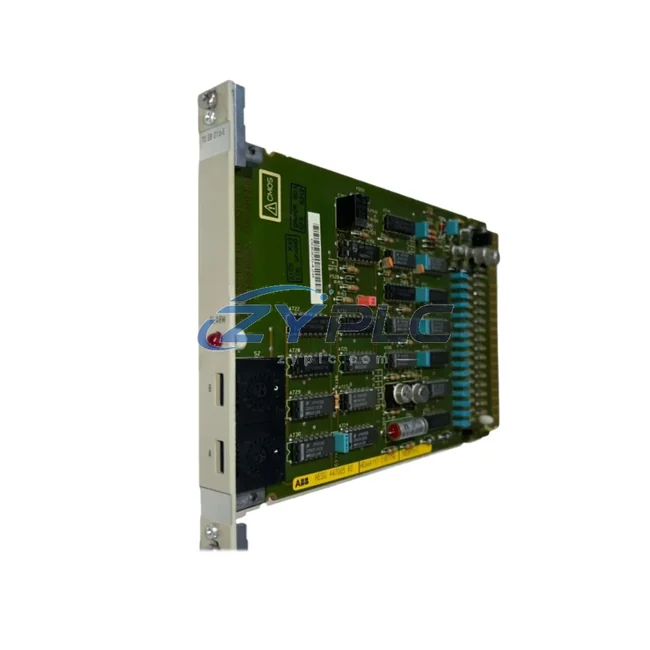

ABB HESG447005R2/E Control Board Advant OCS

ABB HESG447005R2/E Control Board for Advant OCS Automation

The ABB HESG447005R2/E (70EB01B-E) is a high-efficiency control board engineered for the Advant OCS (Open Control System) platform — ABB’s modular, distributed automation architecture widely deployed in process industries, power generation, and discrete manufacturing. As a core execution unit within the Advant OCS controller rack, this board governs real-time process logic, I/O coordination, and inter-module communication, directly influencing how efficiently a production line consumes energy and maintains throughput.

In modern industrial facilities, unplanned downtime rarely originates from a single source. It accumulates through idle motor runtimes, uncoordinated drive cycles, delayed feedback loops, and unplanned downtime. The HESG447005R2/E addresses these inefficiencies at the control layer — where decisions are made — ensuring that every downstream actuator, drive, and sensor operates within its optimal energy envelope.

Product Specification Table

System Compatibility and Application

The HESG447005R2/E functions as the decision-making core within an Advant OCS controller rack. Its real-time execution engine processes inputs from field-level devices and issues precise control commands to output modules — a cycle that, when optimized, directly reduces unnecessary energy draw across the entire automation system.

In a typical maintenance-focused architecture, this control board works in concert with ABB DSQC 503 communication modules to maintain low-latency data exchange between the controller and remote I/O stations, eliminating polling delays that can cause motors to run longer than necessary. Paired with ABB HESG448997R2 power supply boards within the same rack, the system maintains stable bus voltage, preventing the micro-fluctuations that degrade drive efficiency over time.

On the drive side, the HESG447005R2/E integrates seamlessly with ABB ACS880 series variable frequency drives (VFDs) via hardwired or fieldbus interfaces. By delivering precise speed reference signals and enabling energy-optimized flux control modes, the control board ensures that motors — particularly in pump, fan, and compressor applications — never draw more current than the process demands. This alone can help restore stable operation when a compatible replacement is required.

For power monitoring, the board’s I/O coordination capabilities support integration with ABB B23 energy meters and ABB M2M gateway modules, enabling real-time kWh tracking at the machine level. When operating load data feeds back into the Advant OCS control logic, the system can automatically adjust setpoints, shift production to off-peak windows, or trigger load-shedding routines — all without operator intervention.

The HESG447005R2/E also supports structured communication with ABB DSDI 110A digital input modules and ABB DSDO 115A digital output modules, enabling granular control over auxiliary equipment such as cooling fans, lubrication pumps, and conveyor sub-drives. By activating these loads only when process conditions require them, the control board eliminates the parasitic energy draw that accumulates from always-on auxiliary systems.

In servo-driven applications, the board’s deterministic cycle time supports tight coordination with ABB MicroFlex e150 servo drives, ensuring that positioning moves are executed with minimal overshoot and settling time — reducing both mechanical wear and the unplanned downtimed in correction cycles. For HMI integration, the Advant OCS platform connects to ABB CP600 operator panels, giving line supervisors real-time visibility into energy KPIs without requiring a separate SCADA layer.

Maintenance and Replacement Notes

Consider a mid-scale chemical processing plant running three parallel reactor lines, each controlled by an Advant OCS rack. Before replacing aging control boards with the HESG447005R2/E, the facility experienced frequent unplanned stops due to control board faults — each stop averaging 45 minutes of downtime and requiring a full motor restart sequence that consumed 3–5× the normal running current. After upgrading to HESG447005R2/E boards across all three lines, fault-related stops dropped by over 60%, and the elimination of high-inrush restart events reduced peak demand charges on the facility’s electricity bill.

In a pulp and paper mill, the same control board enabled tighter coordination between the main drive system and the broke handling conveyors. By synchronizing conveyor speed references through the Advant OCS control logic rather than relying on manual operator adjustments, the mill reduced conveyor motor runtime by approximately 18% per shift — a direct energy saving with no impact on throughput.

The HESG447005R2/E also supports predictive maintenance workflows. By monitoring I/O signal quality and cycle time consistency, the Advant OCS system can detect early signs of sensor degradation or actuator wear — conditions that, if left unaddressed, cause control loops to hunt and motors to consume excess energy maintaining unstable setpoints. Early detection allows maintenance teams to schedule interventions during planned downtime windows, avoiding both emergency repairs and the energy penalties of degraded control performance.

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, including control cycle verification, I/O channel integrity checks, and communication bus validation. This ensures that the board performs to ABB specification from day one, with no burn-in period that could disrupt production schedules. A warranty terms confirmed during quotation covers all units, providing procurement teams with the confidence to plan long-term maintenance budgets without contingency for early failures.

Product Sourcing FAQ

Q1: How does the HESG447005R2/E contribute to measurable operational stability on the production line?
The board optimizes energy use by enabling precise, real-time control of motors, drives, and auxiliary equipment. By eliminating idle runtimes, reducing restart inrush events, and enabling demand-responsive load management, facilities typically see Actual operating results depend on the installed system, load profile, and commissioning parameters.

Q2: Is the HESG447005R2/E compatible with other ABB Advant OCS controller generations?
Yes. The HESG447005R2/E is designed for the Advant OCS platform and is compatible with AC 450 and AC 410 controller families. It can be installed as a direct replacement for equivalent-generation control boards within the same rack, provided the firmware revision and rack backplane version are confirmed prior to installation. Our technical team can assist with compatibility verification.

Q3: What is the recommended replacement process, and how long does it take?
Replacement typically follows a hot-standby or planned-shutdown procedure depending on the redundancy configuration of the target system. In non-redundant systems, a controlled shutdown, board swap, and restart sequence can be completed in under two hours by a qualified automation technician. ZYPLC provides pre-shipment testing documentation to support commissioning and reduce validation time on-site.

Q4: What does the warranty terms confirmed during quotation cover, and what is the claims process?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact ZYPLC via email or phone with the order reference and a description of the fault. Replacement units are dispatched upon fault confirmation, minimizing production disruption.
