ABB HIEE200130R0002 AFC094AE02 Industrial Network Interface for Advant Systems

ABB HIEE200130R0002 AFC094AE02 Industrial Network Interface for Advant Systems: Bridging the Industrial Data Link in Smart Factory Environments

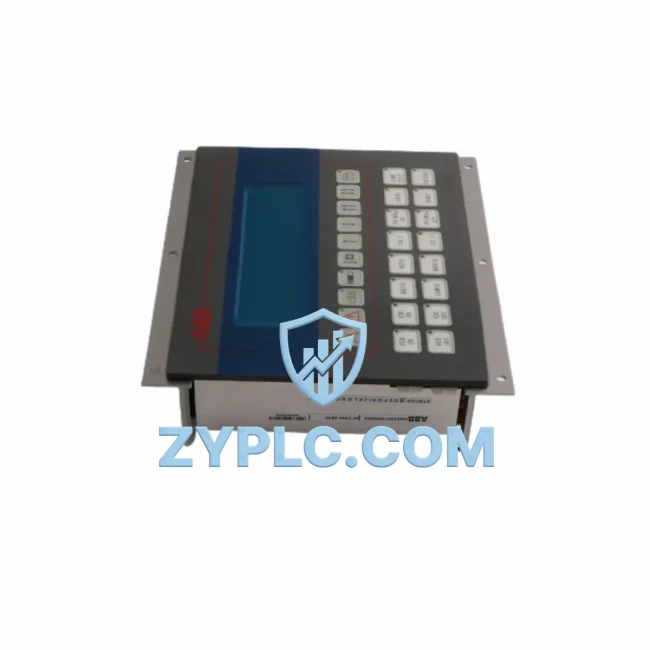

The ABB HIEE200130R0002 AFC094AE02 is a high-performance LCD Operator Panel engineered for the ABB Advant Series control platform. Designed to serve as a critical node in the industrial data chain, this unit enables seamless communication between field-level devices, PLC controllers, remote I/O modules, SCADA systems, and upper-level management networks. Whether deployed in process automation, discrete manufacturing, or hybrid smart factory architectures, the HIEE200130R0002 AFC094AE02 delivers the real-time visibility and protocol interoperability that modern industrial sites demand.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the ABB HIEE200130R0002 AFC094AE02 sits at the intersection of signal acquisition and operator interaction. At the field level, sensors and actuators — including ABB NAIO21 analog input modules and NDIO21 digital I/O modules — continuously feed process variables into the Advant controller backplane. The AFC094AE02 LCD panel reads these live data streams directly from the AC 450 or AC 460 processor modules, presenting operators with real-time temperature, pressure, flow, and status values without latency.

Moving up the data chain, the HIEE200130R0002 interfaces with ABB’s NCOM01 MasterBus 300 communication module, which bridges the Advant backplane to plant-wide Ethernet or PROFIBUS DP segments. This allows SCADA platforms — such as ABB System 800xA or third-party Wonderware and Ignition SCADA servers — to poll live process data from the Advant controller while the operator panel simultaneously provides local HMI functionality. The result is a dual-layer visibility architecture: local operator control at the panel level and remote supervisory monitoring at the SCADA level.

For remote I/O expansion, the AFC094AE02 works in tandem with ABB S800 I/O modules connected via PROFIBUS DP, extending the data acquisition reach to distributed field cabinets across large plant floors. Variable frequency drives — such as ABB ACS800 or ACS580 series drives — can be monitored and parameterized through the same PROFIBUS segment, with drive status, fault codes, and speed references visible directly on the HIEE200130R0002 display.

At the network transport layer, the ABB NETH01 Ethernet adapter module enables TCP/IP connectivity from the Advant platform to plant MES and ERP systems, completing the data flow from raw sensor signal all the way to enterprise-level production reporting. Edge gateways — such as ABB Edge Connect or compatible third-party industrial IoT gateways — can tap into this data stream for cloud-based analytics, predictive maintenance, and OEE dashboards, all anchored by the reliable local HMI provided by the AFC094AE02 panel.

Alarm management is another critical function of this operator panel. When a process variable exceeds its configured threshold — whether a motor overtemperature detected by an ABB NAIO21 module or a pressure spike from a field transmitter — the HIEE200130R0002 AFC094AE02 immediately displays the alarm with timestamp and priority classification. Operators can acknowledge alarms locally while the event is simultaneously logged to the SCADA historian, ensuring full traceability for compliance and root-cause analysis.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation. Older Advant-era installations often run MasterBus 300 at the controller level while newer field devices communicate over PROFIBUS DP or Modbus RTU — creating data silos that prevent unified monitoring. The HIEE200130R0002 AFC094AE02, when paired with ABB’s NCOM01 or NPBA-12 PROFIBUS adapter modules, acts as a protocol bridge, normalizing data from heterogeneous field devices into a single coherent operator view.

Remote monitoring is equally addressed. Rather than requiring on-site personnel for routine status checks, the AFC094AE02’s integration with MasterBus 300 and Ethernet-capable communication modules allows remote engineers to access live process data through SCADA clients or VPN-connected HMI terminals. This dramatically reduces travel costs and response times for distributed plant networks spanning multiple buildings or geographic sites.

Production line transparency is achieved through the panel’s ability to display multi-loop process summaries, trend graphs, and batch status — giving shift supervisors an at-a-glance view of overall line health without navigating complex SCADA screens. System expansion is equally straightforward: additional S800 I/O racks or PROFIBUS DP nodes can be added to the Advant network without replacing the operator panel, protecting the existing HMI investment while scaling capacity.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, including communication port verification, display integrity check, and backplane bus handshake confirmation. This ensures that the HIEE200130R0002 AFC094AE02 arrives ready for immediate installation, minimizing commissioning time and production downtime.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB HIEE200130R0002 AFC094AE02 support?
The AFC094AE02 natively supports ABB MasterBus 300 for Advant backplane communication. When paired with NCOM01 or NPBA-12 adapter modules, it extends compatibility to PROFIBUS DP and Modbus RTU networks, enabling integration with a wide range of field devices, drives, and SCADA systems.

Q2: Can this operator panel be integrated with modern SCADA or DCS platforms?
Yes. Through the Advant controller’s Ethernet or PROFIBUS gateway modules, the HIEE200130R0002 AFC094AE02 can supply real-time process data to SCADA platforms including ABB System 800xA, Wonderware InTouch, Ignition, and other OPC-compatible supervisory systems. Communication latency is typically under 100ms for standard polling cycles.

Q3: How does ZYPLC ensure network stability and reliability of this unit before shipment?
Each HIEE200130R0002 AFC094AE02 undergoes a multi-point pre-shipment test covering display functionality, serial communication port integrity, backplane bus handshake, and power supply stability. Units that fail any test parameter are quarantined and not shipped. All units are covered by a 12-month warranty against manufacturing defects and communication failures.

Q4: Is the ABB HIEE200130R0002 AFC094AE02 suitable for system expansion in existing Advant installations?
Absolutely. The AFC094AE02 is fully backward-compatible with existing AC 450, AC 460, and AC 410 Advant controller racks. New I/O modules, PROFIBUS DP nodes, or remote S800 I/O stations can be added to the network without replacing the operator panel, making it an ideal long-term HMI investment for phased plant modernization projects.
