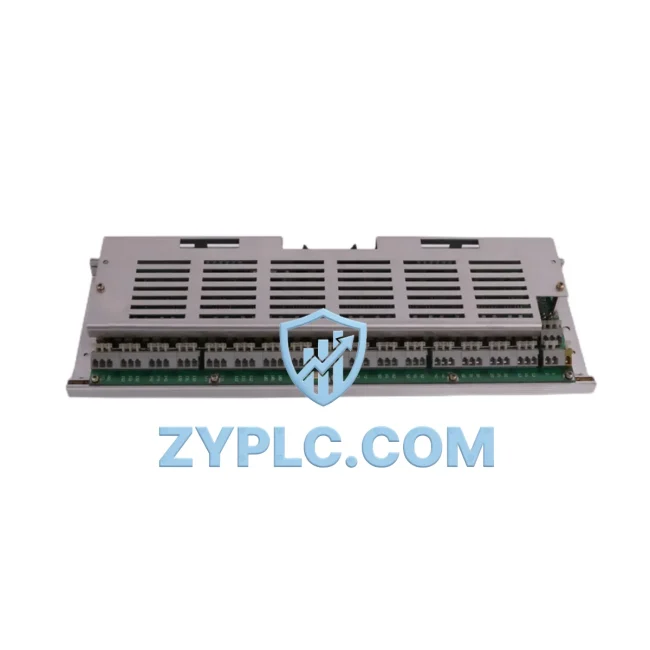

ABB HIEE300910R0001 UFC092BE01 Industrial Binary Input Module

ABB HIEE300910R0001 UFC092BE01: Industrial Binary Input Module for DCS Data Acquisition and Smart Factory Connectivity

The ABB HIEE300910R0001 UFC092BE01 is a high-reliability binary input module engineered for the ABB UFC09 series Distributed Control System (DCS) platform. Designed to serve as a critical signal acquisition node in industrial automation architectures, this module captures discrete on/off states from field devices — including limit switches, proximity sensors, relay contacts, and digital output actuators — and transmits structured binary data upstream through the DCS backplane to supervisory control layers. In smart factory environments where real-time visibility and deterministic data flow are non-negotiable, the HIEE300910R0001 UFC092BE01 delivers the signal integrity and channel density required to sustain continuous production monitoring.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the ABB UFC092BE01 sits at the foundation of the digital data chain. Field-level devices — such as inductive proximity sensors, photoelectric detectors, and mechanical limit switches mounted on conveyor lines, valve actuators, or motor starters — generate binary state signals that are wired directly into the HIEE300910R0001 input terminals. These discrete signals are then conditioned, isolated, and encoded by the module before being passed across the ABB UFC09 DCS backplane to the central controller.

Within the same DCS rack, the UFC092BE01 operates alongside companion modules such as the ABB UFC091AE01 analog input module for 4–20 mA process variable acquisition, and the ABB UFC093BE01 binary output module for discrete command execution — forming a complete I/O subsystem. The DCS controller, typically an ABB DSPC110 or DSPC172 processor module, aggregates all binary and analog inputs, executes control logic, and routes process data upstream via the ABB INFI-NET communication network to SCADA and HMI layers.

At the supervisory level, ABB System 800xA or legacy Advant Station AS500 operator workstations receive real-time binary state data from the UFC092BE01, enabling operators to monitor equipment status, interlock conditions, and alarm states across the entire plant. Integration with ABB MOD 300 gateway modules further extends connectivity to Modbus RTU or Modbus TCP networks, allowing third-party SCADA platforms and MES systems to consume binary field data without protocol barriers.

For remote diagnostic scenarios, the binary input data captured by the HIEE300910R0001 can be forwarded through ABB AC800M edge controllers or industrial IoT gateways to cloud-based monitoring platforms, enabling predictive maintenance teams to track equipment state changes, detect abnormal switching patterns, and trigger maintenance workflows — all without physical access to the control room. Variable frequency drives (VFDs) connected to motor starters also feed run/fault binary signals into the UFC092BE01, providing drive status visibility within the DCS alarm management system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — field devices generating signals that never reach the control system in a structured, actionable format. The ABB HIEE300910R0001 UFC092BE01 directly addresses this by providing a standardized, high-channel-density binary input interface that eliminates the need for external signal converters or custom wiring adapters when integrating discrete field devices into the ABB UFC09 DCS environment.

In plants where multiple control platforms coexist — for example, a legacy ABB MOD 300 DCS alongside newer Siemens or Rockwell PLC islands — the UFC092BE01 serves as the binary data collection point for the ABB domain, while gateway modules handle cross-platform protocol translation. This architecture prevents binary signal data from being stranded at the field level and ensures that every discrete state change — valve open/closed, motor run/stop, conveyor fault/normal — is captured, timestamped, and made available to SCADA dashboards and historian databases in real time.

For production line transparency, the module supports alarm and event logging at the DCS controller level, meaning that any binary input transition triggers an immediate event record with timestamp and channel identification. This capability is essential for root cause analysis, regulatory compliance reporting, and OEE (Overall Equipment Effectiveness) calculation in manufacturing execution systems. Remote monitoring teams can access this event stream through the SCADA layer without requiring on-site presence, dramatically reducing mean time to diagnose (MTTD) for equipment faults.

System expansion is equally straightforward: additional UFC092BE01 modules can be inserted into available UFC09 rack slots to increase binary input channel capacity as production lines grow, without requiring controller reconfiguration or network topology changes. This modularity makes the HIEE300910R0001 a long-term investment for facilities planning phased automation upgrades.

Industrial Connectivity FAQ

Q1: What communication protocol does the ABB HIEE300910R0001 UFC092BE01 use, and is it compatible with Modbus or PROFIBUS networks?
The UFC092BE01 communicates natively over the ABB UFC09 DCS internal backplane bus, which is proprietary to the ABB Advant and MOD 300 control system architecture. It does not directly support Modbus RTU, Modbus TCP, or PROFIBUS DP as a standalone module. However, when used within a complete ABB DCS system, gateway modules such as the ABB CI854 PROFIBUS master or Modbus TCP communication interfaces can bridge the DCS data to external networks, making binary input data accessible to third-party SCADA and MES platforms.

Q2: How is network stability and signal integrity ensured for binary inputs in high-noise industrial environments?
The HIEE300910R0001 UFC092BE01 incorporates optical isolation on binary input channels, which decouples field-side wiring from the DCS backplane electronics. This isolation prevents ground loops, transient voltage spikes, and electromagnetic interference (EMI) from corrupting binary state data. In environments with heavy motor drives, welding equipment, or high-frequency switching loads, this isolation is critical for maintaining deterministic signal transmission and preventing false alarm triggers in the SCADA system.

Q3: Can the UFC092BE01 be used for real-time monitoring and remote diagnostics in SCADA/HMI systems?
Yes. Binary input data captured by the UFC092BE01 is processed by the ABB DCS controller and made available to SCADA and HMI platforms — including ABB System 800xA, Wonderware, and iFIX — via the DCS communication network. Operators can monitor individual channel states, configure alarm thresholds for unexpected state changes, and access historical event logs for remote diagnostics. Integration with OPC DA/UA servers further extends real-time data access to any OPC-compatible monitoring platform.

Q4: What does the 12-month warranty cover, and how is the module tested before shipment?
Every ABB HIEE300910R0001 UFC092BE01 unit supplied by ZYPLC undergoes functional testing prior to shipment, including channel continuity verification, isolation resistance checks, and backplane communication validation where test equipment permits. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with appropriate ESD-protective packaging to prevent damage in transit. For warranty claims or technical support, contact our team at plc.sales@zyplc.com or +86 19859288691.
