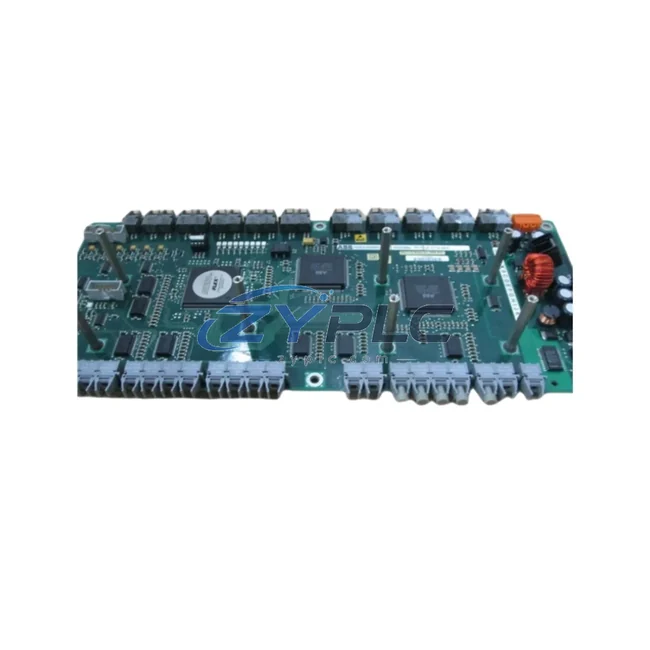

ABB HIEE300936R0101 UFC718AE101: Industrial Data Link for ACS/DCS Smart Factory Networks
The ABB HIEE300936R0101 UFC718AE101 is a high-performance circuit interface board engineered for seamless integration within ABB’s ACS and DCS drive and control architectures. Designed to serve as a critical node in industrial communication networks, this interface board enables reliable, real-time data exchange between field-level devices and upper-level control systems — making it an essential component in modern smart factory deployments. Whether bridging signal acquisition from sensors and actuators or facilitating protocol-level communication between PLCs, remote I/O modules, and SCADA platforms, the UFC718AE101 delivers the connectivity backbone that industrial automation demands.
Compatibility & Integration Notes
| Parameter |
Specification |
| SKU / Part Number |
HIEE300936R0101 UFC718AE101 |
| Brand |
ABB |
| Series |
ACS / DCS Drive & Control Series |
| Product Type |
Circuit Interface Board / Network Interface Module |
| Communication Protocol |
ABB DDCS (Distributed Drive Control System), Fiber Optic Ring, PROFIBUS-compatible gateway support |
| Interface Type |
Fiber Optic, Backplane Bus, Serial Communication Port |
| Transmission Capability |
High-speed real-time data transfer; deterministic cycle time for drive control loops |
| Network Compatibility |
ABB ACS800, ACS600, DCS800, DCS600 drive platforms; compatible with ABB AC800M and AC500 PLC families |
| System Application |
SCADA integration, HMI data acquisition, remote I/O, drive-to-controller communication, smart factory automation |
| Origin |
Sweden (ABB) |
| Warranty |
warranty terms confirmed during quotation |
| Availability |
RFQ Available — shipment arranged after confirmation |
Connected Automation Data Flow
In a typical smart factory deployment, the ABB UFC718AE101 sits at the heart of the drive communication architecture, managing the data pipeline between field devices and supervisory systems. The data flow begins at the sensor and actuator layer — where encoders, temperature transmitters, and proximity sensors feed real-time process values into the drive system. The UFC718AE101 interface board receives these signals through the ACS800 or DCS800 drive’s internal backplane, processes them within the drive’s control loop, and transmits structured data upstream via the ABB DDCS fiber optic ring.
Within the same communication ring, companion boards such as the ABB RDCO-03 DDCS Communication Module and the RTAC-01 Pulse Encoder Interface Module work in parallel to handle encoder feedback and multi-drive synchronization. The UFC718AE101 ensures that all drive-level data — including speed references, torque feedback, fault codes, and I/O status — is packaged and forwarded to the ABB AC800M Controller or AC500 PLC over the fiber ring with deterministic, low-latency timing critical for closed-loop control.
At the network layer, an ABB FPBA-01 PROFIBUS Adapter Module or FENA-21 Ethernet Adapter may be deployed alongside the UFC718AE101 to bridge the drive network to plant-wide PROFIBUS DP or Industrial Ethernet (EtherNet/IP, PROFINET) segments. This allows the drive data to flow into ABB System 800xA SCADA or third-party HMI platforms such as Wonderware InTouch or Ignition SCADA, where operators can monitor real-time KPIs, configure alarm thresholds, and initiate remote diagnostics without interrupting production.
For remote I/O expansion, the UFC718AE101 supports integration with ABB S800 I/O Modules distributed across the production floor, enabling decentralized signal acquisition while maintaining a unified data backbone. Edge gateway devices — such as the ABB Edge Controller or third-party IIoT gateways — can tap into this data stream to push drive performance metrics to cloud analytics platforms, enabling predictive maintenance and OEE optimization at the enterprise level. The result is a fully transparent, end-to-end industrial data chain: from field sensor to SCADA dashboard, with the UFC718AE101 as the reliable communication core.
Solving Data Isolation in Industrial Sites
One of the most persistent challenges in legacy and mixed-generation industrial environments is data isolation — where drives, PLCs, remote I/O systems, and HMI platforms operate on incompatible protocols, creating information silos that impede real-time decision-making and predictive maintenance. The ABB HIEE300936R0101 UFC718AE101 directly addresses this challenge by providing a standardized, high-speed communication interface that bridges the ABB drive ecosystem with broader plant automation networks.
By enabling the ACS/DCS drive series to communicate over the DDCS fiber optic ring and interface with PROFIBUS or Ethernet gateway adapters, the UFC718AE101 eliminates the protocol fragmentation that typically forces engineers to rely on manual data collection or proprietary, closed-loop systems. Production line transparency is achieved when every drive’s operational data — cycle counts, fault histories, energy consumption, and speed profiles — becomes accessible in real time through the SCADA or MES layer.
Remote monitoring and diagnostics become straightforward: maintenance engineers can access drive status, acknowledge alarms, and adjust parameters from a central control room or via remote desktop, reducing unplanned downtime and the need for on-site intervention. System scalability is equally well-served — additional drives, I/O modules, or communication nodes can be added to the DDCS ring without redesigning the network architecture, making the UFC718AE101 a future-proof investment for expanding production facilities. All units supplied by ZYPLC are pre-tested prior to shipment, backed by a warranty terms confirmed during quotation, and supported by RFQ-confirmed sourcing for rapid global deployment.
Industrial Connectivity FAQ
Q1: What communication protocols does the ABB UFC718AE101 support, and is it compatible with PROFIBUS or EtherNet/IP networks?
The UFC718AE101 operates natively on ABB’s DDCS (Distributed Drive Control System) fiber optic protocol, which is the internal high-speed communication backbone of the ACS and DCS drive series. For integration with PROFIBUS DP or EtherNet/IP plant networks, a gateway adapter such as the ABB FPBA-01 or FENA-21 is used in conjunction with the UFC718AE101 to bridge the two network layers seamlessly.
Q2: What is the communication latency of the UFC718AE101, and is it suitable for real-time closed-loop drive control?
The DDCS fiber optic ring supported by the UFC718AE101 is designed for deterministic, low-latency communication — typically operating at cycle times in the range of 1–5 ms, which is well within the requirements for real-time drive control loops. This makes it suitable for high-performance applications including coordinated multi-drive systems, tension control, and synchronous motion control in manufacturing lines.
Q3: Can the UFC718AE101 be integrated into an existing SCADA or HMI system without replacing the entire drive platform?
Yes. The UFC718AE101 is designed to retrofit into existing ACS800, ACS600, DCS800, and DCS600 drive platforms without requiring a full system replacement. By adding the appropriate gateway adapter (PROFIBUS, Ethernet, or DeviceNet), the drive’s data becomes accessible to SCADA systems such as ABB System 800xA, Siemens WinCC, or Ignition, enabling full visibility and remote control without disrupting ongoing production.
Q4: Does ZYPLC provide a warranty and pre-shipment testing for the ABB HIEE300936R0101 UFC718AE101?
All ABB UFC718AE101 units supplied by ZYPLC undergo functional testing prior to shipment to verify communication integrity and board-level performance. Each unit is covered by a warranty terms confirmed during quotation from the date of delivery. Availability confirmed by RFQ inventory ensures short lead times, and our technical team is available to assist with compatibility verification, installation guidance, and after-sales support.
