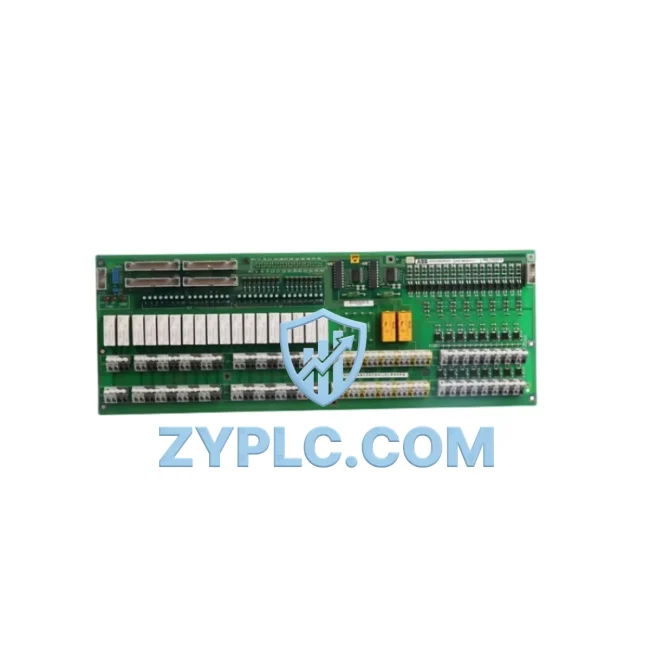

ABB HIEE305082R0001 UNS0863A-P I/O Module for Advant OCS

ABB HIEE305082R0001 UNS0863A-P I/O Module for Advant OCS

The ABB HIEE305082R0001 (UNS0863A-P) is a purpose-engineered DCS I/O module designed for seamless integration within the Advant OCS and AC 450 distributed control system architecture. Rather than functioning as a standalone component, this module occupies a critical position in the layered automation hierarchy — bridging the field signal layer with the process control layer and enabling deterministic, high-integrity data exchange across the entire control network. Its role extends beyond simple signal conditioning: it actively contributes to system consistency, modular scalability, redundancy capability, and long-term maintainability in demanding industrial environments.

In modern distributed control architectures, every I/O module must be evaluated not in isolation but as part of a coordinated system. The HIEE305082R0001 UNS0863A-P is engineered with this philosophy at its core, delivering reliable performance across control, I/O, network, power, HMI, and actuator layers simultaneously.

Product Specification Table

System Compatibility Notes

The HIEE305082R0001 UNS0863A-P achieves its full value when deployed within a complete Advant OCS or AC 450 control system architecture. At the controller level, it interfaces directly with the ABB PM511V16 / PM864A processor module, which handles real-time scan cycle execution and logic processing. The I/O module’s data is transmitted upstream via the ABB CI522A PROFIBUS DP communication interface module, ensuring deterministic fieldbus communication with sub-millisecond latency across distributed I/O clusters.

Power integrity is maintained through the ABB SD821 / SD823 power supply unit, which provides regulated 24 VDC to the I/O bus rail. In redundant power configurations, a secondary SD823 unit operates in hot-standby mode, ensuring uninterrupted module operation during power source transitions — a critical requirement in continuous process industries such as petrochemicals and power generation.

Signal termination at the field level is managed through ABB TB820 / TB825 termination boards, which provide screw-terminal connectivity for field cables and isolate the module backplane from field-side transients. This arrangement simplifies maintenance: field wiring remains connected to the termination board while the HIEE305082R0001 module can be extracted and replaced without disturbing field cabling — a significant advantage during live system maintenance windows.

At the network layer, the ABB CI854A / CI858 AF100 communication interface connects the Advant OCS controller to supervisory SCADA systems and historian platforms via Ethernet TCP/IP or AF100 optical fiber links. This ensures that I/O data collected by the HIEE305082R0001 is available in real time at the HMI and data historian level, supporting process visualization through ABB Operate IT / Industrial IT 800xA operator stations.

For applications requiring I/O expansion beyond the base rack, the ABB S800 I/O remote unit can be deployed in conjunction with the HIEE305082R0001 to extend the I/O footprint across geographically distributed field junction boxes — maintaining a single logical I/O namespace within the AC 450 controller configuration. This modular expansion capability is essential in large-scale plant automation where field devices are distributed across multiple process areas.

Industrial Application Notes

The HIEE305082R0001 UNS0863A-P is deployed across a wide range of heavy industrial and process automation sectors where system reliability, signal fidelity, and long-term spare parts availability are non-negotiable requirements.

In power generation and grid management applications, this module is integrated into turbine control and boiler management systems where analog signal accuracy directly impacts combustion efficiency and load regulation. Its compatibility with the AC 450 platform makes it a preferred choice for legacy power plant modernization projects where full DCS replacement is not economically viable.

In petrochemical and refinery operations, the module supports continuous process control loops for temperature, pressure, flow, and level measurement. Its robust electrical isolation and compliance with industrial EMC standards ensure reliable operation in environments with high electromagnetic interference from variable-frequency drives and high-voltage switching equipment.

In water and wastewater treatment facilities, the HIEE305082R0001 is used in pump station automation and chemical dosing control systems. Its compatibility with PROFIBUS DP fieldbus networks allows integration with intelligent field devices such as Coriolis flow meters and pH analyzers without requiring additional protocol converters.

In mining and mineral processing environments, the module’s wide operating temperature range and vibration tolerance make it suitable for crusher control, conveyor automation, and flotation cell management systems. Spare module availability — supported by ZYPLC’s global inventory network — ensures that unplanned downtime due to module failure can be resolved within 24–72 hours, minimizing production loss.

In packaging and discrete manufacturing lines, the module supports high-speed I/O scanning for machine sequencing, reject systems, and quality inspection integration. Its deterministic scan cycle, synchronized with the AC 450 controller’s execution cycle, ensures precise timing coordination between sensor inputs and actuator outputs.

Product Compatibility FAQ

Q1: Is the HIEE305082R0001 UNS0863A-P compatible with both the Advant OCS and AC 450 platforms, and can it be used in a mixed-generation system?
Yes. The HIEE305082R0001 UNS0863A-P is designed for the ABB Advant OCS architecture, which shares hardware compatibility with the AC 450 DCS platform. In mixed-generation installations — where older Advant OCS racks coexist with newer AC 450 controller modules — this I/O module can be retained in its existing rack position without hardware modification. Configuration is managed through the ABB Advant Builder or Master engineering tool, where the module’s I/O channel assignments are mapped to the controller’s application program. This backward compatibility significantly reduces upgrade costs and allows phased modernization strategies.

Q2: What redundancy configurations are supported when using this module in a high-availability control system?
The HIEE305082R0001 UNS0863A-P supports I/O redundancy when paired with a redundant controller configuration using dual PM864A or PM511 processor modules in hot-standby mode. In this configuration, both controller modules continuously scan the I/O bus, and switchover occurs within one scan cycle upon detection of a primary controller fault — typically under 100 milliseconds. For power redundancy, dual SD823 power supply units are recommended. Field signal redundancy can be achieved by wiring critical analog inputs to two separate I/O channels on independent modules, with the application program performing signal selection logic. ZYPLC recommends maintaining at least one spare HIEE305082R0001 module on-site for high-availability installations.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims or technical support?
All HIEE305082R0001 UNS0863A-P modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. The warranty covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) units. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with your order reference and a description of the fault. ZYPLC’s technical team will provide return authorization and, where applicable, advance replacement to minimize system downtime. system integration support — including configuration guidance for Advant Builder and AC 450 system integration — is available as part of the post-sale technical service.
