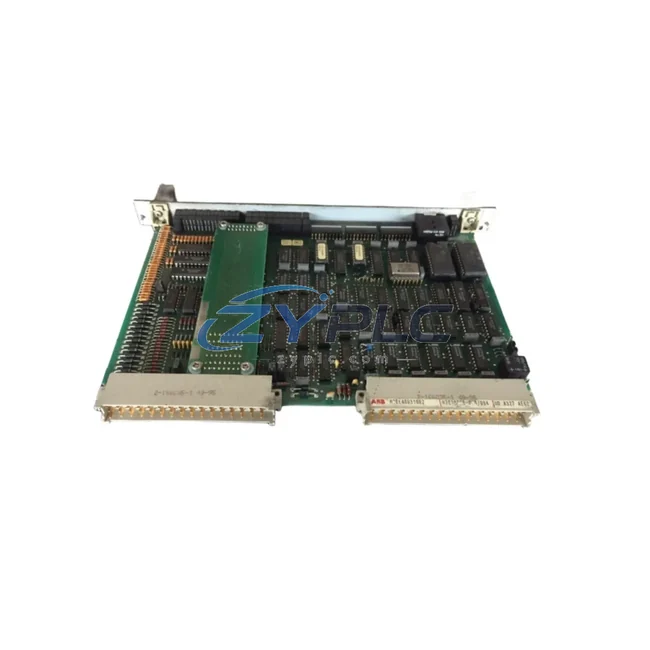

ABB HIEE400316R2 UDA327 AE02 Unitrol Control Board

ABB HIEE400316R2 UDA327 AE02 Unitrol Control Board: Precision Excitation Control for maintenance-focused Automation

The ABB HIEE400316R2 UDA327 AE02 is a high-performance monitoring and control board engineered for ABB’s Unitrol excitation system platform. Designed to operate within demanding industrial power generation and drive environments, this module delivers precise reactive power regulation, real-time excitation feedback, and stable voltage control — all of which directly contribute to measurable reductions in downtime across rotating machine systems. Whether deployed in hydroelectric generators, synchronous motors, or large industrial drive trains, the HIEE400316R2 enables plant operators to maintain optimal power factor, reduce thermal losses, and extend equipment service intervals.

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, is backed by a, and is available from verified inventory for fast global dispatch.

Product Specification Table

System Compatibility and Application

In modern industrial facilities, energy efficiency is not achieved by a single component — it is the result of a tightly integrated control architecture where every module contributes to system-wide optimization. The ABB HIEE400316R2 UDA327 AE02 sits at the heart of the Unitrol excitation control chain, working in concert with a range of complementary ABB automation components to deliver measurable efficiency gains across the entire power conversion loop.

At the drive level, the HIEE400316R2 interfaces with ABB ACS880 and ACS580 variable frequency drives, which regulate motor speed and torque in response to real-time load demand. By providing stable excitation voltage references, the control board ensures that the VFD’s energy recovery algorithms — including kinetic energy buffering and regenerative braking — operate within their optimal efficiency windows. This coordination eliminates the reactive power spikes that commonly inflate energy bills in facilities running multiple large motors simultaneously.

On the PLC side, the board communicates with ABB AC500 series programmable logic controllers via PROFIBUS DP or Modbus RTU, enabling the plant’s central control system to monitor excitation status, adjust setpoints dynamically, and trigger protective shutdowns before thermal runaway conditions develop. The AC500’s high-speed I/O modules — such as the SM560 CPU and associated digital I/O expansion cards — process feedback signals from the HIEE400316R2 at millisecond cycle times, ensuring that corrective actions are applied before energy losses accumulate.

For power quality monitoring, the HIEE400316R2 works alongside ABB’s M2M energy measurement modules and the Unitrol power factor correction relay stack. When integrated with an ABB CP600 HMI panel, operators gain a real-time dashboard view of excitation current, terminal voltage deviation, and reactive power flow — data that is essential for identifying inefficient operating zones and scheduling predictive maintenance before a fault causes unplanned downtime. The CP600’s trend logging capability allows energy managers to correlate excitation behavior with production cycle data, enabling data-driven decisions about load scheduling and equipment utilization.

At the field level, ABB S800 I/O modules collect analog signals from current transformers and voltage transducers installed on the generator terminals, feeding this data back to the HIEE400316R2 for closed-loop regulation. The board’s onboard signal conditioning circuitry filters noise from the raw sensor inputs, ensuring that the excitation control algorithm responds only to genuine load changes — not electrical interference from adjacent switchgear or variable speed drives. This precision directly reduces hunting behavior in the excitation system, which is a well-known source of unnecessary energy dissipation in synchronous machine installations.

When the Unitrol system is deployed alongside ABB’s SACE Emax 2 intelligent circuit breakers and REF615 protection relays, the HIEE400316R2 becomes part of a fully coordinated protection and maintenance planning architecture. The REF615 can issue trip commands based on excitation fault signals from the control board, while the Emax 2 breaker logs energy consumption data at the feeder level — providing the granular visibility needed to identify which production lines are consuming disproportionate reactive power and where efficiency improvements will deliver the greatest return.

Maintenance and Replacement Notes

In practice, the ABB HIEE400316R2 UDA327 AE02 delivers its most significant operational stability in facilities where synchronous generators or large synchronous motors operate under variable load conditions — a scenario common in cement plants, steel mills, water treatment facilities, and offshore platforms.

In a typical cement plant application, the main kiln drive motor — often rated at several megawatts — experiences significant load fluctuations as raw material feed rates change throughout the production shift. Without precise excitation control, the generator supplying this motor operates at a suboptimal power factor, drawing excess reactive current from the grid and incurring penalty charges from the utility provider. The HIEE400316R2, by maintaining tight voltage regulation and reactive power compensation, keeps the power factor within the utility’s target band, eliminating reactive power penalties and reducing the apparent power demand on upstream transformers.

In water treatment and pumping stations, where multiple large pump motors run in parallel, the control board’s ability to coordinate excitation across multiple Unitrol channels prevents the reactive power circulation that occurs when machines with mismatched excitation levels operate on the same bus. This coordination reduces I²R losses in the distribution cables, lowers transformer core temperatures, and extends the service life of insulation systems — all of which translate directly into lower maintenance costs and fewer unplanned outages.

From a predictive maintenance perspective, the HIEE400316R2’s continuous monitoring of excitation current and field voltage provides early warning of rotor winding degradation, brush gear wear, and AVR component aging. By trending these parameters over time — particularly when logged through an ABB CP600 HMI or exported to a SCADA system via Modbus — maintenance teams can schedule interventions during planned shutdowns rather than responding reactively to failures. This shift from reactive to predictive maintenance has been shown to reduce maintenance costs by 15–25% in comparable industrial installations, while simultaneously improving overall equipment effectiveness (OEE) by reducing unplanned downtime.

ZYPLC maintains availability subject to RFQ confirmation of the HIEE400316R2 UDA327 AE02 and can support urgent replacement requirements with fast international shipping. All units are tested under load conditions prior to dispatch, and each shipment is accompanied by a test report confirming functional verification. The covers all manufacturing defects and functional failures identified under normal operating conditions.

Product Sourcing FAQ

Q1: How does the ABB HIEE400316R2 UDA327 AE02 contribute to operational stability in an excitation system?
The HIEE400316R2 regulates excitation current with high precision, maintaining the generator or synchronous motor at its optimal power factor operating point. This minimizes reactive power consumption, reduces I²R losses in stator windings and distribution cables, and prevents the voltage instability that forces upstream equipment to operate inefficiently. In facilities with multiple synchronous machines, coordinated excitation control through this board can reduce reactive power demand by a measurable margin, directly lowering electricity costs.

Q2: Is the HIEE400316R2 compatible with my existing ABB Unitrol system, and can it replace an older revision?
The HIEE400316R2 UDA327 AE02 is designed for use within the ABB Unitrol 5000 and Unitrol 6000 excitation system families. It is backward-compatible with earlier Unitrol platform revisions in most configurations, though we recommend confirming the firmware version and hardware revision of your existing system before quotationing. ZYPLC’s technical team can assist with compatibility verification based on your system’s nameplate data and existing board revision.

Q3: What testing and quality assurance process does ZYPLC apply before shipping this board?
Every ABB HIEE400316R2 unit supplied by ZYPLC undergoes a structured functional test protocol that includes power-on verification, signal I/O integrity checks, communication interface testing, and visual inspection for component-level defects. Units that pass all test criteria are issued a test report and dispatched with a Units that fail any test criterion are quarantined and not offered for sale. This process ensures that customers receive a board that is prepared for installation after site verification without the risk of infant mortality failures.

Q4: What is the lead time, and what does the cover?
ZYPLC maintains RFQ-based sourcing support of the HIEE400316R2 UDA327 AE02 and can typically dispatch within 1–3 business days of order confirmation. International shipping is available to most industrial regions. The covers all functional failures attributable to manufacturing defects or component-level faults under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed promptly, with replacement or repair options available depending on fault diagnosis.
