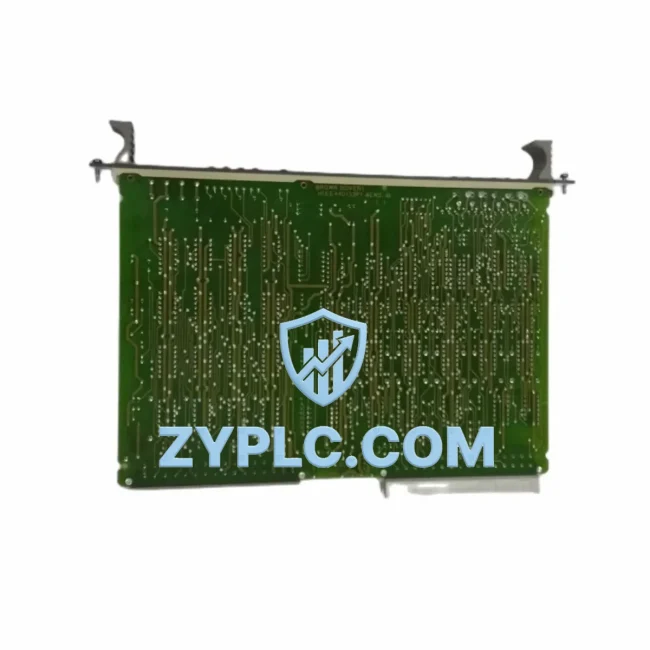

ABB HIEE401091R0002 Industrial Network Interface for AC800M Systems

ABB HIEE401091R0002 Industrial Network Interface for AC800M Systems: Bridging the Industrial Data Link

The ABB HIEE401091R0002 GD9924BE-V2 is a high-performance DCS I/O Extension Card engineered for the ABB AC800M Distributed Control System platform. Designed to extend the I/O capacity of AC800M controllers, this module serves as a critical node in the industrial data link — connecting field-level sensors, actuators, and remote I/O assemblies to the supervisory control layer with deterministic, low-latency communication. In smart factory environments where data integrity and network uptime are non-negotiable, the HIEE401091R0002 delivers the signal acquisition, protocol handling, and real-time transmission capabilities that modern industrial automation demands.

Whether deployed in power generation, oil and gas processing, chemical plants, or advanced manufacturing lines, this extension card enables seamless integration between field instrumentation and the AC800M controller backbone. It supports the high-speed internal bus architecture of the AC800M platform, ensuring that process variables — from analog 4–20 mA transmitters, RTDs, and thermocouples to digital discrete I/O signals — are captured, conditioned, and forwarded to the controller with minimal cycle time overhead. The result is a tightly coupled automation network where every data point, from pressure transducer readings to motor drive status, is available in real time to the SCADA and HMI layers above.

Network Communication Table

Connected Automation Data Flow

In a fully integrated AC800M-based DCS architecture, the HIEE401091R0002 extension card operates at the heart of the field-to-control data pipeline. At the lowest layer, field instruments — including ABB TZIDC digital positioners, Endress+Hauser pressure transmitters, and Yokogawa temperature sensors — feed analog and discrete signals into the I/O extension card’s input channels. These signals are digitized and passed through the AC800M’s internal communication bus to the PM866 or PM891 processor modules, where control logic executes in real time.

Upstream from the controller, the processed data flows via PROFIBUS DP or Modbus TCP/IP gateways — such as the ABB CI854A PROFIBUS DP Interface Module — to the plant’s SCADA server. Operators monitoring the process through ABB System 800xA or third-party SCADA platforms like Wonderware InTouch or Ignition receive live process values, alarm states, and trend data with sub-second latency. HMI panels — including ABB CP600 series operator panels — display real-time dashboards sourced directly from the AC800M controller network, giving floor-level operators immediate visibility into process conditions.

For remote I/O expansion beyond the main control cabinet, the HIEE401091R0002 works in conjunction with ABB S800 I/O modules — such as the AI810 analog input module and DO810 digital output module — distributed across the plant floor via PROFIBUS DP fieldbus segments. Variable frequency drives, including ABB ACS880 series drives, report speed references, torque feedback, and fault codes back through the same fieldbus network, enabling closed-loop motor control and predictive maintenance data collection within a single unified architecture.

At the edge, industrial gateways — such as the Moxa MGate MB3480 or HMS Anybus X-gateway — bridge legacy serial protocols (RS-485 Modbus RTU) from older field devices into the Ethernet-based DCS backbone, ensuring that no data island is left disconnected. The entire data chain — from sensor signal acquisition through protocol conversion, network transmission, real-time control, SCADA visualization, and remote diagnostics — is anchored by the reliable I/O extension capacity that the HIEE401091R0002 provides.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation: legacy PLCs speaking Modbus RTU, newer DCS nodes running PROFIBUS DP, and cloud-connected edge devices expecting OPC-UA or MQTT. The ABB HIEE401091R0002 addresses this by serving as a standardized I/O expansion point within the AC800M ecosystem, which natively supports multi-protocol gateway configurations through its CI-series communication interface modules.

Data silos — where process data is trapped within isolated control islands and unavailable to plant-wide MES or ERP systems — are eliminated when the AC800M platform is properly extended with modules like the HIEE401091R0002. By increasing the available I/O count, engineers can connect additional field devices to the DCS without deploying separate standalone PLCs that would otherwise create disconnected data pools. All process variables remain within a single, unified control namespace accessible to the ABB System 800xA information management layer.

Remote monitoring and diagnostics are equally enhanced. With the HIEE401091R0002 in place, maintenance engineers can use ABB’s Control Builder M engineering tool to perform online diagnostics, force I/O channels for commissioning, and monitor channel-level health — all without physical access to the cabinet. This capability is critical for unmanned substations, offshore platforms, and geographically distributed process plants where on-site intervention is costly and time-consuming.

Production line transparency — the ability to see every machine state, every process variable, and every alarm condition in real time — is the foundation of smart factory operations. The HIEE401091R0002 contributes directly to this transparency by ensuring that the AC800M controller always has sufficient I/O capacity to connect every relevant field device, leaving no process point unmonitored and no data gap in the plant’s digital twin.

System scalability is built into the design philosophy of the AC800M platform. As production lines expand or new process units are commissioned, additional HIEE401091R0002 extension cards can be added to existing controller racks without architectural redesign, protecting the capital investment in the existing DCS infrastructure and reducing the engineering cost of future expansions.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB HIEE401091R0002 support within the AC800M DCS architecture?
The HIEE401091R0002 operates on the AC800M’s internal backplane bus and is compatible with the broader AC800M communication ecosystem, which supports PROFIBUS DP (via CI854A), Modbus TCP/IP, FOUNDATION Fieldbus, and OPC-UA through the System 800xA integration layer. This makes it suitable for multi-protocol industrial networks where legacy and modern field devices coexist.

Q2: How does this I/O extension card affect network stability and communication latency in a live DCS environment?
The HIEE401091R0002 is designed for deterministic, real-time I/O scanning within the AC800M controller cycle. It does not introduce additional network hops or protocol conversion overhead at the field level, maintaining the low-latency, high-reliability communication characteristics of the AC800M platform. Typical controller scan cycles remain in the 10–100 ms range depending on configuration.

Q3: Can the HIEE401091R0002 be integrated with third-party SCADA systems and HMI platforms?
Yes. Because the HIEE401091R0002 extends the I/O capacity of the AC800M controller — which communicates upstream via standard industrial protocols including OPC-DA/UA and Modbus TCP — its data is accessible to any SCADA platform with compatible drivers, including Wonderware InTouch, Ignition, Siemens WinCC, and GE iFIX. HMI panels from ABB, Siemens, and Schneider Electric can all display process values sourced through this module.

Q4: What quality assurance and warranty coverage is provided with the HIEE401091R0002?
Every HIEE401091R0002 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify I/O channel integrity, communication bus handshake, and power supply compatibility. A 12-month warranty is included with every unit, covering manufacturing defects and functional failures under normal operating conditions. Global shipping via DHL and FedEx Express ensures fast delivery with full tracking. For RFQ, lead time, and technical support, contact us at [email protected] or +86 19859288691.
