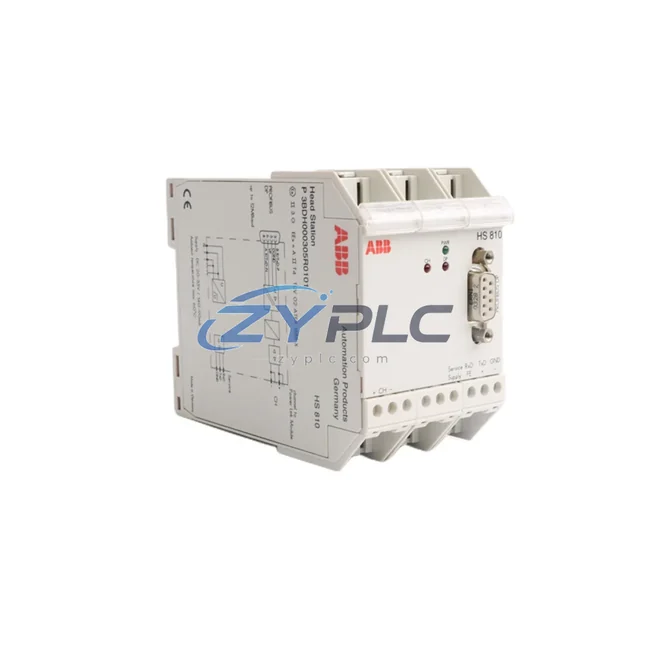

ABB HS810 PROFIBUS DP/PA Communication Gateway for 800xA Systems

ABB HS810 PROFIBUS DP/PA Communication Gateway: Industrial Data Link for Smart Factory Connectivity

The ABB HS810 is a high-performance PROFIBUS DP/PA Communication Gateway engineered for seamless integration within ABB’s 800xA Distributed Control System. Designed to serve as the critical data bridge between field-level instrumentation and upper-level control networks, the HS810 enables reliable, real-time signal transmission across complex industrial topologies. Whether deployed in oil & gas processing, chemical manufacturing, power generation, or advanced discrete automation, this gateway delivers the protocol conversion precision and network stability that modern smart factories demand.

In today’s industrial landscape, the ability to unify heterogeneous device communication under a single, coherent data architecture is no longer optional — it is the foundation of operational excellence. The ABB HS810 addresses this need directly, acting as the intelligent head station that connects PROFIBUS PA field devices to the PROFIBUS DP backbone, and ultimately to the 800xA system controller and SCADA layer.

Compatibility & Integration Notes

Connected Automation Data Flow

The ABB HS810 sits at the heart of a layered industrial communication architecture. At the field level, PROFIBUS PA instruments — including ABB TTF300 temperature transmitters, ABB FSM4000 electromagnetic flowmeters, and ABB 266 series pressure transmitters — transmit process values over the intrinsically safe PA segment. The HS810 head station receives these signals and performs transparent protocol conversion, forwarding structured data packets upstream via the PROFIBUS DP backbone at speeds up to 12 Mbit/s.

On the DP network, the HS810 communicates directly with the ABB AC800M controller, the core processing unit of the 800xA platform. The AC800M aggregates data from multiple HS810 gateways deployed across different process areas, consolidating field device status, measured values, and diagnostic information into a unified process database. This data is then made available to the ABB 800xA Operator Workplace — the HMI layer — where operators monitor live process trends, configure alarm thresholds, and initiate control actions in real time.

For remote I/O expansion, the HS810 integrates naturally alongside ABB S800 I/O modules, including AI810, AO810, DI810, and DO810 cards, which handle analog and digital signal conditioning at the marshalling cabinet level. These I/O modules feed additional process data into the same 800xA control network, ensuring that the HS810 gateway operates within a fully coordinated, multi-node data flow rather than as an isolated component.

At the drive and motion layer, ABB ACS880 variable frequency drives equipped with PROFIBUS DP fieldbus adapters connect to the same DP segment, enabling the 800xA system to monitor motor speed, torque, energy consumption, and fault status without additional wiring infrastructure. This integration is particularly valuable in pump stations, compressor trains, and conveyor systems where drive performance directly impacts process throughput.

The data chain extends further to the SCADA layer, where ABB System 800xA Information Management collects historian data from all connected field devices via the HS810 gateway. Long-term trend analysis, production reporting, and regulatory compliance logging are all supported through this architecture. For sites requiring edge computing capabilities, the HS810 data stream can be forwarded to an ABB Edge Gateway or third-party industrial IoT platform via OPC UA bridging at the 800xA server level, enabling cloud-based analytics and predictive maintenance workflows.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of legacy field devices using older communication standards alongside modern digital instruments. Without a capable gateway like the ABB HS810, PROFIBUS PA instruments remain isolated from the plant’s control and monitoring infrastructure, creating data silos that obscure process performance and complicate maintenance planning.

The HS810 eliminates this isolation by providing a standards-compliant, transparent bridge between the PA field segment and the DP control network. Plant engineers no longer need to rely on manual readings or standalone data loggers for PA instrument values — all process data flows automatically and continuously into the 800xA historian and operator displays. This transparency enables production line visibility at every level, from individual sensor readings to plant-wide KPI dashboards.

Remote diagnostics represent another critical capability enabled by the HS810. Through the PROFIBUS PA protocol’s built-in device diagnostic functions, the 800xA system can query connected instruments for self-test results, calibration status, and fault codes — all without dispatching a technician to the field. This capability significantly reduces mean time to repair (MTTR) and supports predictive maintenance strategies that keep production uptime high.

For plants undergoing phased modernization, the HS810 supports system expansion without disruption. Additional PA field devices can be added to an existing segment up to the maximum device count, and new HS810 gateways can be commissioned on the DP network to extend coverage to new process areas. This scalability protects the initial infrastructure investment while accommodating future growth in instrumentation density and data requirements.

Every ABB HS810 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, protocol handshake performance, and power supply stability before dispatch. Units are covered by a warranty terms confirmed during quotation from the date of delivery, with availability confirmed by RFQ availability ensuring short lead times for urgent project requirements.

Industrial Connectivity FAQ

Q1: What is the maximum communication latency between a PROFIBUS PA field device and the 800xA operator display when using the ABB HS810?
The PROFIBUS PA segment operates at a fixed 31.25 kbit/s data rate per IEC 61158-2, with typical cycle times in the range of 10–100 ms depending on the number of connected devices and the configured polling interval. The HS810 forwards data to the PROFIBUS DP backbone at up to 12 Mbit/s, introducing negligible additional latency. End-to-end latency from field device to 800xA operator display is typically well under 500 ms under normal network load conditions.

Q2: Is the ABB HS810 compatible with third-party PROFIBUS PA instruments from vendors other than ABB?
Yes. The HS810 is fully compliant with the PROFIBUS PA specification (IEC 61158-2) and supports standard GSD (General Station Description) file-based device integration. Third-party PA instruments from Endress+Hauser, Siemens, Yokogawa, Emerson, and other vendors can be connected to the HS810 segment provided they carry valid PROFIBUS PA certification. Device-specific function blocks and extended diagnostics may require vendor-supplied GSD files to be imported into the 800xA engineering environment.

Q3: How does the ABB HS810 handle network faults or segment failures without causing a full system shutdown?
The HS810 is designed with fault isolation in mind. If a PA segment experiences a short circuit or device failure, the head station’s built-in protection circuitry limits fault propagation to the affected segment only, leaving other HS810 gateways and DP network nodes fully operational. The 800xA system generates alarm notifications for the affected segment, and diagnostic data from the HS810 helps operators identify the fault location without physical inspection of the field wiring.

Q4: What warranty and after-sales support does ZYPLC provide for the ABB HS810?
All ABB HS810 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit is functionally tested prior to dispatch to verify PROFIBUS DP/PA communication performance. In the event of a warranty claim, ZYPLC provides replacement or repair support with priority handling for production-critical applications. Our technical team is available to assist with commissioning guidance, GSD file configuration, and 800xA integration support throughout the warranty period.
