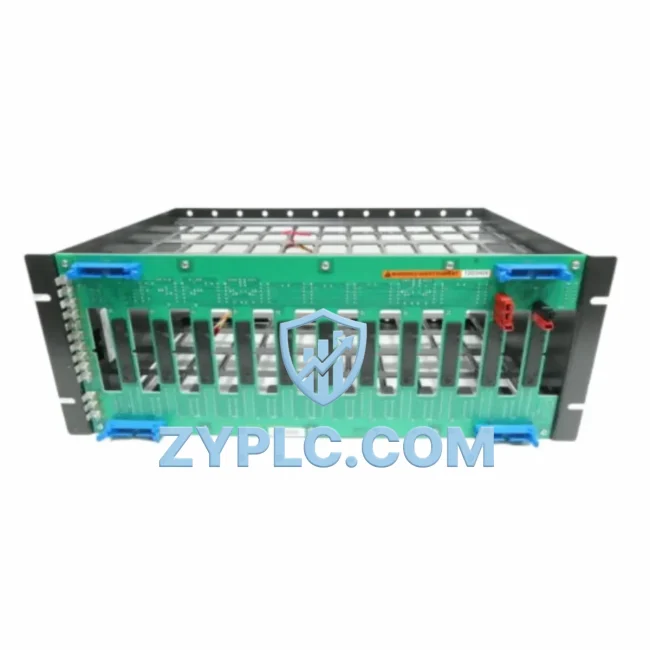

ABB IEMMU11 Industrial Network Interface for S800 I/O Systems

ABB IEMMU11 Industrial Network Interface for S800 I/O Systems: Backbone of Smart Factory Data Links

The ABB IEMMU11 is a rear-mounting Module Mounting Unit engineered for ABB’s S800 I/O platform, serving as the structural and electrical backbone that connects distributed I/O modules to the AC 800M process controller in industrial automation networks. Designed for demanding process industries — including oil & gas, power generation, chemical processing, and advanced manufacturing — the IEMMU11 enables dense, reliable I/O module integration within DCS cabinets, supporting seamless data flow from field devices to supervisory control systems.

In a modern smart factory, data integrity begins at the field level. The IEMMU11 provides the physical mounting and backplane connectivity for ABB S800 I/O modules such as the AI810 (analog input), AO810 (analog output), DI810 (digital input), and DO810 (digital output) modules, ensuring that signals from sensors, transmitters, and actuators are reliably captured and transmitted upstream. These signals travel through the S800 I/O bus to the CI854 PROFIBUS DP communication interface module, which bridges the field I/O network to the AC 800M controller — ABB’s flagship DCS controller for process automation.

Network Communication Table

Connected Automation Data Flow

The IEMMU11’s role in the industrial data chain extends far beyond simple mechanical support. In a typical ABB System 800xA DCS architecture, field instruments — including pressure transmitters, flow meters, thermocouples, and valve positioners — connect to S800 I/O modules mounted on the IEMMU11 backplane. The CI854A PROFIBUS DP communication interface module aggregates this I/O data and transmits it over the PROFIBUS DP network to the AC 800M PM864 controller, where real-time process logic executes at millisecond cycle times.

From the controller, processed data flows upward to the ABB System 800xA SCADA/HMI platform, where operators monitor live process variables, configure alarm thresholds, and execute remote control commands. The 800xA platform integrates natively with the S800 I/O infrastructure, enabling full asset management, loop diagnostics, and predictive maintenance workflows without additional protocol gateways.

For sites requiring integration with third-party systems, the CI860 FOUNDATION Fieldbus HSE linking device or a Modbus TCP gateway can be deployed alongside the IEMMU11-based I/O clusters, bridging ABB’s proprietary S800 bus data into open industrial Ethernet networks. This allows SCADA platforms such as Wonderware, Ignition, or Siemens WinCC to consume real-time process data from ABB field devices without replacing existing infrastructure.

Remote I/O expansion is another key application. By deploying IEMMU11 mounting units in remote marshalling cabinets — connected back to the main AC 800M controller via CI853 Modulebus optical fiber communication interface — engineers can extend the I/O network across large plant footprints without signal degradation. This architecture supports up to 12 S800 I/O modules per IEMMU11 unit, enabling scalable, high-density I/O configurations for complex process plants.

Edge connectivity is increasingly important in Industry 4.0 deployments. The IEMMU11-based I/O clusters can feed data to ABB Edge Computing solutions or third-party industrial edge gateways (such as Moxa, Advantech, or Siemens SINEMA) via OPC UA or MQTT, enabling cloud-based analytics, digital twin synchronization, and AI-driven process optimization without disrupting the real-time control layer.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy process plants is data isolation — where field devices, PLCs, DCS controllers, and SCADA systems operate in silos, unable to share real-time information across the production network. The ABB IEMMU11, as part of the S800 I/O ecosystem, directly addresses this challenge by providing a standardized, high-density I/O mounting infrastructure that integrates seamlessly with both ABB-native and third-party communication protocols.

Protocol Unification: By supporting PROFIBUS DP and FOUNDATION Fieldbus communication interfaces, the IEMMU11-based I/O system can consolidate signals from diverse field devices — regardless of their native protocol — into a single, unified data stream accessible to the AC 800M controller and System 800xA SCADA platform. This eliminates the need for multiple parallel wiring systems and reduces engineering complexity.

Production Line Transparency: With all field I/O data centralized through the S800 bus and accessible via System 800xA, plant managers gain real-time visibility into every process variable — from motor current and valve position to temperature and pressure — enabling data-driven decisions, faster fault diagnosis, and proactive maintenance scheduling.

Remote Monitoring and Diagnostics: The IEMMU11 supports ABB’s asset monitoring tools, allowing maintenance teams to remotely diagnose I/O module health, detect wiring faults, and identify communication errors without physical cabinet access. This capability is critical for unmanned remote stations, offshore platforms, and geographically distributed process plants.

System Scalability: As production capacity grows, additional IEMMU11 units can be added to existing DCS cabinets or deployed in new remote I/O panels, expanding the I/O network without requiring controller replacement or network redesign. This modular scalability protects capital investment and reduces upgrade costs.

Outgoing Test & Quality Assurance: Every IEMMU11 unit supplied by ZYPLC undergoes full functional testing prior to shipment, verifying backplane connectivity, module slot integrity, and bus communication performance. Units are supplied with a 12-month warranty covering manufacturing defects and communication failures.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB IEMMU11 support?
The IEMMU11 itself is a passive mounting unit that provides the S800 I/O backplane bus. Protocol support — including PROFIBUS DP, FOUNDATION Fieldbus, and Modbus TCP — is determined by the communication interface module (e.g., CI854, CI860, CI853) installed in the S800 I/O cluster. This makes the IEMMU11 protocol-agnostic and compatible with a wide range of industrial network architectures.

Q2: Is the IEMMU11 compatible with the ABB AC 800M controller series?
Yes. The IEMMU11 is fully compatible with all AC 800M controller variants, including the PM860, PM861, PM864, and PM866 processor modules, when used with the appropriate S800 I/O communication interface. It is also backward-compatible with earlier ABB Advant OCS and Master controllers via legacy communication modules.

Q3: How does the IEMMU11 contribute to network stability in DCS environments?
By providing a rigid, rear-mount backplane structure, the IEMMU11 ensures consistent electrical contact between I/O modules and the S800 bus, minimizing the risk of intermittent connections that can cause communication timeouts, spurious alarms, or process upsets. The backplane design also supports hot-swap capability on compatible S800 I/O modules, enabling module replacement without process shutdown.

Q4: What warranty and testing does ZYPLC provide for the IEMMU11?
All IEMMU11 units are covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification testing including backplane bus continuity, module slot inspection, and communication interface compatibility checks. Expedited shipping is available for urgent MRO and plant shutdown requirements.
