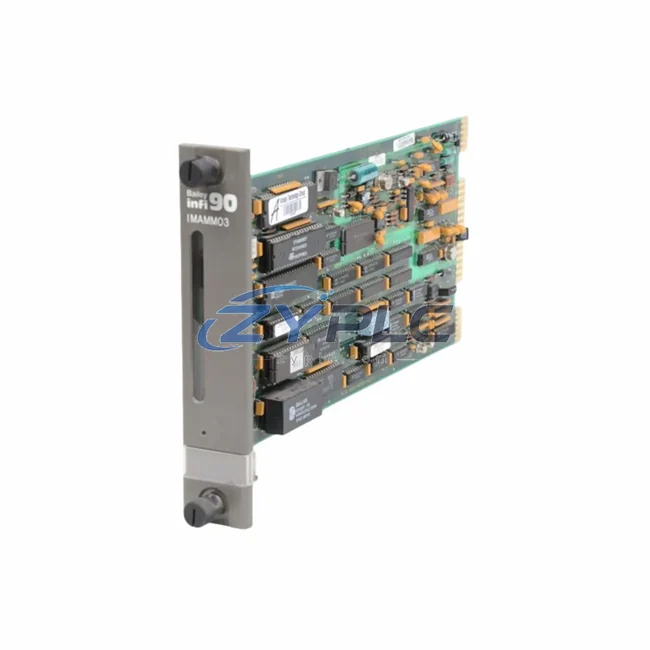

ABB IMAMM03 Analog Module for INFI 90 Automation
The ABB IMAMM03 Analog Master Module is a precision-engineered control component designed for the INFI 90 Distributed Control System (DCS). In modern industrial environments where energy costs and equipment utilization directly impact profitability, the IMAMM03 plays a central role in bridging analog field signals with the digital control layer — enabling tighter process loops, reduced unplanned downtime, and more responsive production line management. Whether deployed in power generation, chemical processing, oil and gas, or heavy manufacturing, this module delivers the signal integrity and processing speed that maintenance-focused automation demands.
Product Specification Table
| Parameter |
Specification / Value |
| Module Type |
Analog Master Module (AMM) |
| SKU / Part Number |
IMAMM03 |
| Compatible System |
ABB INFI 90 DCS |
| Signal Channels |
Multi-channel analog I/O (4–20 mA / 0–10 V) |
| Operating Efficiency |
High-resolution A/D conversion, <0. 1% linearity error |
| Power Consumption |
Low-power backplane design, optimized for 24 VDC bus |
| Application Environment |
Industrial DCS cabinets, control rooms, process automation panels |
| Energy Saving Value |
Enables closed-loop PID control to minimize motor and actuator overdrive |
| Operating Temperature |
0°C to 60°C |
| Warranty |
warranty terms confirmed during quotation |
System Compatibility and Application
The IMAMM03 does not operate in isolation — its true value emerges when integrated into a well-designed INFI 90 automation architecture. At the field level, analog transmitters measuring flow, pressure, temperature, and current feed real-time process data into the IMAMM03. This data is then passed to the INFI 90 controller modules such as the IMMFP12 (Multi-Function Processor) and IMCPM02 (Control Processor Module), which execute PID and advanced control algorithms to maintain setpoints with minimal energy expenditure.
On the drive side, the IMAMM03 analog output channels interface directly with ABB ACS880 and ACS580 series variable frequency drives (VFDs), allowing the control system to modulate motor speed in real time based on actual process demand rather than running motors at fixed full speed. This single integration point — analog command signal from IMAMM03 to VFD — can help restore stable operation when a compatible replacement is required.
For I/O expansion and distributed signal collection, the IMAMM03 works alongside modules such as the IMDSI02 (Digital Input Module) and IMDSO04 (Digital Output Module), forming a complete I/O subsystem that captures both analog process variables and discrete equipment states. This combined data set feeds into the INFI 90 historian and the IMHSS03 (High-Speed Serial Interface) for upstream SCADA and maintenance planning system (EMS) integration.
Power quality monitoring is further enhanced when the IMAMM03 is paired with ABB’s M2M DMTME series power meters or the EQ meters integrated via the INFI 90 communication bus. These instruments capture real-time kWh, power factor, and harmonic distortion data, which the control system uses to schedule high-load operations during off-peak tariff windows — supporting earlier maintenance decisions and reducing unplanned downtime risk. The IMASM03 (Analog Slave Module) complements the IMAMM03 in larger systems by extending the analog channel count without adding controller overhead.
At the HMI layer, operators interact with the INFI 90 system through the INFI 90 Operator Console or modern OPC-UA connected SCADA stations, where energy dashboards built on IMAMM03 data streams display live efficiency KPIs, trend charts, and alarm states. This visibility enables shift engineers to identify inefficient operating zones and take corrective action before unplanned downtime accumulates into significant cost.
Maintenance and Replacement Notes
In a typical continuous process plant — such as a pulp and paper mill or a petrochemical refinery — dozens of pumps, compressors, and agitators run simultaneously. Without precise analog feedback and closed-loop control, these machines are often operated conservatively at higher-than-necessary speeds to ensure process stability, resulting in chronic energy overconsumption. The IMAMM03 addresses this directly by providing the high-resolution analog measurement backbone that makes tight, responsive PID control possible.
Consider a cooling water circulation system: flow transmitters send 4–20 mA signals to the IMAMM03, which relays accurate flow values to the IMMFP12 controller. The controller compares actual flow against the setpoint and issues a corrected analog output via the IMAMM03 to the ACS880 VFD driving the pump motor. The result is a pump that runs only as fast as the process requires — eliminating the energy penalty of constant full-speed operation. In facilities with multiple such loops, the cumulative operational stability can reach hundreds of megawatt-hours annually.
Beyond energy, the IMAMM03 contributes to predictive maintenance strategies. By monitoring analog signals for drift, noise, or out-of-range conditions, the INFI 90 system can flag degrading sensors, clogged filters, or bearing wear in rotating equipment before a failure occurs. This reduces unplanned downtime, extends equipment service life, and lowers maintenance labor costs — all of which improve the overall equipment effectiveness (OEE) of the production line.
Every IMAMM03 unit shipped from ZYPLC undergoes full functional testing including channel accuracy verification, loop-back signal testing, and backplane communication checks. Units are supplied with a warranty terms confirmed during quotation and are available from stock for rapid deployment, minimizing project lead times and reducing the risk of extended production outages due to spare parts delays.
Product Sourcing FAQ
Q1: How does the IMAMM03 contribute to operational stability in motor-driven systems?
The IMAMM03 provides high-accuracy analog output signals to variable frequency drives such as the ABB ACS880, enabling the control system to modulate motor speed precisely according to process demand. This eliminates motor overdrive and reduces operating load by 20–50% in variable-load applications such as pumps, fans, and compressors.
Q2: Is the IMAMM03 compatible with modern SCADA and maintenance planning systems?
Yes. The IMAMM03 operates within the ABB INFI 90 DCS architecture, which supports OPC-UA, Modbus, and PROFIBUS communication via interface modules such as the IMHSS03. This allows seamless integration with SCADA platforms and enterprise maintenance planning systems for real-time monitoring and reporting.
Q3: Can the IMAMM03 replace older ABB analog modules in existing INFI 90 installations?
The IMAMM03 is designed as a direct replacement for earlier-generation ABB INFI 90 analog master modules. Before installation, verify backplane slot compatibility and firmware revision requirements with your system documentation. ZYPLC’s technical team can assist with cross-reference validation and pre-shipment configuration checks.
Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All IMAMM03 units are tested for analog channel accuracy, signal linearity, backplane communication integrity, and power rail stability prior to shipment. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair is provided at no charge within the warranty period. Contact ZYPLC for RMA procedures and technical support.
