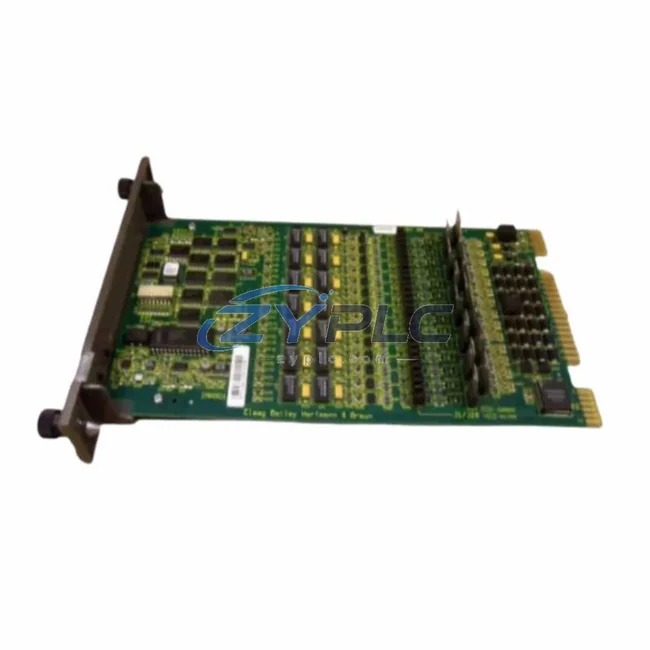

ABB IMAS011 Analog Output Module Advant

ABB IMAS011 Analog Output Module for Advant Automation

The ABB IMAS011 is a high-precision analog output module engineered for the ABB Advant MasterBus 300 series distributed control architecture. Designed to deliver stable, low-drift analog signal output in demanding industrial environments, the IMAS011 plays a critical role in reducing unplanned downtime risk by enabling accurate, real-time control of field actuators — including control valves, variable-speed drives, and proportional solenoids — without signal overshoot or hunting that wastes drive energy and accelerates mechanical wear.

In modern manufacturing and process plants, imprecise analog output signals are a hidden source of energy loss. When a 4–20 mA output drifts or oscillates, downstream devices such as frequency inverters and servo amplifiers compensate by drawing abnormal load, shortening motor life and inflating energy bills. The IMAS011 eliminates this inefficiency through its tightly regulated output channels, ensuring that every connected actuator receives exactly the command signal it needs — no more, no less.

Product Specification Table

System Compatibility and Application

The ABB IMAS011 is most effective when deployed as part of a fully integrated industrial control architecture. In a typical Advant-based plant, the IMAS011 sits within the ABB AC450 controller rack, receiving setpoint data from the process control layer and translating it into precise analog commands for field devices. This tight integration with the ABB MasterBus 300 communication backplane ensures deterministic signal delivery with minimal latency — a key factor in preventing energy-wasting control oscillations.

On the drive side, the IMAS011 output channels connect directly to ABB ACS800 series AC drives and ABB ACS550 variable frequency drives, providing the speed reference signals that govern motor load. Because the IMAS011 delivers a clean, stable 4–20 mA reference, the drives operate at their optimal efficiency curve rather than hunting between speed setpoints. In pump and fan applications, this alone can help restore stable operation when a compatible replacement is required.

For servo-driven axes, the IMAS011 interfaces with ABB MicroFlex servo drives and compatible third-party servo amplifiers, providing torque and velocity references that keep production line cycle times consistent. Consistent cycle times mean fewer acceleration/deceleration events per shift, directly reducing reactive power demand and peak current draw on the facility’s electrical infrastructure.

On the monitoring side, the IMAS011 works in concert with ABB IMASM01 analog input modules to close the energy feedback loop — output commands are sent via IMAS011, and actual process values (flow, pressure, temperature) are read back through IMASM01 channels into the AC450 controller. This closed-loop architecture enables the controller to continuously trim output signals for minimum energy use while maintaining process targets.

Digital I/O coordination is handled by companion modules such as the ABB IMDSO14 digital output module and ABB IMDSI22 digital input module, which manage equipment start/stop sequencing in synchronization with the IMAS011 analog ramp commands. This sequenced startup strategy prevents inrush current spikes that stress power distribution equipment and inflate demand charges.

At the HMI layer, operators monitor energy KPIs and analog output status through ABB Panel 800 operator terminals connected via the MasterBus network, giving production teams real-time visibility into drive setpoints, output channel health, and operating load trends — enabling proactive adjustments before inefficiencies escalate into downtime.

Maintenance and Replacement Notes

In continuous process industries — chemical plants, water treatment facilities, pulp and paper mills — the ABB IMAS011 delivers measurable operational stability by ensuring that pump and compressor drives receive stable, accurate speed references at all times. A drifting analog output in a pump control loop can cause the pump to run 5–10% above its best efficiency point (BEP) continuously, wasting kilowatts around the clock. The IMAS011’s 12-bit resolution and isolated output channels eliminate this drift, keeping pumps locked to their BEP and reducing annual energy costs.

In discrete manufacturing — automotive assembly, electronics production, food and beverage packaging — the IMAS011 optimizes production line throughput by providing precise speed references to conveyor drives and robotic positioning systems. Consistent analog output means consistent line speed, which reduces the frequency of emergency stops and restarts that consume disproportionate energy and cause mechanical stress. Fewer unplanned stops also translate directly into higher overall equipment effectiveness (OEE) and lower maintenance costs per unit produced.

From a predictive maintenance perspective, the IMAS011’s stable output channels serve as a diagnostic baseline. When a channel’s output begins to deviate from its commanded value — detectable through the AC450 controller’s self-diagnostics — maintenance teams receive early warning of module aging before it causes process upsets. This predictive capability reduces unplanned downtime, which is one of the largest hidden energy costs in industrial operations: restarting a cold process line consumes far more energy than maintaining a running one.

Every IMAS011 unit shipped by ZYPLC undergoes full functional testing across all output channels prior to dispatch, with load testing at both 4 mA and 20 mA endpoints to verify linearity and channel isolation. Units are supplied with a warranty terms confirmed during quotation covering all manufacturing defects, giving procurement and maintenance teams confidence in long-term reliability and total cost of ownership.

Product Sourcing FAQ

Q1: How does the ABB IMAS011 contribute to measurable operational stability in a VFD-controlled system?
The IMAS011 provides a stable, low-noise 4–20 mA speed reference to ABB ACS800 or ACS550 variable frequency drives. A clean reference signal prevents the drive from hunting between speed setpoints, which eliminates unnecessary acceleration/deceleration cycles. In pump and fan applications operating on affinity laws, even a 2–3% reduction in average speed translates to a 6–9% reduction in power consumption. Stable analog output is the foundation of efficient VFD operation.

Q2: Is the IMAS011 compatible with non-ABB control systems or third-party backplanes?
The IMAS011 is designed specifically for the ABB Advant MasterBus 300 backplane and is fully compatible with ABB AC450 and AC410 controllers. It is not a universal module and requires the Advant rack infrastructure. However, its analog output signals (4–20 mA / 0–10 V) are industry-standard and can drive any field device that accepts these signal types, regardless of brand — including third-party VFDs, positioners, and servo amplifiers.

Q3: What is the recommended replacement or upgrade path if the IMAS011 is discontinued or unavailable?
For systems requiring direct replacement, ZYPLC supports RFQ sourcing for tested IMAS011 units with same-day shipping capability. For system upgrades, the ABB Advant platform can be migrated to ABB System 800xA with compatible I/O modules; however, this requires a full engineering assessment. ZYPLC recommends keeping at least one spare IMAS011 per controller rack to minimize downtime risk during the transition period.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every ABB IMAS011 supplied by ZYPLC is tested for full channel functionality, output linearity across the 4–20 mA range, channel-to-channel isolation, and backplane connector integrity before shipment. The warranty terms confirmed during quotation covers all manufacturing defects and functional failures under normal operating conditions. Units that fail in the field within the warranty period are replaced or repaired at no charge. Test reports are available upon request for quality-critical procurement processes.
