ABB IMDSI14 Digital Input Module for AC800M Systems

ABB IMDSI14 Digital Input Module: Industrial Data Link for AC800M Smart Factory Systems

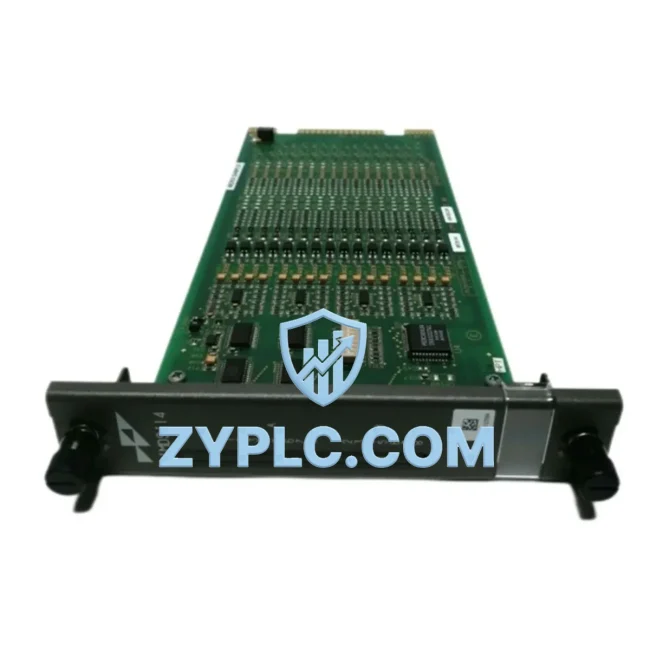

The ABB IMDSI14 is a high-density 48VDC digital input module engineered for the ABB AC800M Distributed Control System (DCS) platform. Designed to serve as a critical node in the industrial data chain, the IMDSI14 captures discrete field signals from sensors, limit switches, proximity detectors, and process interlocks, converting raw electrical states into structured digital data that flows seamlessly into the AC800M controller fabric. In smart factory environments where real-time visibility and deterministic control are non-negotiable, the IMDSI14 delivers the signal integrity and protocol compatibility required to keep production lines transparent, responsive, and connected.

From signal acquisition at the field device level through protocol-layer communication to SCADA visualization and remote diagnostics, the IMDSI14 occupies a foundational role in the industrial connectivity chain. Its tight integration with the AC800M backplane ensures that every input state change is captured with minimal latency and propagated to the control logic without data loss — a prerequisite for alarm management, safety interlock verification, and production event logging.

Network Communication Table

Connected Automation Data Flow

In a typical AC800M-based process automation architecture, the IMDSI14 sits at the edge of the I/O layer, collecting binary status signals from field instruments and feeding them upstream through the S800 I/O bus to the ABB PM866 or PM864A controller modules. These controllers execute the control logic and pass process data upward via OPC DA/UA or PROFIBUS DP to the ABB System 800xA SCADA and HMI platform, where operators monitor plant-wide status in real time.

For installations requiring protocol bridging — for example, connecting legacy HART field devices or Modbus RTU instruments to the AC800M network — an ABB CI854 PROFIBUS DP communication interface or an AF100 Fieldbus gateway module is deployed alongside the IMDSI14 to handle protocol conversion transparently. This allows the IMDSI14’s captured digital states to be correlated with analog process values from ABB IMFEC12 or IMFEC14 fieldbus interface modules, creating a unified data stream for the DCS.

In remote I/O topologies, the IMDSI14 is often paired with ABB TB820V2 or TB825 ModuleBus optical port modules to extend the I/O network over fiber-optic links to field junction boxes located hundreds of meters from the controller cabinet. This architecture eliminates ground loop interference and ensures signal integrity in electrically noisy industrial environments such as steel mills, chemical plants, and offshore platforms.

At the drive and motor control layer, digital input signals captured by the IMDSI14 — such as motor run/stop feedback, fault relay contacts, and position limit switch states — are cross-referenced with speed and torque data from ABB ACS880 or ACS580 variable frequency drives connected via PROFIBUS DP or EtherNet/IP. This closed-loop data flow enables the AC800M controller to execute coordinated motor sequencing, energy optimization routines, and predictive maintenance triggers based on real-time field conditions.

For edge computing and IIoT integration, the digital input data aggregated by the IMDSI14 can be forwarded through an ABB Edge Controller or a third-party industrial IoT gateway to cloud-based analytics platforms, enabling remote performance monitoring, OEE calculation, and AI-driven anomaly detection without disrupting the real-time control loop.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation — legacy PLCs speaking Modbus RTU, newer DCS nodes running PROFIBUS DP, and enterprise MES systems expecting OPC UA data, all operating in silos with no unified data backbone. The ABB IMDSI14, as part of the AC800M I/O ecosystem, directly addresses this by providing a standardized, backplane-integrated digital input interface that feeds into the AC800M’s protocol-agnostic communication layer.

By consolidating field-level digital signals into the AC800M data fabric, the IMDSI14 eliminates the need for standalone signal converters and ad-hoc wiring workarounds that introduce latency, maintenance burden, and data integrity risks. Operators gain a single-pane-of-glass view of all discrete input states through the System 800xA HMI, with alarm annunciation, event logging, and trend analysis available without additional middleware.

Remote diagnostics is another area where the IMDSI14 delivers measurable value. Through the AC800M’s built-in diagnostic channels, maintenance engineers can remotely query the health status of each input channel, identify wiring faults, detect signal bounce conditions, and verify interlock logic continuity — all without dispatching field personnel. This capability is particularly valuable in hazardous area installations where physical access is restricted or costly.

For production line transparency and OEE improvement, the IMDSI14’s high-channel-density design allows engineers to instrument more discrete points per cabinet slot, reducing hardware footprint while increasing data granularity. Combined with the AC800M’s high-speed scan cycle, this enables sub-second event capture for machine cycle counting, downtime event logging, and quality gate monitoring — data that feeds directly into MES and ERP systems for production reporting and continuous improvement initiatives.

System expansion is straightforward: additional IMDSI14 modules can be added to the S800 I/O bus without controller reconfiguration, and the AC800M’s modular architecture supports hot-standby redundancy configurations to ensure zero-downtime operation in critical process applications.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB IMDSI14 support, and is it compatible with PROFIBUS DP networks?
The IMDSI14 communicates natively over the ABB ModuleBus backplane protocol within the AC800M / S800 I/O architecture. For PROFIBUS DP integration, a CI854 or equivalent PROFIBUS communication interface module is used as a gateway, allowing the IMDSI14’s digital input data to be exposed on the PROFIBUS DP network and accessed by third-party SCADA systems or master controllers.

Q2: How does the IMDSI14 perform in terms of communication latency and network stability in high-speed process applications?
The IMDSI14 operates on the AC800M’s deterministic ModuleBus scan cycle, which supports update rates suitable for process control and discrete event capture. The backplane bus architecture eliminates Ethernet collision domains and network jitter, ensuring consistent, low-latency data delivery to the PM8xx controller modules. For applications requiring sub-10ms response times, the AC800M controller’s task prioritization features can be configured to give IMDSI14 input scanning the highest execution priority.

Q3: Can the IMDSI14 be integrated with third-party SCADA and HMI systems beyond ABB System 800xA?
Yes. Through the AC800M’s OPC DA/UA server or PROFIBUS DP gateway, IMDSI14 input data can be consumed by any OPC-compliant SCADA platform including Wonderware InTouch, Siemens WinCC, GE iFIX, and Ignition by Inductive Automation. This makes the IMDSI14 a versatile component in multi-vendor automation architectures.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the ABB IMDSI14?
Every ABB IMDSI14 unit supplied by ZYPLC is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on self-test confirmation and visual inspection for physical integrity. Units are shipped in anti-static packaging with full traceability documentation. In-stock units are available for same-day or next-day dispatch to minimize production downtime for urgent requirements.

—
