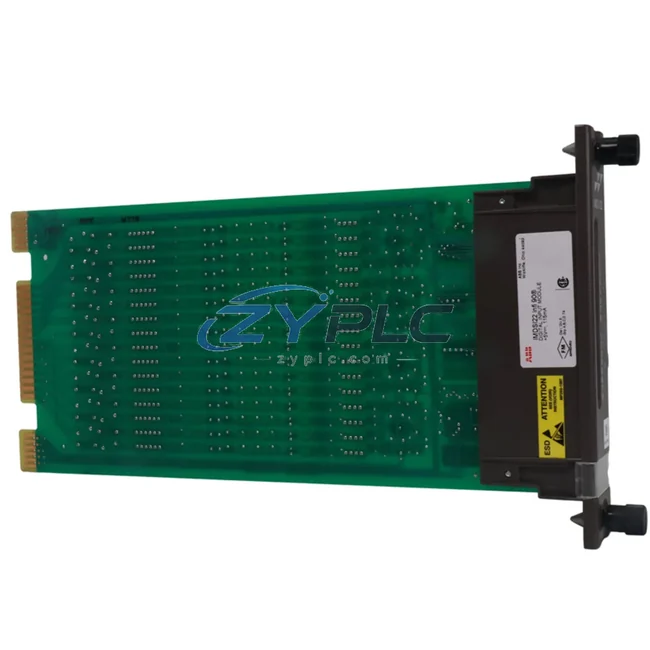

ABB IMDSI22 Digital Input for INFI 90

ABB IMDSI22 Digital Input for INFI 90: Compatibility and Replacement Notes

The ABB IMDSI22 is a discrete digital input module purpose-built for the INFI 90 distributed control system platform — one of ABB’s most enduring and widely deployed process automation architectures. Rather than functioning as a standalone component, the IMDSI22 occupies a critical position within a layered automation hierarchy, serving as the primary field-signal acquisition interface between the physical process environment and the INFI 90 controller network. Understanding its role requires examining how it interacts with every layer of the control system: from field devices and marshalling terminals at the I/O layer, through the controller and communication backbone, up to the operator interface and supervisory systems.

In a fully integrated INFI 90 architecture, the IMDSI22 is installed into a standard INFI 90 I/O rack or expansion chassis, where it shares a common backplane with other I/O modules such as the IMDSO14 digital output module and IMASI23 analog input module. The backplane provides both power distribution and the high-speed internal bus that connects all modules to the IMMFP12 or IMMFP02 multi-function processor — the central controller responsible for executing control logic, managing scan cycles, and coordinating data exchange across the system. This tight physical and electrical integration means that the IMDSI22 does not require individual field wiring to a separate communication interface; instead, all acquired digital states are passed directly to the processor module via the backplane bus, minimizing signal latency and simplifying system diagnostics.

At the field level, the IMDSI22 accepts discrete 24 VDC or 120 VAC input signals from limit switches, proximity sensors, push-button stations, relay contacts, and other binary field devices. These signals are optically isolated before entering the module’s internal logic circuitry, ensuring that transient voltages, ground loops, and electrical noise from the process environment cannot propagate into the controller network. This isolation is particularly important in heavy industrial environments — such as petrochemical plants, power generation facilities, and mineral processing operations — where electromagnetic interference is a persistent challenge. The module’s input channels are individually addressable, allowing the IMMFP12 processor to poll each channel independently and report discrete state changes to the INFI 90 network controller, such as the INNIS21 or INNPM12 network processing module, which manages inter-node communication across the plant-wide control network.

Product Specification Table

System Compatibility Notes

The IMDSI22 achieves its full value only when considered within the broader context of a coordinated INFI 90 control node. A typical INFI 90 control station begins with the IMPS10 or IMPS6 power supply module, which provides regulated DC power to the backplane and all installed I/O modules. Redundant power supply configurations — using dual IMPS10 units with automatic switchover — are common in critical process applications where power interruption cannot be tolerated. The IMDSI22 draws its operating power from this shared backplane supply, eliminating the need for a dedicated external power source and simplifying cabinet wiring.

Adjacent to the IMDSI22 in the I/O rack, engineers typically install the IMDSO14 digital output module to complete the discrete control loop — the IMDSI22 reads field status, the IMMFP12 processor evaluates control logic, and the IMDSO14 drives output devices such as solenoid valves, motor starters, and indicator lamps. For analog process variables, the IMASI23 analog input module and IMASO14 analog output module occupy additional rack slots, providing the 4–20 mA signal handling required for flow transmitters, pressure sensors, and control valve positioners. Together, these modules form a complete mixed I/O node capable of handling both discrete and continuous process variables within a single rack assembly.

At the network layer, the INNIS21 or INNPM12 network processing module connects the local control node to the INFI 90 plant loop — a token-passing communication network that links multiple control stations, historian servers, and operator workstations across the facility. The IMDSI22’s acquired digital states are transmitted across this network to supervisory systems, including ABB’s INFI 90 operator console or third-party SCADA platforms integrated via the INICT03 or INICT04 communication interface modules. This multi-layer communication architecture ensures that field-level discrete signals captured by the IMDSI22 are available in real time at every level of the automation hierarchy, from local control logic to plant-wide production management systems.

For applications requiring high-availability control, the INFI 90 platform supports redundant controller configurations using paired IMMFP12 modules operating in hot-standby mode. In these architectures, both processor modules continuously read the IMDSI22’s input states via the backplane bus, ensuring that a seamless bumpless transfer occurs if the primary processor fails. The IMDSI22’s optical isolation and robust input circuitry contribute directly to this redundancy strategy by ensuring that field-side electrical disturbances do not cause spurious state changes that could trigger unnecessary controller switchovers.

Industrial Application Notes

The IMDSI22 has been deployed across a wide range of industrial sectors where the INFI 90 platform established a long-term installed base. In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the module monitors discrete states from turbine protection systems, breaker position feedback, valve limit switches, and auxiliary equipment status. Its ability to handle both 24 VDC and 120 VAC inputs in a single module simplifies the integration of legacy field devices that may operate at different voltage levels within the same control cabinet.

In petrochemical and refinery applications, the IMDSI22 is used to monitor safety interlock inputs, pump run/stop status, and emergency shutdown system feedback signals. The module’s optical isolation is particularly valued in these environments, where intrinsically safe barriers and galvanic isolators are used to interface with field devices in hazardous areas. The INFI 90 system’s ability to integrate the IMDSI22 with safety-rated I/O modules and the IMMFP12 processor’s configurable watchdog functions supports the implementation of Safety Instrumented System (SIS) layers within the broader process control architecture.

Water and wastewater treatment facilities rely on the IMDSI22 to monitor discrete inputs from pump stations, filter backwash sequences, chemical dosing systems, and level switch arrays. The module’s 22-channel capacity allows a single rack slot to handle a large number of field points, reducing the total number of I/O modules required and minimizing rack space consumption — an important consideration in compact control room installations. Mining and mineral processing operations use the IMDSI22 in conveyor control systems, crusher protection circuits, and flotation cell monitoring applications, where reliable discrete input acquisition is essential for both process efficiency and equipment protection.

In packaging and discrete manufacturing environments, the IMDSI22 supports machine cycle monitoring, part-present detection, and safety gate interlock supervision. Its fast scan cycle — synchronized with the IMMFP12 processor’s execution rate — ensures that high-speed discrete events are captured without missed transitions, supporting accurate production counting and fault detection. Metallurgical and steel plant applications leverage the module in furnace control systems, rolling mill protection circuits, and ladle transfer monitoring, where the combination of electrical isolation and multi-voltage input capability simplifies the integration of diverse field instrumentation.

Product Compatibility FAQ

Q1: Is the IMDSI22 compatible with all INFI 90 rack configurations, and can it be mixed with analog I/O modules in the same chassis?
Yes. The IMDSI22 is designed for the standard INFI 90 I/O rack and is fully compatible with mixed-module configurations. It can occupy any available slot in the rack alongside analog input modules such as the IMASI23, analog output modules such as the IMASO14, and digital output modules such as the IMDSO14. The backplane bus handles all inter-module communication transparently, and the IMMFP12 processor addresses each module by its physical slot position. No special slot assignment is required for the IMDSI22, and it does not impose restrictions on adjacent module types.

Q2: How does the IMDSI22 support long-term maintenance and spare parts management in aging INFI 90 installations?
The IMDSI22 is a direct plug-in replacement for existing INFI 90 digital input slots, requiring no software reconfiguration when replacing a failed module with an identical unit. This hot-swap compatibility — supported by the INFI 90 rack’s backplane architecture — minimizes process downtime during corrective maintenance. For long-term spare parts planning, maintaining a dedicated inventory of IMDSI22 modules is recommended, particularly for facilities where the INFI 90 system is approaching end-of-life support from ABB. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and undergo full functional testing prior to shipment, ensuring that replacement modules perform identically to original factory units.

Q3: What should engineers verify during commissioning when integrating a replacement IMDSI22 into an existing INFI 90 control node?
During commissioning, engineers should verify that the module’s input voltage configuration matches the field wiring voltage level (24 VDC or 120 VAC) for each channel group, confirm that the IMMFP12 processor recognizes the module at its assigned rack slot address, and validate all 22 input channels against the field device states using the INFI 90 engineering workstation diagnostic tools. LED status indicators on the IMDSI22 faceplate provide immediate visual confirmation of module health and channel activity. Additionally, engineers should review the INFI 90 system’s I/O configuration database to ensure that the replacement module’s channel assignments match the original engineering documentation, preventing any mismatch between physical wiring and control logic addressing. ZYPLC’s technical support team is available to assist with system integration guidance throughout the commissioning process.
