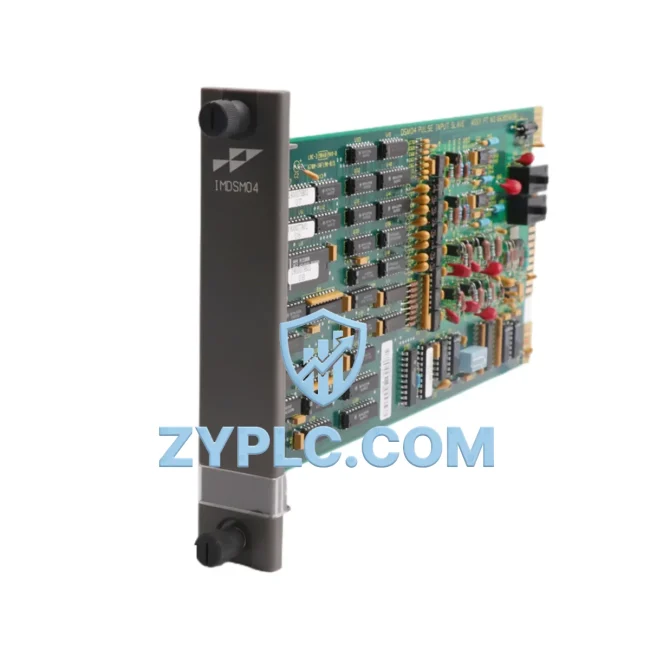

ABB IMDSM04 Industrial Network Interface for AC500 Systems

ABB IMDSM04 Industrial Network Interface for AC500 Systems: Precision Data Link for Smart Factory Connectivity

The ABB IMDSM04 is a high-performance pulse input slave module engineered for the ABB AC500 PLC platform, delivering reliable, real-time signal acquisition and seamless industrial network integration across demanding automation environments. Designed to bridge field-level pulse signals with upper-layer control and monitoring systems, the IMDSM04 serves as a critical data link node in modern smart factory architectures — connecting sensors, drives, remote I/O, and SCADA platforms through a unified, protocol-compliant communication backbone.

With four independent high-speed pulse input channels capable of processing frequencies up to 100 kHz, the IMDSM04 captures encoder feedback, flow meter pulses, and incremental position data with microsecond-level precision. This signal fidelity is essential for closed-loop motion control, energy metering, and production throughput monitoring in industries ranging from automotive assembly to water treatment and discrete manufacturing.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the ABB IMDSM04 sits at the intersection of field instrumentation and the plant-wide control network. Pulse signals from incremental encoders, turbine flow meters, or proximity sensors are wired directly into the module’s four input channels. The IMDSM04 then transmits this high-resolution count and frequency data upstream via the CS31 serial bus to the ABB AC500 CPU modules — such as the PM573 or PM591 — which execute real-time control logic based on the acquired values.

Within the AC500 rack, the IMDSM04 operates alongside complementary I/O modules including the ABB DC532 digital input module and the ABB AX522 analog I/O module, forming a distributed I/O cluster that feeds structured process data into the PLC’s cyclic scan. For sites requiring PROFIBUS-DP connectivity, the IMDSM04 integrates with ABB CI502-PNIO or CI590-CS31-HA communication interface modules, enabling the AC500 system to participate in broader PROFIBUS or PROFINET network segments.

At the supervisory level, real-time pulse count data — converted into engineering units such as flow rate (L/min), rotational speed (RPM), or linear position (mm) — is forwarded via the AC500 CPU to ABB CP600 HMI panels or third-party SCADA platforms including Wonderware InTouch and Ignition by Inductive Automation. Operators gain live visibility into production metrics, with alarm thresholds configured directly in the PLC logic to trigger notifications when pulse rates deviate from setpoints.

For multi-axis motion applications, the IMDSM04 works in tandem with ABB ACS880 variable frequency drives, receiving encoder feedback that the drive uses for closed-loop speed regulation. The pulse data path — from encoder through IMDSM04, across the CS31 bus, into the AC500 CPU, and out to the drive via fieldbus — forms a deterministic control loop with sub-millisecond response times. Edge computing nodes such as the ABB Edge Controller can further aggregate this data for OEE analytics, predictive maintenance, and IIoT cloud forwarding.

Remote I/O expansion is supported through additional ABB TU515 / TU516 terminal units and slave modules on the CS31 network, allowing engineers to extend the pulse input capacity across geographically distributed machine cells without additional PLC hardware. This modular architecture is a cornerstone of ABB’s AC500 scalability philosophy — one CPU, many distributed I/O nodes, one unified data fabric.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — machines and instruments that speak different communication languages, creating data silos that prevent plant-wide visibility. The ABB IMDSM04 addresses this directly by acting as a protocol-transparent pulse acquisition node on the CS31 bus, standardizing raw pulse signals into structured PROFIBUS-compatible data objects that any compliant master device can consume.

Sites that previously relied on standalone pulse counters with no network connectivity can retrofit the IMDSM04 into existing AC500 racks, immediately bringing those measurement points into the SCADA data model. This eliminates manual data collection, reduces transcription errors, and enables real-time production line transparency — operators and engineers can monitor throughput, detect anomalies, and respond to alarms from any networked HMI or SCADA workstation.

For remote diagnostics, the AC500 CPU’s built-in Ethernet port (on models such as the PM5630) allows remote access to all CS31 slave module status data, including the IMDSM04’s channel diagnostics, counter overflow flags, and communication health indicators. Maintenance teams can identify wiring faults, signal noise issues, or counter rollover events without physical site visits, dramatically reducing mean time to repair (MTTR).

System scalability is another key advantage. As production lines expand, additional IMDSM04 modules can be added to the CS31 network up to the bus capacity limit, with no changes required to the upper-layer SCADA or HMI configuration — only the PLC program needs updating to map the new data points. This plug-and-extend architecture supports phased factory automation upgrades without costly system redesigns.

Every IMDSM04 unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying channel integrity, bus communication, and firmware version before dispatch. Stock is maintained for rapid fulfillment, with DHL and FedEx express options available for urgent project timelines. All units are covered by a 12-month warranty against manufacturing defects.

Industrial Connectivity FAQ

Q1: What is the maximum pulse input frequency supported by the IMDSM04, and does it affect communication latency on the CS31 bus?
The IMDSM04 supports up to 100 kHz per channel independently of CS31 bus cycle time. Pulse counting is handled by dedicated hardware counters on the module, so high-frequency inputs do not increase bus latency. The CS31 bus cycle time is determined by the number of slaves and the CPU scan rate, typically ranging from 2 ms to 20 ms for standard AC500 configurations.

Q2: Is the IMDSM04 compatible with PROFIBUS-DP masters from other vendors, or only ABB AC500 CPUs?
The IMDSM04 communicates via the ABB CS31 proprietary serial bus and is designed for use with ABB AC500 CPUs as the CS31 master. It is not a native PROFIBUS-DP slave. However, when the AC500 CPU is equipped with a CI502-PNIO or similar PROFIBUS interface module, the IMDSM04 data can be made available to third-party PROFIBUS-DP masters through the AC500’s gateway functionality.

Q3: How does the IMDSM04 support network stability in electrically noisy industrial environments?
The CS31 bus uses differential serial communication with built-in error detection, providing robust noise immunity in environments with variable frequency drives, welding equipment, and high-current switching loads. The IMDSM04’s input circuits include hardware filtering to suppress spurious pulses from electrical interference, ensuring accurate counts even in electromagnetically challenging installations.

Q4: What does the 12-month warranty cover, and what is the process for warranty claims?
The 12-month warranty covers all manufacturing defects, component failures, and firmware issues present at the time of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with your order reference and a description of the fault. Replacement or repair will be arranged within the warranty period at no additional cost.
