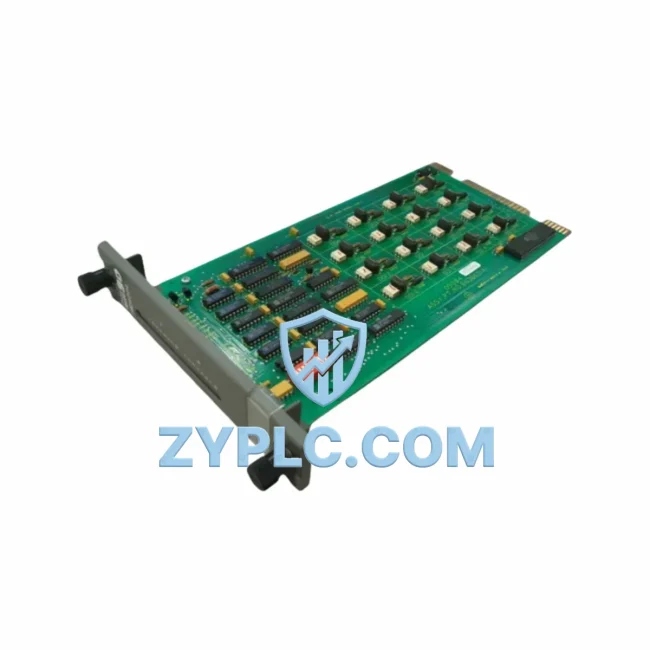

ABB IMDSO04 S800 I/O Digital Output Module | Industrial Network

ABB IMDSO04 S800 I/O Digital Output Slave Module: Industrial Data Link for Smart Factory Connectivity

The ABB IMDSO04 is a high-performance Digital Output Slave Module within the ABB S800 I/O series, engineered to deliver reliable, real-time digital signal output across distributed control architectures. Designed for seamless integration into ABB’s AC500 PLC platform and compatible SCADA/HMI environments, the IMDSO04 serves as a critical node in the industrial data chain — bridging field-level actuators, motor drives, and safety relays with upper-level control and monitoring systems. Whether deployed in discrete manufacturing, process automation, or smart factory environments, this module ensures deterministic output response, stable network communication, and full system transparency from sensor to cloud.

Network Communication Table

Connected Automation Data Flow

In a modern smart factory, the IMDSO04 operates as a downstream output node within a layered automation architecture. At the field level, digital signals originate from sensors, proximity switches, and safety interlocks. These signals are processed by the ABB AC500 CPU module — such as the PM564-TP-ETH or PM583-ETH — which executes the control logic and issues output commands via the S800 I/O bus to the IMDSO04. The module then drives actuators, solenoid valves, indicator lamps, and motor contactors with precise, low-latency switching.

Communication between the IMDSO04 and the AC500 CPU is managed through the S800 I/O bus interface, which supports high-speed cyclic data exchange. For installations requiring PROFIBUS-DP connectivity, the CI820 or CI830 communication interface modules extend the S800 I/O network to PROFIBUS master controllers, enabling the IMDSO04 to participate in broader plant-wide automation networks. Where Modbus RTU or Industrial Ethernet integration is required, the CI592-CS31 or CI501-PNIO gateway modules translate protocols seamlessly, ensuring the IMDSO04’s output data is visible across SCADA platforms such as ABB System 800xA or third-party supervisory systems.

At the HMI layer, operators interact with real-time output status through ABB CP600 series HMI panels, which display live DO channel states, alarm conditions, and diagnostic feedback sourced directly from the IMDSO04 via the AC500 PLC. For remote monitoring and diagnostics, edge gateway devices aggregate I/O data and push it to cloud-based MES or SCADA dashboards, enabling plant managers to monitor output channel health, detect wiring faults, and respond to alarms without physical site access.

In drive-integrated applications, the IMDSO04 coordinates with ABB ACS580 or ACS880 variable frequency drives, issuing run/stop and direction commands as digital output signals. This tight integration between the S800 I/O digital output layer and the drive control layer ensures synchronized motion control across conveyor systems, pump stations, and packaging lines. The TU516 terminal unit provides the physical mounting and wiring interface for the IMDSO04, simplifying installation and enabling hot-swap maintenance without disrupting adjacent I/O channels.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the inability to share real-time field-level output status with upper-level control, monitoring, and analytics systems. The ABB IMDSO04, as part of the S800 I/O ecosystem, directly addresses this challenge through its native integration with the AC500 PLC communication stack and its compatibility with multiple industrial protocols.

In legacy installations where CS31 bus or PROFIBUS-DP is the primary network, the IMDSO04 connects directly to existing infrastructure without requiring protocol conversion hardware. For greenfield smart factory deployments, the module’s compatibility with PROFINET (via CI501-PNIO) and Industrial Ethernet gateways enables full OPC-UA data exposure, making every digital output channel addressable from SCADA, MES, and cloud analytics platforms. This eliminates the data silos that traditionally separate field devices from production management systems.

Remote diagnostics are supported through the AC500 PLC’s built-in web server and remote access capabilities, allowing maintenance engineers to read IMDSO04 channel status, verify output switching times, and identify wiring faults from any networked device. Production line transparency is achieved by mapping IMDSO04 output states to SCADA trend displays and alarm management systems, giving supervisors real-time visibility into actuator states, cycle counts, and fault histories. System expansion is straightforward — additional IMDSO04 modules can be added to the S800 I/O bus without reconfiguring the network, supporting scalable automation growth as production demands increase.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB IMDSO04 support?
The IMDSO04 communicates natively over the ABB S800 I/O bus, which interfaces with the AC500 PLC CPU. Extended protocol support — including PROFIBUS-DP, PROFINET, Modbus RTU, and Industrial Ethernet — is achieved through ABB communication interface modules such as the CI820, CI501-PNIO, or CI592-CS31, enabling integration with diverse SCADA and DCS platforms.

Q2: How does the IMDSO04 ensure network stability in high-cycle industrial environments?
The S800 I/O bus architecture provides deterministic, cyclic data exchange between the IMDSO04 and the AC500 CPU, with built-in error detection and fault reporting. The module’s robust industrial design supports continuous operation in environments with electrical noise, vibration, and wide temperature ranges, ensuring stable output switching without communication dropouts.

Q3: Can the IMDSO04 be integrated into existing SCADA and HMI systems?
Yes. Through the AC500 PLC’s OPC-UA server, Modbus TCP, or PROFINET interface, all IMDSO04 output channel data is accessible to SCADA platforms including ABB System 800xA, Siemens WinCC, Ignition, and other industry-standard supervisory systems. ABB CP600 HMI panels provide local visualization with direct PLC data binding.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the IMDSO04?
Every ABB IMDSO04 unit supplied by ZYPLC is covered by a 12-month warranty and undergoes functional testing prior to shipment. Stock availability is maintained for rapid dispatch, with global DHL/FedEx logistics and full export documentation. For volume orders or urgent requirements, contact our team directly for lead time confirmation and competitive pricing.
