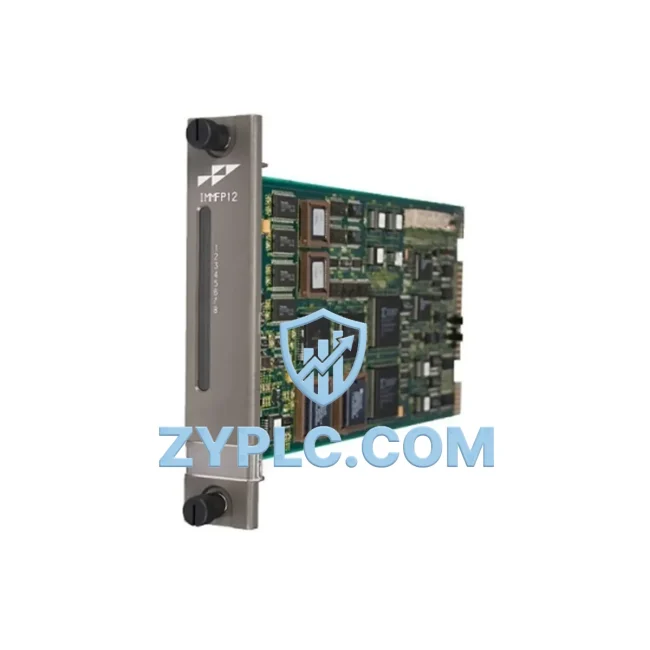

ABB IMMFP12 Multifunction Processor Module | INFI 90 DCS

ABB IMMFP12 Industrial Network Interface: Bridging the Industrial Data Link in Smart Factory Environments

The ABB IMMFP12 Multifunction Processor Module is a high-performance communication and control processor designed for the ABB INFI 90 Distributed Control System (DCS). As industrial facilities accelerate their transition toward smart manufacturing, the IMMFP12 serves as a critical node in the plant-wide data chain — connecting field instrumentation, remote I/O, PLC controllers, HMI workstations, SCADA platforms, and enterprise-level MES systems through a unified, deterministic communication architecture.

In modern industrial sites, data must flow seamlessly from the sensor level to the supervisory level without latency, packet loss, or protocol mismatch. The IMMFP12 addresses this challenge by providing robust multifunction processing capabilities that support real-time signal acquisition, protocol conversion, and network-level data routing — all within the proven INFI 90 DCS framework.

Network Communication Table

Connected Automation Data Flow

The IMMFP12 sits at the heart of the INFI 90 control architecture, orchestrating data exchange across multiple layers of the automation pyramid. At the field level, process signals from ABB HART-compatible transmitters, pressure sensors, flow meters, and temperature probes are acquired through ABB IMASI02 Analog Input Modules and IMASO01 Analog Output Modules, which feed raw process values into the IMMFP12 for real-time loop processing.

Within the INFI 90 rack, the IMMFP12 communicates with companion modules such as the ABB IMCPM02 Communication Processor Module and the ABB IMDSO14 Digital Output Module via the high-speed Nodebus backplane. This internal bus ensures sub-millisecond data latency between the processor and I/O modules, which is essential for tight PID control loops in process industries such as oil and gas, power generation, and chemical manufacturing.

For remote I/O expansion, the IMMFP12 interfaces with ABB IMRIO02 Remote I/O Controllers deployed across distributed field panels, enabling the DCS to extend its reach to equipment located hundreds of meters from the central control room. The INFI-NET plant loop — a deterministic token-passing network — carries process data, alarm states, and diagnostic information between the IMMFP12 and other INFI 90 nodes, including ABB IMMFP11 Multifunction Processor Modules in redundant configurations.

At the supervisory level, the IMMFP12 provides OPC DA server connectivity to ABB Symphony Plus SCADA and third-party HMI platforms such as Wonderware InTouch and Ignition SCADA. Operators at the HMI workstation receive live process values, setpoint confirmations, and alarm notifications with deterministic update rates, enabling real-time monitoring of critical process variables. For sites integrating variable frequency drives, the IMMFP12 can exchange speed references and fault status with ABB ACS880 Series Drives via Modbus RTU or PROFIBUS DP gateway modules, closing the loop between the DCS and motor control centers.

Edge computing nodes and industrial IoT gateways — such as those running on Moxa or Advantech platforms — can subscribe to IMMFP12 data streams via Modbus TCP/IP, forwarding aggregated process data to cloud-based analytics platforms or on-premise MES systems. This architecture supports the full IIoT data pipeline: from sensor signal acquisition through protocol conversion, network transmission, real-time monitoring, alarm feedback, and remote diagnostics — all anchored by the IMMFP12 as the central processing intelligence.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the condition where field devices, PLCs, DCS controllers, and SCADA systems operate in separate communication silos, preventing plant-wide visibility and coordinated control. The ABB IMMFP12 directly addresses this problem through its multiprotocol communication architecture and flexible network integration capabilities.

In brownfield installations where older INFI 90 nodes coexist with modern Ethernet-based systems, the IMMFP12 acts as a protocol gateway, translating INFI-NET proprietary frames into Modbus TCP/IP or OPC DA data objects that can be consumed by contemporary SCADA platforms and data historians. This eliminates the need for costly full-system replacements and allows facilities to preserve their existing DCS investment while gaining modern connectivity.

For production line transparency, the IMMFP12 enables real-time KPI dashboards by feeding live process data — including throughput rates, energy consumption, equipment status, and alarm histories — to MES and ERP systems. Plant managers gain actionable visibility into production performance without relying on manual data collection or batch reporting cycles.

Remote monitoring and diagnostics are equally critical in geographically distributed facilities such as pipeline networks, offshore platforms, and multi-site manufacturing operations. The IMMFP12 supports remote configuration and diagnostic access via the INFI 90 engineering workstation, allowing control engineers to interrogate module health, review communication statistics, and adjust control parameters without dispatching field technicians — reducing maintenance costs and minimizing unplanned downtime.

System scalability is another key advantage. As production capacity expands, additional INFI 90 nodes — including new I/O racks, remote stations, and communication modules — can be integrated into the existing IMMFP12-anchored network without architectural redesign. The modular INFI 90 platform supports incremental expansion, protecting capital investment and reducing commissioning risk for future plant extensions.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB IMMFP12 support, and is it compatible with modern SCADA systems?
The IMMFP12 natively supports INFI-NET and Nodebus communication within the INFI 90 DCS architecture. For integration with modern SCADA platforms, it provides OPC DA server connectivity and Modbus RTU/TCP/IP interfaces, making it compatible with Wonderware, Ignition, ABB Symphony Plus, and other industry-standard supervisory systems.

Q2: How does the IMMFP12 ensure network stability and minimize communication latency in critical process control applications?
The IMMFP12 uses a deterministic token-passing protocol on the INFI-NET plant loop, which guarantees bounded message delivery times regardless of network load. The Nodebus backplane provides sub-millisecond internal communication between the processor and I/O modules, ensuring that control loop execution is not affected by supervisory network traffic.

Q3: Can the IMMFP12 be used in a redundant configuration, and how does failover work?
Yes. The IMMFP12 supports redundant processor configurations within the INFI 90 system. In a redundant setup, a secondary IMMFP12 or IMMFP11 module operates in hot-standby mode, continuously synchronizing control data with the primary processor. In the event of a primary module failure, the standby module assumes control within milliseconds, ensuring uninterrupted process operation and zero data loss.

Q4: What quality assurance and warranty coverage is provided with the IMMFP12?
Every ABB IMMFP12 unit supplied by ZYPLC undergoes pre-shipment functional testing, including communication interface verification, processor self-diagnostics, and I/O channel validation. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch, with global logistics support to minimize lead times for urgent maintenance and replacement requirements.
