ABB IMRIO22 Digital Output for INFI 90

ABB IMRIO22 Digital Output for INFI 90: Compatibility and Replacement Notes

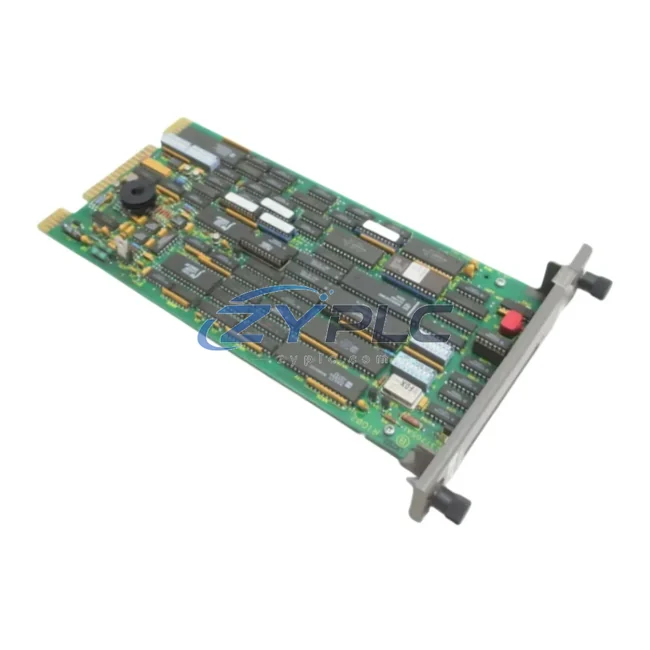

The ABB IMRIO22 is a digital output module purpose-built for the INFI 90 Distributed Control System (DCS) platform, one of the most widely deployed process automation architectures in power generation, petrochemical refining, water treatment, and heavy industrial manufacturing. Rather than functioning as a standalone component, the IMRIO22 occupies a critical position within the layered automation hierarchy — bridging the control layer decisions made by the IMMFP12 or IMCPM02 master controllers and the physical execution layer where field actuators, solenoid valves, motor starters, and relay-driven devices receive discrete switching commands. Understanding the IMRIO22 in the context of the full INFI 90 system architecture is essential for engineers responsible for system expansion, redundancy planning, and long-term maintenance strategy.

Within the INFI 90 control cabinet, the IMRIO22 is installed on the INFI 90 Module Mounting Unit (MMU), sharing the backplane bus with peer I/O modules such as the IMASI02 analog input module, the IMASO01 analog output module, and the IMDSI02 digital input module. This co-location on a common backplane ensures deterministic signal timing and eliminates the latency penalties associated with distributed I/O architectures. The module communicates upstream with the process controller via the INFI-NET or Bailey Net 90 communication network, receiving discrete output commands that are then translated into 24 VDC or relay-contact switching signals directed to field devices. This tight integration between the control layer and the I/O layer is what makes the IMRIO22 a system-consistent choice for engineers who have standardized on the ABB INFI 90 platform.

From a network layer perspective, the IMRIO22 participates in the INFI-NET token-passing communication protocol, which provides deterministic, high-reliability data exchange between controllers, I/O modules, and operator interface stations. This protocol architecture supports the integration of the INFI 90 system with higher-level supervisory platforms, including ABB’s own Conductor NT or Symphony Plus operator workstations, as well as third-party SCADA systems via OPC gateway modules. The IMRIO22’s compatibility with this communication fabric means that output commands can be traced, logged, and audited at the supervisory level — a requirement in regulated industries such as nuclear power, pharmaceutical manufacturing, and municipal water treatment.

At the power layer, the IMRIO22 draws its operating power from the INFI 90 system power supply modules, typically the IMPS02 or IMPS06 redundant power supply units. These power supply modules are designed to support N+1 redundancy configurations, ensuring that a single power supply failure does not interrupt the output switching functions of the IMRIO22 or any other module on the backplane. For critical process applications where output continuity is non-negotiable — such as emergency shutdown systems, turbine control, or boiler management — this power redundancy architecture is a fundamental design requirement, and the IMRIO22 is fully compatible with these redundant power configurations.

The human-machine interface layer of an INFI 90 system typically consists of Conductor NT operator workstations or, in modernized installations, Symphony Plus engineering and operations consoles. From these HMI platforms, operators can monitor the real-time status of each IMRIO22 output channel, issue manual override commands, and review historical output state logs. The IMRIO22 supports this supervisory visibility through its integration with the INFI-NET communication layer, providing channel-level diagnostics that are surfaced at the HMI without requiring physical access to the control cabinet. This capability significantly reduces the time required for fault isolation during process upsets and simplifies the work of maintenance engineers performing routine inspections.

For system architects planning expansions of existing INFI 90 installations, the IMRIO22 offers a straightforward path to increasing discrete output capacity without requiring changes to the controller configuration or communication network topology. Additional IMRIO22 modules can be added to available MMU slots, with the controller automatically recognizing the new I/O points through the INFI-NET node addressing scheme. This plug-and-expand capability is particularly valuable in industries where production capacity expansions are phased over time, such as mining operations adding new conveyor drives, or water treatment facilities expanding their valve and pump control infrastructure.

Product Specification Table

System Compatibility Notes

The IMRIO22 achieves its full operational value when deployed as part of a coordinated INFI 90 system architecture rather than as an isolated replacement module. In a typical INFI 90 control loop, the IMMFP12 functional processor module executes the control strategy — PID loops, sequence logic, or interlock functions — and generates discrete output commands that are routed through the INFI-NET bus to the IMRIO22. Simultaneously, the IMDSI02 digital input module feeds field status signals back to the same controller, closing the control loop and enabling the IMMFP12 to make real-time decisions based on actual field conditions.

Analog process variables — flow rates, pressures, temperatures, and levels — are handled by the IMASI02 analog input module and the IMASO01 analog output module, which work in parallel with the IMRIO22 to provide the controller with a complete picture of the process state. In applications where both analog and discrete control actions are required — such as a pump station that modulates flow via a variable frequency drive while simultaneously switching isolation valves — the IMRIO22 and IMASO01 operate as complementary output modules under the direction of the same IMMFP12 controller, ensuring synchronized execution of the control strategy.

For installations requiring communication with external systems or remote I/O panels, the INFI 90 architecture supports the IMCIS02 communication interface module, which provides gateway functionality between the INFI-NET bus and external protocols such as Modbus RTU or PROFIBUS DP. This gateway capability allows the IMRIO22’s output states to be monitored by third-party SCADA systems or asset management platforms without disrupting the native INFI-NET communication architecture. Terminal modules and marshalling panels connected to the IMRIO22 output channels are typically wired through INFI 90-compatible terminal blocks, ensuring clean signal segregation and simplified field wiring maintenance.

Industrial Application Notes

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the IMRIO22 is commonly deployed in boiler management systems, turbine auxiliary control panels, and balance-of-plant automation cabinets. Its discrete output channels control burner management sequences, auxiliary motor starters, and emergency trip relay circuits, where output reliability and deterministic switching timing are critical to plant safety and regulatory compliance.

In petrochemical and refinery applications, the IMRIO22 supports process unit control systems where discrete outputs drive solenoid-operated control valves, compressor unloading sequences, and safety interlock relay circuits. The module’s compatibility with the INFI 90 redundancy architecture — including redundant controllers and redundant power supplies — makes it suitable for Safety Instrumented System (SIS) adjacent applications where output availability must be maintained even during partial system failures.

Water and wastewater treatment facilities rely on the IMRIO22 for pump station control, chemical dosing system sequencing, and UV disinfection system management. In these applications, the module’s integration with the INFI-NET communication network allows operators at a central SCADA workstation to monitor and control discrete field devices distributed across large geographic areas, with the IMRIO22 providing the local output switching function at each remote control panel.

Mining and mineral processing operations use the IMRIO22 in conveyor control systems, crusher sequencing panels, and flotation cell automation cabinets. The module’s robust industrial design and compatibility with the INFI 90 MMU backplane make it well-suited to the high-vibration, high-dust environments typical of mineral processing facilities, where control system reliability directly impacts production throughput and operational safety.

Product Compatibility FAQ

Q1: Is the IMRIO22 compatible with both early-generation INFI 90 and later Bailey Net 90 system configurations?
Yes. The IMRIO22 is designed for the ABB INFI 90 / Bailey Net 90 DCS platform and is compatible with both early-generation INFI 90 MMU backplane configurations and later Bailey Net 90 system expansions. It communicates via the INFI-NET token-passing bus, which is consistent across both generations of the platform. Engineers integrating the IMRIO22 into an existing installation should verify the MMU slot addressing and node configuration using the INFI 90 system engineering documentation to ensure seamless system integration with the existing controller and I/O module complement.

Q2: Can the IMRIO22 be installed in a redundant output configuration, and what additional components are required?
The INFI 90 architecture supports redundant I/O configurations for critical output channels. Implementing redundant discrete outputs typically requires a redundant MMU backplane configuration, paired IMRIO22 modules assigned to redundant I/O nodes, and appropriate field wiring to redundant relay or switching circuits. The IMPS02 or IMPS06 redundant power supply modules must also be present to ensure that power supply failures do not compromise output availability. System architects should consult the INFI 90 system configuration manual for node addressing and redundancy switchover timing specifications relevant to their specific application.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty support?
All IMRIO22 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each module undergoes functional testing prior to dispatch to verify output channel switching performance, backplane communication integrity, and power consumption within specification. In the event of a warranty claim, ZYPLC provides direct technical support and module replacement coordination. For warranty inquiries, system compatibility questions, or bulk procurement requirements, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
