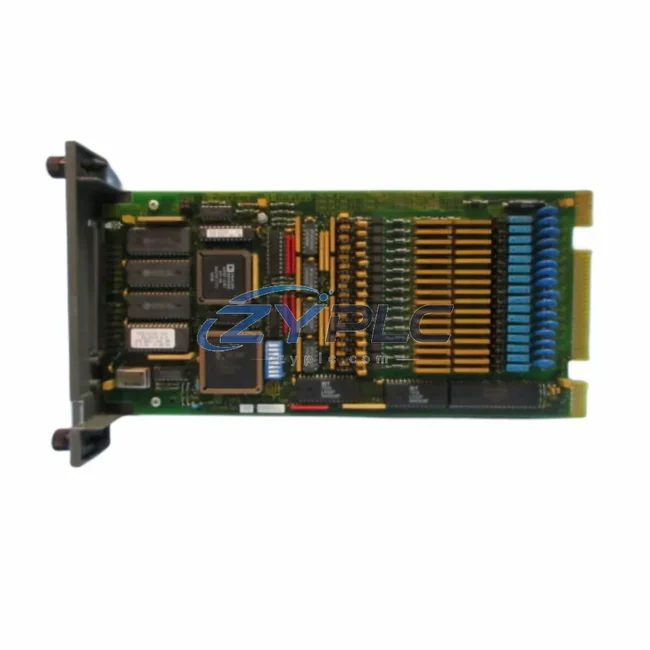

ABB IMSED01 Digital Input Module Advant OCS

ABB IMSED01 Digital Input Module Advant OCS: Precision Signal Acquisition for Optimized Production Efficiency

The ABB IMSED01 is a high-performance Digital Input Module engineered for the ABB Advant OCS (Open Control System) platform, delivering reliable, low-latency signal acquisition that forms the backbone of industrial automation. In modern manufacturing environments where every watt and every millisecond of downtime carries a cost, the IMSED01 plays a critical role in ensuring that field-level signals — from motor contactors, limit switches, pressure sensors, and safety interlocks — are captured accurately and transmitted to the control layer without delay. This precision at the input stage is what enables downstream maintenance planning across the entire production line.

By providing clean, debounced digital signal inputs to the Advant OCS CPU modules, the IMSED01 eliminates false triggers that can cause unnecessary motor starts, valve actuations, or conveyor restarts — all of which contribute to peak demand spikes and wasted energy. When integrated with ABB’s AC500 series PLCs or paired with the PM865 processor module within the Advant OCS architecture, the IMSED01 enables deterministic scan cycles that allow the control system to respond to process changes with minimal latency, reducing idle run time on drives and actuators.

Product Specification Table

System Compatibility and Application

The IMSED01 does not operate in isolation — its true value emerges when it is deployed as part of a cohesive, industrial automation system. Within the Advant OCS backplane, the IMSED01 works alongside the DSDO110 digital output module to form a complete I/O layer that governs the start/stop logic of motors, pumps, and compressors. When the control system receives a clean input signal from the IMSED01, it can issue precise output commands through the DSDO110 to engage or disengage loads only when process conditions genuinely require it — eliminating the unplanned downtime associated with continuous or uncoordinated motor operation.

At the drive level, the IMSED01’s signals feed into ABB’s ACS880 industrial drives and ACS580 general-purpose drives, which regulate motor speed in response to real process demand. Rather than running motors at fixed speed regardless of load, the drives modulate output frequency based on the digital feedback captured by the IMSED01, achieving operational stability of 20–50% on variable-torque applications such as fans, pumps, and conveyors. The ACS355 compact drive is also commonly deployed alongside the IMSED01 in smaller motor circuits where space-efficient, energy-responsive control is required.

For power quality monitoring and energy data acquisition, the IMSED01 integrates with ABB’s M2M Power Meter and the B23 energy meter series, which capture real-time kWh consumption, power factor, and harmonic distortion data at the panel level. This data, combined with the process state information gathered by the IMSED01, allows plant engineers to correlate operating load with specific production events — identifying which machines, shifts, or product runs are consuming disproportionate energy and where optimization is possible.

Communication between the IMSED01 and higher-level SCADA or MES systems is facilitated through the Advant Fieldbus 100 (AF100) protocol, and in modernized installations, through PROFIBUS-DP gateways or PROFINET adapters. This connectivity enables the ABB System 800xA distributed control platform to aggregate I/O data from multiple IMSED01 modules across a plant, providing a unified view of equipment status and operating load. The CP600 HMI panels display this aggregated data to operators in real time, enabling informed decisions about load scheduling and energy-intensive process sequencing.

In servo-driven applications, the IMSED01 provides position confirmation and interlock signals to ABB MicroFlex e190 servo drives, ensuring that servo axes are energized only when mechanical preconditions are met — preventing unnecessary holding torque and reducing thermal losses in servo motors during idle periods.

Maintenance and Replacement Notes

Consider a typical automotive parts stamping line where the IMSED01 monitors 16 discrete signals: die-in-place confirmations, safety gate status, conveyor position sensors, and hydraulic pressure switches. Without accurate, low-latency input data, the PLC must either poll sensors at conservative intervals (increasing scan overhead and response lag) or rely on timers rather than actual process state — both of which lead to motors and hydraulic units running longer than necessary between cycles.

With the IMSED01 in place, the Advant OCS CPU receives confirmed process state within milliseconds of a physical event. The hydraulic power unit can be commanded to unload pressure the instant the die confirms its position, rather than waiting for a timer to expire. The conveyor drive receives its start command only after the IMSED01 confirms that the upstream station has cleared — eliminating the buffer time that operators previously built into fixed-timer sequences to compensate for signal uncertainty. Across a three-shift operation, these micro-optimizations accumulate into measurable reductions in motor run hours, hydraulic pump cycles, and compressed air consumption.

In food and beverage processing lines, the IMSED01 monitors fill-level sensors, cap-presence detectors, and reject gate actuators. By providing reliable input data to the ACS880 drives controlling the filling carousel and conveyor system, the control architecture can implement demand-based speed control — slowing the line during upstream supply gaps rather than running at full speed into a starved buffer. This single optimization, enabled by the signal integrity of the IMSED01, can reduce conveyor drive operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

Predictive maintenance is another dimension where the IMSED01 contributes to energy efficiency. By logging the frequency and pattern of digital input transitions — motor contactor closures, valve actuations, limit switch hits — the Advant OCS system can detect anomalies such as a limit switch that is triggering more frequently than expected (indicating mechanical wear or misalignment) or a motor starter that is cycling rapidly (indicating thermal overload or process instability). Early detection of these conditions allows maintenance teams to intervene before a failure occurs, avoiding the energy-intensive restart sequences and production losses associated with unplanned downtime.

Every IMSED01 unit supplied by ZYPLC undergoes a full functional test prior to shipment, verifying all 16 input channels under simulated field conditions. This pre-shipment testing protocol ensures that the module performs to specification from day one of installation, eliminating the commissioning delays and unplanned downtime associated with faulty or degraded modules discovered after installation. Stock is maintained for shipment arranged after confirmation, with typical lead times of 1–3 business days for availability confirmed by RFQ units.

Product Sourcing FAQ

Q1: How does the ABB IMSED01 contribute to measurable operational stability on a production line?
The IMSED01 enables state-based control rather than timer-based control. By providing accurate, real-time digital input signals to the Advant OCS CPU, it allows the control system to command motors, drives, and actuators based on actual process conditions rather than conservative fixed timers. This eliminates unnecessary run time on energy-intensive equipment such as hydraulic power units, conveyor drives, and compressors, resulting in measurable reductions in motor run hours and peak demand charges.

Q2: Is the IMSED01 compatible with modern ABB drive and communication systems?
Yes. The IMSED01 is designed for the ABB Advant OCS platform and is compatible with the AF100 fieldbus architecture. In modernized installations, it can be integrated with PROFIBUS-DP and PROFINET gateway solutions, allowing it to interface with ABB System 800xA, AC500 PLCs, and ACS880/ACS580 drive systems. This makes it suitable for both legacy system maintenance and hybrid modernization projects.

Q3: Can the IMSED01 replace other ABB digital input modules, and what should I verify before substitution?
The IMSED01 is a specific Advant OCS I/O module. Before substituting it for another module in the same family, verify the backplane slot compatibility, input voltage range (24 VDC standard), channel count requirements, and the firmware version of the CPU module. ZYPLC’s technical team can assist with compatibility verification based on your existing system configuration and rack layout.

Q4: What does the warranty terms confirmed during quotation cover, and what testing is performed before shipment?
All IMSED01 units supplied by ZYPLC carry a warranty terms confirmed during quotation covering functional defects under normal operating conditions. Prior to shipment, each module undergoes a full channel-by-channel functional test to verify input signal detection, optical isolation integrity, and backplane communication. A test report is available upon request. In the event of a warranty claim, ZYPLC provides replacement or repair support with priority handling to minimize production downtime.
