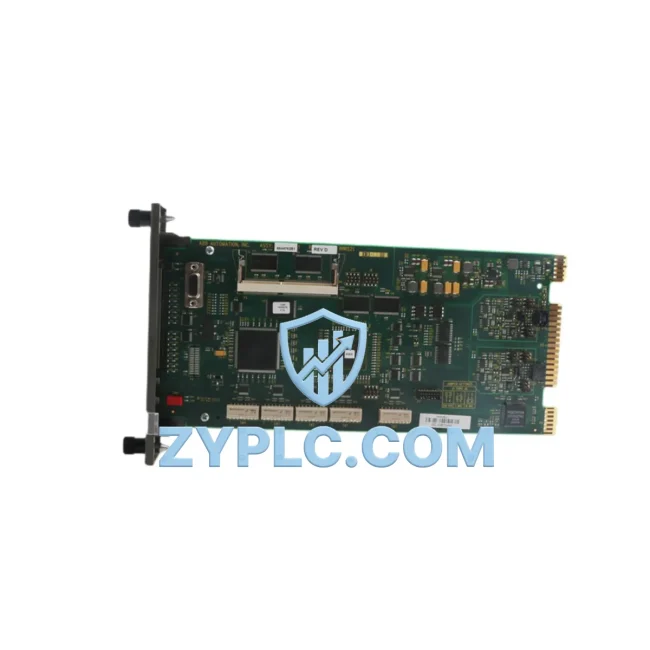

ABB INNIS21 PROFIBUS Network Interface for AC500 Systems

ABB INNIS21 PROFIBUS Network Interface for AC500 Systems: Industrial Data Link and Smart Factory Connectivity

The ABB INNIS21 is a PROFIBUS DP network interface slave module engineered for seamless integration within ABB AC500 PLC-based automation architectures. Designed to bridge field-level devices with supervisory control systems, the INNIS21 enables deterministic, high-speed data exchange across complex industrial networks — making it a critical component in smart factory deployments where real-time visibility, protocol interoperability, and system scalability are non-negotiable.

In modern industrial environments, the data journey begins at the sensor level. Field instruments — pressure transmitters, flow meters, temperature sensors, and proximity switches — generate continuous process signals that must be reliably captured, converted, and transmitted upstream. The INNIS21 acts as the PROFIBUS DP slave interface for the AC500 CPU modules (such as the PM573, PM583, or PM595), allowing the PLC to participate as a slave node on a PROFIBUS DP master network. This architecture is particularly valuable when integrating ABB AC500 controllers into third-party PROFIBUS master environments, including Siemens S7-300/S7-400 systems, Schneider Quantum PLCs, or distributed control systems (DCS) from Emerson and Honeywell.

Once the INNIS21 is installed in the AC500 backplane alongside communication modules such as the CI590-CS31-HA or CI501-PNIO PROFINET adapter, the PLC’s process data — including analog I/O values, digital status bits, diagnostic flags, and control outputs — becomes immediately accessible to the PROFIBUS DP master. This data is then forwarded to SCADA platforms (such as ABB System 800xA, Wonderware InTouch, or Ignition by Inductive Automation) and HMI terminals for real-time monitoring, alarm management, and operator interaction.

Network Communication Table

Connected Automation Data Flow

The INNIS21’s role in the automation data chain extends well beyond simple protocol conversion. In a typical smart factory deployment, the AC500 PLC — equipped with the INNIS21 slave interface — sits at the heart of a multi-layer network topology. At the field level, remote I/O stations such as the ABB S500 I/O modules (including DC532, AI523, and AO523 analog modules) collect process data from sensors and actuators distributed across the production floor. This data is aggregated by the AC500 CPU and made available on the PROFIBUS DP network via the INNIS21.

Upstream, a PROFIBUS DP master — which may be a dedicated gateway device, a DCS controller, or another PLC acting as master — polls the INNIS21 at cyclic intervals, retrieving process images that reflect the real-time state of the controlled equipment. Variable frequency drives (VFDs) such as the ABB ACS880 or ACS580 series, which themselves support PROFIBUS DP communication, can be coordinated within the same network segment, allowing the master system to read drive speed feedback, torque values, and fault codes alongside the AC500’s I/O data.

For facilities running mixed-protocol environments, the INNIS21 pairs effectively with protocol gateway devices — for example, an HMS Anybus Communicator or a Moxa MGate series gateway — that bridge PROFIBUS DP to Modbus TCP, EtherNet/IP, or OPC UA, enabling legacy field devices to participate in IIoT data pipelines feeding cloud analytics platforms or MES systems. Edge computing nodes, such as the ABB Edge Controller or a Siemens SIMATIC IPC, can subscribe to this data stream for local pre-processing, anomaly detection, and predictive maintenance algorithms before forwarding aggregated insights to enterprise-level systems.

HMI panels — including ABB CP600 series operator panels or third-party Weintek and Proface terminals — connected to the SCADA layer receive live process values sourced from the INNIS21-enabled AC500 node, displaying real-time trends, setpoint controls, and alarm histories to plant operators. This end-to-end data flow — from sensor signal through PROFIBUS DP slave interface, across the network to SCADA, and up to MES/ERP — is what defines the INNIS21’s value in a connected industrial site.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate in silos, unable to share process information efficiently. The ABB INNIS21 directly addresses this challenge by enabling AC500 PLC systems to participate as fully compliant PROFIBUS DP slave nodes, eliminating the need for custom wiring solutions or proprietary communication workarounds.

In brownfield installations where legacy PROFIBUS DP master infrastructure already exists, the INNIS21 allows new AC500 controllers to be integrated without replacing the master network architecture. This dramatically reduces retrofit costs and project timelines. The module’s support for GSD (General Station Description) files ensures plug-and-play compatibility with standard PROFIBUS configuration tools such as Siemens STEP 7, TIA Portal, or ABB’s own Automation Builder engineering environment.

For production line transparency, the INNIS21 enables continuous cyclic data exchange between the AC500 and the master system, ensuring that process variables — machine states, cycle counts, energy consumption data, and fault diagnostics — are always current in the SCADA historian. This real-time data availability supports OEE (Overall Equipment Effectiveness) calculations, shift reporting, and root-cause analysis without manual data collection.

Remote diagnostics capabilities are equally important. Through the PROFIBUS DP V1 acyclic communication channel supported by the INNIS21, maintenance engineers can read extended diagnostic data from the AC500 node remotely — identifying communication errors, module faults, or configuration mismatches without physical access to the control cabinet. This capability is essential for multi-site operations where on-site intervention is costly and time-consuming.

System scalability is another key advantage. As production capacity grows, additional AC500 nodes equipped with INNIS21 modules can be added to the PROFIBUS DP network without architectural changes, supporting up to 126 nodes per segment with repeaters. This modular expansion model aligns with the phased investment strategies common in smart factory roadmaps.

Every INNIS21 unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying PROFIBUS DP communication establishment, cyclic data exchange integrity, and module identification. Units are shipped with a 12-month warranty covering manufacturing defects and communication failures, backed by responsive technical support for integration assistance.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS DP transmission speed supported by the INNIS21?
The INNIS21 supports PROFIBUS DP transmission speeds from 9.6 kbit/s up to 12 Mbit/s, automatically adapting to the baud rate set by the PROFIBUS DP master. Higher baud rates reduce cycle times and are recommended for time-critical process control applications.

Q2: Is the INNIS21 compatible with third-party PROFIBUS DP masters outside the ABB ecosystem?
Yes. The INNIS21 is a standard PROFIBUS DP V0/V1 compliant slave device and provides a GSD file for configuration in any PROFIBUS-compliant master engineering tool, including Siemens TIA Portal, Schneider Unity Pro, and Rockwell RSNetWorx. Protocol compliance ensures interoperability across multi-vendor network architectures.

Q3: How does the INNIS21 support network stability in high-noise industrial environments?
The INNIS21 is designed to operate within the AC500’s industrial-grade backplane, which provides EMC shielding and stable power distribution. PROFIBUS DP’s RS-485 physical layer offers inherent noise immunity, and the module supports standard PROFIBUS termination and shielding practices to maintain signal integrity in environments with heavy electrical interference from VFDs, welding equipment, and high-voltage switchgear.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the INNIS21?
All INNIS21 units are covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including PROFIBUS DP communication establishment and cyclic data exchange testing. ZYPLC maintains in-stock inventory for immediate dispatch via DHL or FedEx Express, with typical delivery times of 3–7 business days globally.
