ABB INSEM01 Industrial Network Interface for Symphony Plus Systems

ABB INSEM01 Industrial Network Interface for Symphony Plus Systems: Precision Data Links for Smart Factory Automation

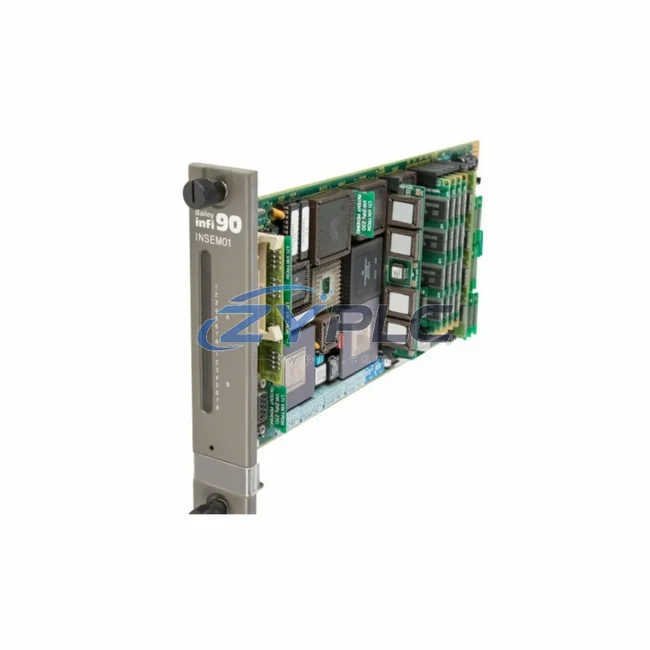

The ABB INSEM01 Sequence of Events (SOE) Master Module is a high-integrity communication and event-sequencing component engineered for ABB’s Symphony Plus Distributed Control System (DCS) platform. Designed to operate at the intersection of field instrumentation, PLC controllers, remote I/O networks, and supervisory SCADA systems, the INSEM01 delivers microsecond-accurate timestamping and structured data flow across complex industrial network architectures. Whether deployed in power generation, oil and gas processing, chemical manufacturing, or water treatment facilities, this module serves as a critical node in the plant-wide data chain — capturing, sequencing, and transmitting event records with the reliability that mission-critical operations demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated Symphony Plus environment, the INSEM01 functions as the master coordinator for event data flowing from distributed field devices up through the control hierarchy. At the field level, process sensors and transmitters — including pressure, temperature, and flow instruments — generate discrete and analog signals that are collected by remote I/O modules such as the INNIS21 network interface module. These signals are passed along the Symphony Plus communication bus, where the INSEM01 captures and timestamps each event with microsecond precision before forwarding structured records to the DCS controller layer.

Within the controller network, the INSEM01 works in close coordination with function controller modules like the IMFEC12 and multi-function processor modules such as the IMMPI01, which handle real-time process logic and closed-loop control. The SOE data stream generated by the INSEM01 is simultaneously available to the IMASI23 analog signal input module and the IMDSM04 digital status module, enabling cross-referenced event correlation across both analog and digital process variables.

For protocol conversion and gateway functions, the INSEM01 interfaces with communication bridge modules including the INTKM01 token ring communication module and the INLIM03 local interface module, which translate Symphony Plus native data into formats compatible with Modbus TCP, IEC 61850, and OPC UA — enabling seamless upstream connectivity to SCADA platforms, historian servers, and enterprise MES systems. At the HMI layer, operators interact with real-time SOE data through Symphony Plus operator stations, where alarm sequences, trip events, and process deviations are displayed with full timestamp traceability.

For drive and motor control integration, the INSEM01 data chain extends to variable frequency drives (VFDs) and motor protection relays connected via serial communication modules such as the IMSER01, ensuring that drive fault events and status changes are captured in the SOE log alongside process alarms. Edge gateway devices further aggregate this data for cloud-based analytics and remote diagnostics, completing a fully transparent data pipeline from sensor to enterprise.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is data isolation — where field devices, PLCs, DCS controllers, and SCADA systems operate in separate protocol silos, making it impossible to correlate events across the plant in real time. The ABB INSEM01 directly addresses this problem by acting as the SOE master node within the Symphony Plus architecture, providing a single, authoritative source of timestamped event data that can be shared across all connected systems.

When a process trip or alarm occurs, the INSEM01 captures the precise sequence of events — down to the microsecond — and makes this data immediately available to SCADA operators, DCS engineers, and remote diagnostic teams simultaneously. This eliminates the ambiguity that arises when different systems record events with inconsistent timestamps, enabling root cause analysis to be completed in minutes rather than hours.

For plants undergoing digital transformation, the INSEM01 supports system expansion without requiring wholesale infrastructure replacement. New remote I/O nodes, additional communication modules, and upgraded HMI stations can be integrated into the existing Symphony Plus network while the INSEM01 continues to provide centralized event management. This scalability makes it an ideal component for phased smart factory upgrades, where production transparency and real-time monitoring must be maintained throughout the transition.

Remote diagnostics capabilities are further enhanced by the INSEM01’s structured data output, which allows maintenance teams to monitor module health, communication status, and event buffer utilization from centralized engineering workstations or remote access terminals — reducing unplanned downtime and enabling predictive maintenance strategies across the plant network.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB INSEM01 support, and is it compatible with third-party SCADA systems?
The INSEM01 operates natively on the Symphony Plus DCS communication bus and supports gateway connectivity to Modbus RTU/TCP, IEC 61850, and OPC DA/UA protocols through compatible interface modules. This makes it compatible with leading SCADA platforms including ABB System 800xA, Wonderware, and Ignition, as well as third-party historian and MES systems.

Q2: How does the INSEM01 ensure network stability and minimize communication latency in high-event-rate environments?
The INSEM01 is designed for deterministic, low-latency event capture with microsecond-resolution timestamping. Its buffered event architecture ensures that no events are lost during network congestion or controller processing peaks, maintaining data integrity even during high-frequency alarm storms or process upsets.

Q3: Can the INSEM01 be integrated into an existing Symphony Plus system without disrupting ongoing production?
Yes. The INSEM01 is designed for hot-swap-compatible installation within the Symphony Plus backplane architecture, allowing module replacement or addition with minimal process interruption. System expansion using additional SOE nodes or communication modules can be performed during scheduled maintenance windows without requiring full system shutdown.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every ABB INSEM01 unit supplied by ZYPLC undergoes full functional testing prior to shipment, including communication bus verification, event timestamping accuracy checks, and protocol gateway validation. The warranty terms confirmed during quotation covers hardware defects and communication failures under normal operating conditions, with direct technical support available throughout the warranty period.
