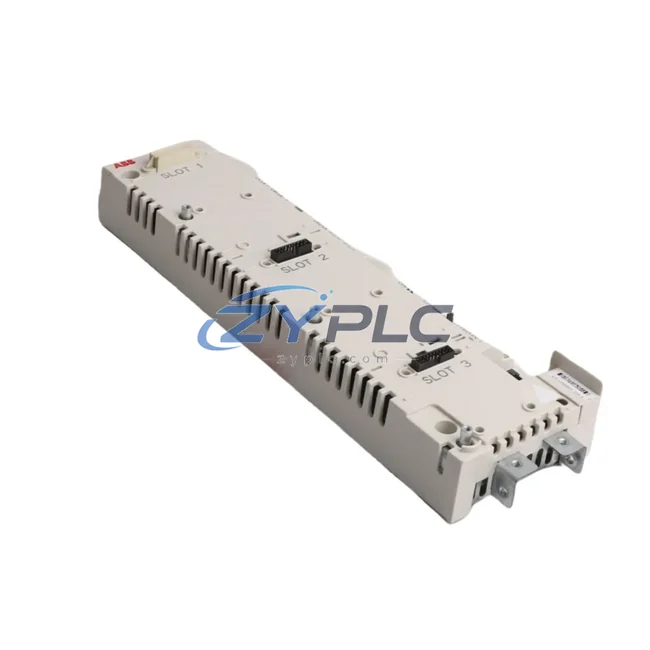

ABB JCU-01 Junction Control Unit for Freelance

ABB JCU-01 Junction Control Unit for Freelance

The ABB JCU-01 is a critical junction control unit designed for seamless integration within the ABB Freelance DCS (Distributed Control System) platform. Serving as the communication backbone between field-level I/O modules and the central processing layer, the JCU-01 ensures reliable signal routing, system-wide data consistency, and streamlined diagnostic access across every node in a Freelance-based automation architecture. Whether deployed in greenfield installations or retrofitted into legacy process environments, this module delivers the connectivity and deterministic performance that modern layered control systems demand.

Within a complete Freelance control architecture, the JCU-01 occupies a pivotal position at the junction between the controller tier and the distributed I/O tier. It manages high-speed data exchange between the ABB AC 900F controller and a range of field I/O modules such as the ABB AI895 analog input module and the ABB AO895 analog output module. This architecture enables process engineers to scale I/O capacity without redesigning the communication backbone, supporting both incremental expansion and full-system upgrades. The deterministic communication protocol native to the Freelance platform ensures that every signal — from 4–20 mA analog loops to discrete binary status points — is transmitted with minimal latency and maximum integrity.

Power distribution within the Freelance rack is handled by dedicated supply modules such as the ABB SS832 power supply unit, which provides regulated DC voltage to the JCU-01 and all connected I/O cards. Redundant power configurations are supported, allowing engineers to implement N+1 or parallel supply schemes that protect against single-point-of-failure scenarios in mission-critical process plants. The JCU-01 itself is designed for hot-swap capability, meaning maintenance teams can replace or upgrade the unit without shutting down the entire control loop — a feature that significantly reduces mean time to repair (MTTR) and supports continuous production targets.

On the network communication layer, the JCU-01 interfaces with the Freelance system bus, enabling transparent data flow to supervisory stations, engineering workstations, and historian servers. When paired with the ABB CI867 Modbus TCP interface or the ABB CI868 PROFINET communication module, the Freelance architecture can bridge to third-party PLCs, SCADA systems, and enterprise-level MES/ERP platforms. This system integration capability makes the JCU-01 an essential enabler for multi-vendor plant environments where interoperability is a core engineering requirement.

Signal integrity and electromagnetic compatibility are engineered into the JCU-01 at the hardware level. The module features galvanic isolation on critical communication channels, robust grounding provisions, and compliance with IEC 61131 and IEC 61000 standards for industrial electromagnetic environments. These design choices ensure stable operation in electrically noisy settings — such as those found near variable frequency drives, high-voltage switchgear, and arc furnace installations — where lesser junction modules might experience data corruption or communication dropouts.

From a system engineering perspective, the JCU-01 simplifies commissioning and ongoing maintenance. ABB’s Freelance engineering tool, Control Builder F, provides a unified environment for configuring the JCU-01 alongside all other system components, including the ABB DO895 digital output module and the ABB DI895 digital input module. Diagnostic data from the JCU-01 — including module health, communication error counters, and bus load statistics — is accessible in real time through the engineering workstation, enabling predictive maintenance strategies that reduce unplanned downtime.

Terminal connectivity and physical installation follow ABB’s standardized DIN-rail and rack-mount conventions, ensuring compatibility with existing Freelance backplanes such as the ABB TU846 terminal unit. This mechanical interoperability means that the JCU-01 can be deployed in existing control cabinets without custom fabrication, reducing project lead times and installation costs. Cable management is further simplified by the module’s clearly labeled terminal assignments and spring-loaded or screw-type connectors, which accommodate a wide range of field wiring practices.

For industries operating under strict regulatory and safety frameworks — including oil and gas, petrochemical, pharmaceutical, power generation, water treatment, and mining — the JCU-01 provides the traceability and documentation support required for compliance audits. Every module shipped by ZYPLC includes full factory test records, and our technical team can assist with integration documentation, loop check procedures, and system acceptance test (SAT) planning.

ZYPLC maintains ready stock of the ABB JCU-01 and a comprehensive inventory of compatible Freelance DCS components. Every unit is covered by our warranty terms confirmed during quotation, backed by professional technical support and global shipping logistics. Whether you are expanding an existing Freelance system, replacing an end-of-life module, or building a new process control platform from the ground up, the JCU-01 delivers the junction-level reliability and system integration that your architecture demands.

Product Specification Table

System Compatibility Notes

The ABB JCU-01 functions as the linchpin in a coordinated Freelance DCS deployment. At the controller level, the AC 900F executes process logic and regulatory control algorithms, relying on the JCU-01 to relay real-time field data from distributed I/O stations. Analog input modules like the AI895 capture process variables — temperature, pressure, flow, and level — while analog output modules such as the AO895 drive control valves, dampers, and variable-speed pump commands. Discrete I/O is managed through the DI895 and DO895 modules, handling binary signals from limit switches, solenoid valves, and motor starters.

Communication gateways including the CI867 (Modbus TCP) and CI868 (PROFINET) extend the reach of the Freelance architecture into heterogeneous plant networks, enabling data exchange with third-party PLCs operating in adjacent process units. The TU846 terminal unit provides the physical backplane connection, while the SS832 power supply ensures stable, redundancy-capable DC distribution to every module in the rack. This tightly coordinated design — with the JCU-01 at its center — delivers the deterministic performance, fault tolerance, and scalability that complex process plants require.

Industrial Application Notes

In layered automation architectures, the ABB JCU-01 bridges the gap between field instrumentation and supervisory control. In petrochemical plants, it supports continuous process monitoring across distillation columns, reactor vessels, and heat exchanger networks, where millisecond-level communication reliability directly impacts product quality and safety. In power generation facilities, the JCU-01 enables coordinated boiler-turbine control by linking combustion I/O, steam temperature sensors, and generator protection relays to the central Freelance controller.

Water and wastewater treatment plants benefit from the JCU-01’s ability to aggregate signals from distributed pump stations, chemical dosing systems, and flow measurement points into a unified control view. In mining and metallurgical operations, the module withstands harsh electrical environments while maintaining communication integrity between grinding mill controllers, conveyor drive systems, and ore processing instrumentation. Pharmaceutical and food processing facilities leverage the JCU-01’s traceability and diagnostic capabilities to meet IEC 62443 cybersecurity requirements, ensuring that every control action is logged, auditable, and secure.

Product Compatibility FAQ

Q1: Can the ABB JCU-01 be integrated into an existing Freelance 800F system without a full system shutdown?
A1: Yes. The JCU-01 supports hot-swap installation, allowing maintenance personnel to insert or replace the module while the Freelance system remains operational. The AC 900F controller automatically recognizes the new module and restores communication with connected I/O cards, minimizing process disruption.

Q2: What companion modules are recommended for a complete Freelance I/O station built around the JCU-01?
A2: A typical Freelance I/O station includes the JCU-01 as the junction interface, an SS832 power supply, a TU846 terminal unit, and a combination of AI895, AO895, DI895, and DO895 I/O modules selected based on the process signal requirements. Communication gateways such as the CI867 or CI868 can be added for multi-protocol connectivity.

Q3: Does ZYPLC provide warranty and technical support for the ABB JCU-01?
A3: Every ABB JCU-01 purchased from ZYPLC is backed by a warranty terms confirmed during quotation covering manufacturing defects and functional failures. Our technical team provides pre-sales consultation, integration guidance, and post-sales support including commissioning assistance and spare parts sourcing for the entire Freelance DCS platform.
