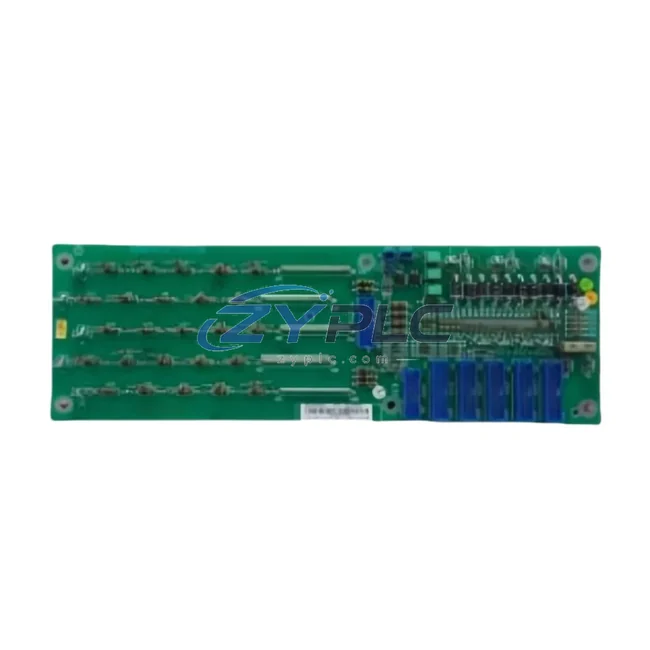

ABB LD-LPTR-01 Pulse Transformer LD Series

ABB LD-LPTR-01 Pulse Transformer LD Series: Replacement and Sourcing Information

The ABB LD-LPTR-01 is a high-efficiency pulse transformer module engineered for the ABB LD Series drive platform. Designed to minimize switching losses and deliver clean, precisely shaped gate pulses to IGBT power stages, the LD-LPTR-01 plays a critical role in reducing unnecessary energy dissipation across the drive’s power conversion chain. In modern manufacturing environments where equipment uptime and replacement lead time directly affect production continuity, this component enables tighter control over switching transitions, contributing to measurable improvements in overall drive efficiency and motor performance.

Unlike generic transformer modules, the LD-LPTR-01 is factory-calibrated for the ABB LD Series architecture, ensuring electrical compatibility with the drive’s gate driver boards and IGBT modules. This precision alignment reduces the risk of false triggering, gate voltage overshoot, and thermal stress — all of which are common sources of unplanned downtime and elevated operating load in high-cycle industrial applications.

Product Specification Table

System Compatibility and Application

The LD-LPTR-01 does not operate in isolation — it is one precision link in a broader maintenance-focused automation chain. In a typical LD Series drive installation, the pulse transformer works in concert with the ABB LD-LDINT-01 gate driver interface board, which conditions and routes gate signals from the drive’s control board to the IGBT power modules. The quality of the pulse delivered by the LD-LPTR-01 directly determines how cleanly the ABB LD Series IGBT power module stack switches, which in turn governs the efficiency of energy conversion from the DC bus to the motor terminals.

At the control layer, the ABB ACS880 series drive control unit or compatible LD Series main control board generates the PWM reference signals that the LD-LPTR-01 ultimately transforms and isolates. When the pulse transformer maintains signal integrity across the isolation barrier, the drive’s direct torque control (DTC) algorithm can execute motor flux and torque commands with greater accuracy — reducing reactive current draw and improving the power factor of the connected motor system.

For condition monitoring and reporting, facilities integrating the LD Series drive into a broader maintenance planning system often pair it with ABB B23 or B24 series energy meters, which capture real-time kWh consumption data at the drive input. This data feeds into ABB Ability™ Energy Manager or third-party SCADA platforms via Modbus RTU or PROFIBUS DP communication modules — such as the ABB RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter — enabling plant engineers to correlate drive operating points with actual operating load trends.

On the I/O and feedback side, the LD Series drive typically interfaces with ABB AC500 series PLC I/O modules for process interlocking and speed reference management. The PLC reads encoder feedback, process sensors, and production line speed signals, then issues setpoint commands to the drive over a fieldbus or analog reference channel. When the LD-LPTR-01 ensures clean gate switching, the drive responds to these setpoint changes with minimal overshoot and faster settling — directly improving production line cycle time and reducing unplanned downtimed during acceleration and deceleration transients.

For HMI visualization, operators monitoring motor load, drive output frequency, and energy KPIs typically use ABB CP600 series HMI panels connected to the AC500 PLC, providing real-time visibility into drive performance and operating load without requiring separate instrumentation.

Maintenance and Replacement Notes

In continuous process industries — such as water treatment, HVAC, compressor stations, and conveyor-driven assembly lines — the ABB LD Series drive is frequently deployed to replace fixed-speed motor starters. The operational stability from variable speed operation are well established, but the efficiency of the drive itself matters significantly at scale. A pulse transformer that introduces signal distortion or timing jitter into the gate drive circuit forces the IGBT modules to operate with suboptimal switching waveforms, increasing switching losses and generating excess heat that the drive’s cooling system must dissipate.

By maintaining the electrical integrity of gate pulses, the LD-LPTR-01 helps the drive sustain its rated efficiency across a wide load range. In pump and fan applications running at partial load — which represents the majority of operating hours in most facilities — this translates to lower input power draw for a given hydraulic or aerodynamic output. Over a full production year, the cumulative operational stability from reduced switching losses and improved PWM fidelity can be significant, particularly in multi-drive installations where dozens of LD Series units operate simultaneously.

From a maintenance perspective, a degraded or failed pulse transformer is a common root cause of intermittent drive faults, IGBT overcurrent trips, and unexplained thermal shutdowns. Replacing a worn LD-LPTR-01 with a tested OEM unit restores the drive’s original switching performance, eliminates fault-related production stoppages, and extends the service life of the IGBT power modules — which are significantly more expensive to replace. Predictive maintenance programs that include periodic inspection of gate driver components, including the pulse transformer, consistently report lower unplanned downtime rates compared to reactive maintenance strategies.

All units supplied by ZYPLC are drawn from verified inventory, subjected to full electrical testing prior to shipment, and covered by a warranty terms confirmed during quotation. This ensures that replacement components perform to OEM specification from the moment they are installed, with no risk of introducing new faults into a production-critical drive system.

Product Sourcing FAQ

Q1: How does replacing the LD-LPTR-01 pulse transformer improve drive energy efficiency?
A degraded pulse transformer introduces timing errors and signal distortion into the IGBT gate drive circuit, causing the power switches to operate with slower or asymmetric switching transitions. This increases switching losses — energy dissipated as heat during each on/off cycle. Replacing the LD-LPTR-01 with a tested OEM unit restores clean, precisely timed gate pulses, allowing the IGBT modules to switch at their designed efficiency point and reducing unnecessary energy dissipation across the drive’s power stage.

Q2: Is the ABB LD-LPTR-01 compatible with all LD Series drive variants?
The LD-LPTR-01 is designed for the ABB LD Series drive platform. Compatibility depends on the specific drive frame size and gate driver board revision. We recommend verifying the part number against your drive’s service documentation or contacting our technical team with your drive’s full model number before ordering. Our team can confirm fitment and, where applicable, identify equivalent or upgraded replacement options within the ABB LD Series component range.

Q3: What is the recommended replacement interval, and how is the component tested before shipment?
ABB does not publish a fixed replacement interval for the LD-LPTR-01 under normal operating conditions, as service life depends on thermal cycling, ambient conditions, and drive load profile. However, it is recommended for inspection whenever the drive exhibits unexplained IGBT overcurrent faults, gate driver alarms, or elevated thermal readings. Every LD-LPTR-01 unit supplied by ZYPLC undergoes full electrical testing — including insulation resistance, turns ratio verification, and pulse response characterization — before dispatch, and is covered by a warranty terms confirmed during quotation from the date of shipment.

Q4: Can this component be used in a system undergoing energy efficiency upgrades or ISO 50001 compliance projects?
Yes. Restoring drive components to OEM specification is a recognized element of industrial energy efficiency programs. A properly functioning pulse transformer ensures the drive operates at its rated efficiency, which is a prerequisite for accurate energy baseline measurement and for demonstrating efficiency improvements under frameworks such as ISO 50001. When combined with energy metering at the drive input and output data logging via the drive’s fieldbus interface, the LD-LPTR-01 replacement contributes to a verifiable improvement in the drive system’s energy performance indicators.
